ATEN 2-Port USB 3.0 4K DisplayPort Dual Display KVMP Switch-TAA Compliant
- One USB keyboard and mouse controls two DisplayPort computers and share two USB peripherals
- Supports Quad Display by connecting two Dual Display KVM switches
- Supports superior video quality - Up to 4K (4096 x 2160 / 3840 x 2160 @ 60 Hz)
- Computer Selection via front panel, hotkeys, mouse, and RS-232 commands
Product Description
ATEN 2-Port USB 3.0 4K DisplayPort Dual Display KVMP Switch-TAA Compliant - The ATEN CS1942DP desktop KVM switch helps organize your desktop. Especially when managing a multimedia workstation at a large organization, CS1942DP provides you with instant access to two or four computers, all through a single USB keyboard, USB mouse and two DisplayPort monitors.
Advanced video support provides a better-defined DisplayPort connection with video resolutions up to 4K (4096 x 2160 / 3840 x 2160 @ 60 Hz). Incorporating dual display capability, you are allowed to enjoy a wider screen and easily switch between two or four DisplayPort systems. In addition, featuring a built-in USB 3.1 Gen 1 hub, the CS1942DP delivers unprecedented data transfer rates up to 5 Gbps, allowing you to maximize multimedia operations.
Engineered to meet the ever-increasing demand for dual display, ultra-fast data transmission rates, and lossless 4K video resolution, the CS1942DP is specifically designed for where multitasking is needed such as design, financial trading, and video post production.
More from the Manufacturer
- One USB keyboard and mouse controls two DisplayPort computers and share two USB peripherals
- Supports Quad Display by connecting two Dual Display KVM switches
- Supports superior video quality - Up to 4K (4096 x 2160 / 3840 x 2160 @ 60 Hz)
- Computer Selection via front panel, hotkeys, mouse, and RS-232 commands
- 2- Port USB 3.1 Gen 1 hub with SuperSpeed 5 Gbps data transfer rates
- Supports DisplayPort Dual-Mode technology (DP++)*
- Supports MST (Multi-Stream Transport)
- Supports Console keyboard emulation / bypass feature
- Supports Console mouse emulation / bypass feature
- Independent switching of KVM, USB, and Audio
- Switch between sources by using this KVM Switchbox without degradation of performance and eliminate the manual work
- Connect up to 2 computers to 1 local users
- Get high-resolution video with impressive clarity, thanks to the 4096 x 2160 resolution.
- Unhindered connections with USB-compatible devices are ensured by the built-in USB port.
- The Rack-mountable form factor allocates you simple and easy installation for your kvm switchbox
Product Specifications
-
Brand NameATEN
-
Country of OriginTaiwan
-
Depth13.2"
-
DisplayPortYes
-
Environmentally FriendlyYes
-
Form FactorRack-mountable
-
Height1.7"
-
Input Voltage12 V DC
-
Input Voltage Range12V DC
-
Limited Warranty2 Year
-
Manufacturer Part NumberCS1942DP
-
Maximum Video Resolution4096 x 2160
-
Network (RJ-45)Yes
-
Number of Computers Supported2
-
Number of DisplayPorts6
-
Number of Local Users Supported1
-
Number of Network (RJ-45) Ports1
-
Number of USB Ports6
-

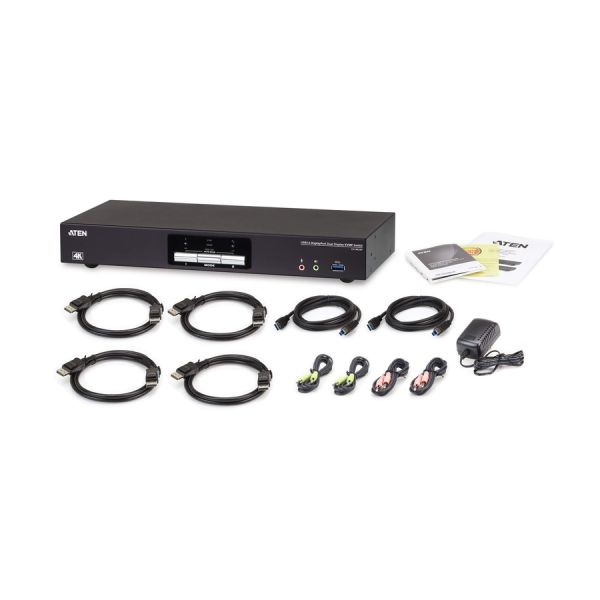

Package Contents2-Port USB 3.0 4K DisplayPort Dual Display KVMP Switch 4 x DisplayPort 1.2 Cables 2 x USB 3.0 Cables 4 x Audio Cables 1 x Power Adapter 1 x User Instructions
-
Product ModelCS1942DP
-
Product Name2-Port USB 3.0 4K DisplayPort Dual Display KVMP Switch
-
Product TypeKVM Switchbox
-
USBYes
-
Width6.2"
