ATEN 2-Port USB 3.0 4K DisplayPort MST KVMP Switch (Cables Included)-TAA Compliant
Product #:
SYNX5256803
Product Description
ATEN 2-Port USB 3.0 4K DisplayPort MST KVMP Switch (Cables Included)-TAA Compliant
2 Computer(s) - 1 Local User(s) - 4096 x 2160 - 6 x USB - 1 x HDMI - 3 x DisplayPort - Desktop
Incorporating the latest Multi-Stream Transport (MST) technology, the CS1922M 2-Port USB 3.0 4K DisplayPort MST KVMP Switch is the world's first DisplayPort KVM switch with a built-in MST hub. The CS1922M enables users to adopt two console displays from a single DisplayPort 1.2 video source, providing an extended desktop mode and splitter mode at resolutions up to 4K for multitasking across two displays while reducing bulky cable connections.
To meet the ever-increasing demand for high-speed peripheral data transmissions, the CS1922M integrates a USB 3.1 Gen 1 hub to deliver unprecedented data transfer rates up to 5 Gbps - allowing you to maximize multitasking operations.
The unique independent switching feature allows the KVM switch's focus to be on one computer while its USB peripheral focus is on another computer. This eliminates the need to purchase a separate USB hub or stand-alone peripheral sharer - such as a print server or splitter. Additionally, the switch allows you to share the audio from each of the connected computers and even allows HD audio transmitted through a DisplayPort source.
With a rich feature set, the CS1922M is designed to exceed the requirements such as excellent video quality and ultra-fast data transmission speed for gaming, graphic design, animation, and video-editing applications.
More from the Manufacturer
To meet the ever-increasing demand for high-speed peripheral data transmissions, the CS1922M integrates a USB 3.1 Gen 1 hub to deliver unprecedented data transfer rates up to 5 Gbps - allowing you to maximize multitasking operations.
The unique independent switching feature allows the KVM switch's focus to be on one computer while its USB peripheral focus is on another computer. This eliminates the need to purchase a separate USB hub or stand-alone peripheral sharer - such as a print server or splitter. Additionally, the switch allows you to share the audio from each of the connected computers and even allows HD audio transmitted through a DisplayPort source.
With a rich feature set, the CS1922M is designed to exceed the requirements such as excellent video quality and ultra-fast data transmission speed for gaming, graphic design, animation, and video-editing applications.
More from the Manufacturer
- One USB keyboard/mouse and DisplayPort or HDMI monitor control 2 computers and 2 USB peripherals
- Built-in Multi-Stream Transport (MST) hub allows dual displays (DisplayPort / HDMI) from a single DisplayPort source
- Supports MST Mode, Splitter Mode, and Single Port Mode.
- 2-port USB 3.1 Gen 1 hub with SuperSpeed 5 Gbps data transfer speeds
- DisplayPort Dual-Mode (DP++) technology supports HDMI and DVI signals via a DisplayPort-to-HDMI/DVI DP++ adapter
- Firmware upgradeable
- Hot pluggable - add or remove computers without powering down the switch
- Superior video quality - 4K UHD (3840 x 2160 @ 60 Hz) and 4K DCI (4096 x 2160 @ 60 Hz)
- DisplayPort 1.2 compliant, HDCP compliant
- Supports HD audio through DisplayPort
- Switch between sources by using this KVM Switchbox without degradation of performance and eliminate the manual work
- Connect up to 2 computers to 1 local users
- Enjoy watching any class of content on 4096 x 2160 resolution
- Establishes a rapid connection with USB devices
- The desktop installation makes it ideal for deployments outside the wiring closet
Loading...
Product Specifications
-
Brand NameATEN
-
Country of OriginTaiwan
-
Depth8.3"
-
DisplayPortYes
-
Environmental ComplianceRestriction of Hazardous Substances (RoHS) Waste Electrical and Electronic Equipment Directive (WEEE)
-
Environmentally FriendlyYes
-
Form FactorDesktop
-
HDMIYes
-
Height2.2"
-
Input Voltage5 V DC
-
Input Voltage Range5V DC
-
Manufacturer Part NumberCS1922M
-
Maximum Video Resolution4096 x 2160
-
Number of Computers Supported2
-
Number of DisplayPorts3
-
Number of HDMI Ports1
-
Number of Local Users Supported1
-
Number of USB Ports6
-

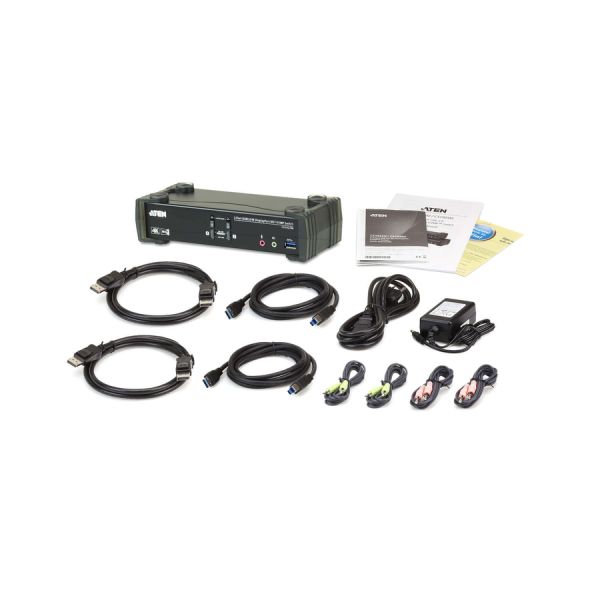

Package Contents2-Port USB 3.0 4K DisplayPort MST KVMP Switch 2 x DisplayPort 1.2 Cables (1.5m/5ft) 2 x USB Cables (USB 3.0-A to USB 3.0-B; 1.8m/6ft) 4 x Audio Cables (1.8m/6ft) 1 x Power Adapter 1 x User Instructions
-
Product ModelCS1922M
-
Product Name2-Port USB 3.0 4K DisplayPort MST KVMP Switch (Cables Included)
-
Product SeriesSOHO
-
Product TypeKVM Switchbox
-
USBYes
-
Width3.5"
