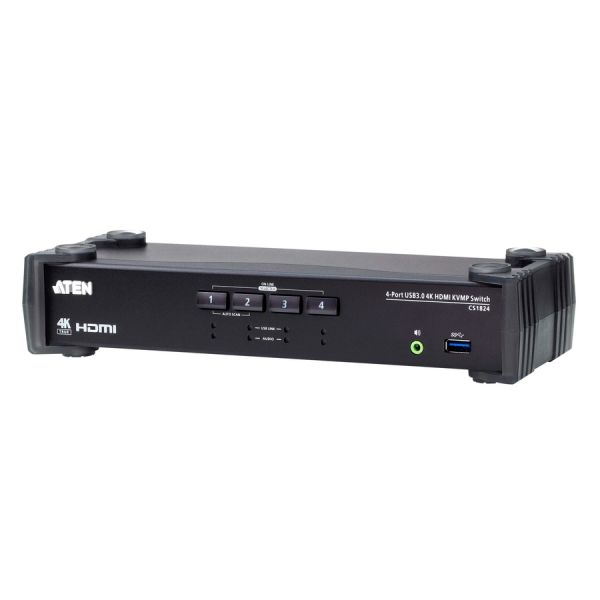

ATEN 4-Port USB 3.0 4K HDMI KVMP Switch
Product #:
SYNX5772059
Product Description
ATEN 4-Port USB 3.0 4K HDMI KVMP Switch
4 Computer(s) - 1 Local User(s) - 4096 x 2160 - 7 x USB - 5 x HDMI - Desktop, Rack-mountable
The ATEN CS1824 KVMP Switch offers effortless management of four HDMI interface computers from a single USB keyboard, mouse and HDMI monitor. Supporting the most superior video quality up to 4K DCI (4096 x 2160 @ 60Hz), the CS1824 optimizes user experience of multitasking.
With patented ATEN technology - Video DynaSync, users can enjoy better display resolution and faster switching between systems. What's more, the default EDID mode is available for smooth power-up, high-quality display and eliminates monitor compatibility issue.
In addition, the CS1824 features Audio Mixer Mode which mixes audio sources from any two connected computers as audio output, benefiting users to be notified without missing any system alert even the KVM focus is set on other computers. With a built-in USB 3.1 Gen 1 hub, the CS1824 delivers data transfer rates up to 5 Gbps, allowing you to accelerate multimedia operations and share USB peripherals with ease.
Integrating these outstanding functionalities, the CS1824 provides a great advantage for those doing CGI work, graphic design, video post production, etc. to operate multiple tasks smoothly.
With patented ATEN technology - Video DynaSync, users can enjoy better display resolution and faster switching between systems. What's more, the default EDID mode is available for smooth power-up, high-quality display and eliminates monitor compatibility issue.
In addition, the CS1824 features Audio Mixer Mode which mixes audio sources from any two connected computers as audio output, benefiting users to be notified without missing any system alert even the KVM focus is set on other computers. With a built-in USB 3.1 Gen 1 hub, the CS1824 delivers data transfer rates up to 5 Gbps, allowing you to accelerate multimedia operations and share USB peripherals with ease.
Integrating these outstanding functionalities, the CS1824 provides a great advantage for those doing CGI work, graphic design, video post production, etc. to operate multiple tasks smoothly.
- One USB keyboard/mouse and one HDMI monitor control four computers and share two USB peripherals
- Supports superior video quality - 4K UHD (3840 x 2160 @ 60Hz) and 4K DCI (4096 x 2160 @ 60Hz)
- Video DynaSync - an exclusive ATEN technology that eliminates boot-up display problems and optimizes the resolution when switching among different sources
- Built-in 2-Port USB 3.1 Gen 1 hub with SuperSpeed 5 Gbps data transfer rates
- Audio Mixer Modes - mixes up to two audio sources as audio output
- Computer selection via pushbuttons, hotkeys, mouse1, and RS-232 commands
- ATEN default EDID mode - smooth power-up, high-quality display and resolution optimization to eliminate compatibility issue
- Independent switching of KVM, USB peripheral, and stereo audio focus2
- HDMI 2.0 compliant; HDCP 2.2 compliant
- Supports HD Audio
- Quickly switches between sources without physical access
- Let you connect 4 computers to 1 local users
- Features 4096 x 2160 resolution
- Establishes a rapid connection with USB devices
- Designed to be used as a desktop device
Loading...
Product Specifications
-
Brand NameAten
-
Country of OriginTaiwan
-
Depth3.5"
-
Environmental ComplianceWaste Electrical and Electronic Equipment Directive (WEEE) Restriction of Hazardous Substances (RoHS)
-
Environmentally FriendlyYes
-
Form FactorDesktop Rack-mountable
-
HDMIYes
-
Height2.2"
-
Limited Warranty3 Year
-
Manufacturer Part NumberCS1824
-
Maximum Video Resolution4096 x 2160
-
Number of Computers Supported4
-
Number of HDMI Ports5
-
Number of Local Users Supported1
-
Number of USB Ports7
-
Product ModelCS1824
-
Product Name4-Port USB 3.0 4K HDMI KVMP Switch
-
Product TypeKVM Switchbox
-
USBYes
-
Width10.6"
