Eaton Tripp Lite Series NetDirector 16-Port 1U Rack-Mount IP KVM Switch, TAA

Product #: SYNX4222537
Sold Out

This product is sold out and we do not know when we will be getting another shipment. We apologize for any inconvenience this may cause.

Check similar items above to see if a replacement product is available.

Product Description

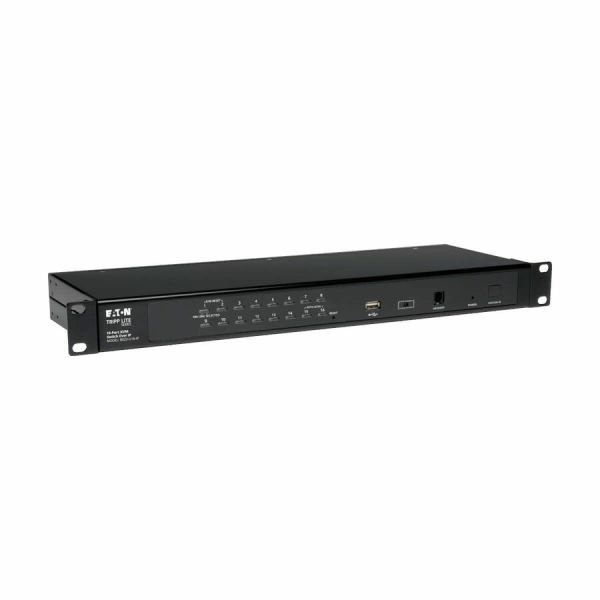

Eaton Tripp Lite Series NetDirector 16-Port 1U Rack-Mount IP KVM Switch, TAA
16 Computer(s) - 1 Local User(s) - 1 Remote User(s) - 2048 x 1536 - 1 x Network (RJ-45) - 1 x USB - Rack-mountable - 1U - TAA Compliant
The B022-U16-IP NetDirector 16-Port 1U Rack-Mount IP KVM Switch is the smart solution for controlling up to 16 computers or servers from one monitor, keyboard and mouse, all from the next room, next door, or the next continent. The B022-U16-IP takes up just 1U of rack space and works with all major operating systems. Built-in IP access allows you to control computers via LAN, WAN or the Internet. Just log on to a Web browser using the Windows- or Java-based browser client, and navigate the user-friendly interface in English, Spanish, French, German or Japanese. You can also access the KVM Switch without a browser if you prefer. The advanced on-screen display (OSD) supports high-definition video up to 2048 x 1536 at the local console and up to 1600 x 1200 @ 60 Hz with 24-bit color depth at the remote console. Panel Array Mode allows you to remotely monitor multiple ports at the same time. Compatible with both USB and PS/2 connections using the included cable kits, the KVM Switch allows you to select a connected computer using on-console pushbuttons or keyboard hotkey commands. It also supports both IPv4 and IPv6, as well as Link Local IPv6 Address and Stateless Auto Configuration protocol. Advanced encryption technologies, such as 128-bit SSL, 128-bit RC4, 1024-bit RSA, 56-bit DES, 256-bit AES and 168-bit 3DES, keep your important data secure. The KVM Switch supports RADIUS and LDAP/S remote authentication. Three levels of security allow you to delegate proper access to approved personnel, and you can create up to 64 separate accounts.
More from the Manufacturer
  • Built-in IP access from anywhere in the world
  • Works with all major operating systems
  • Compatible with both USB and PS/2 connections
  • Enables up to 64 secure user accounts
  • Space-saving 1U rack-mount installation
  • Switch between sources by using this KVM Switchbox without degradation of performance and eliminate the manual work
  • Get reliable connectivity between 16 computers and 1 local users
  • Up to 2048 x 1536 video resolution
  • USB port for easy connectivity
  • Designed to be used as a rack-mountable
Guides & Information
Related Articles
Need more information? Ask a Question

Product Specifications

  • Brand Name
    Tripp Lite series
  • Country of Origin
    Taiwan
  • Depth
    6"
  • Environmentally Friendly
    Yes
  • Form Factor
    Rack-mountable
  • Height
    1.7"
  • Limited Warranty
    3 Year
  • Manufacturer Part Number
    B022-U16-IP
  • Maximum Video Resolution
    2048 x 1536
  • Network (RJ-45)
    Yes
  • Number of Computers Supported
    16
  • Number of Local Users Supported
    1
  • Number of Network (RJ-45) Ports
    1
  • Number of Remote Users Supported
    1
  • Number of USB Ports
    1
  • Package Contents
    NetDirector 16-Port 1U Rack-Mount IP KVM Switch 2 x USB/PS2 Combo KVM Cable Kits, 6-Ft. Length USB/PS2 COmbo Console Cable Kit RJ11-to-DB9 Firmware Upgrade Cable Mounting Hardware External Power Supply Rubber Feet CD with Owner'S Manual And Device Files Quick Start Guide
  • Product Line
    NetDirector
  • Product Model
    B022-U16-IP
  • Product Name
    NetDirector 16-Port 1U Rack-Mount IP KVM Switch
  • Product Type
    KVM Switchbox
  • Rack Height
    1U
  • USB
    Yes
  • Width
    17"
