StarTech.com Long Range 1000 ft USB VGA KVM Over CAT5/5e CAT6 UTP Extender - KVM Console Over Ethernet - SV565UTPUL

Product #: ODFN948678
Sold Out

This product is sold out and we do not know when we will be getting another shipment. We apologize for any inconvenience this may cause.

Check similar items above to see if a replacement product is available.

Product Description

StarTech.com Long Range 1000 ft USB VGA KVM Over CAT5/5e CAT6 UTP Extender - KVM Console Over Ethernet - SV565UTPUL
Control a KVM or server from up to 300m (984ft) away - kvm extender - KVM Extender CAT5 - Console extender
The SV565UTPUL Long Range USB VGA KVM Console Extender over Cat5 UTP (1000 ft) lets you control a server, computer or multiple computers (connected through KVM Switch) over a standard Cat5 or Cat6 UTP network cable connection, at distances of up to 1000ft (300m) away.
You can use your existing USB keyboard, USB mouse, and monitor to access both the server room and your office computer, saving space and avoiding the need for a dedicated remote console by allowing you to switch between workstation view and KVM view at the remote location.
This product is TAA compliant and backed by a Startech.com 3-year warranty with free lifetime technical support.
More from the Manufacturer
More from the Manufacturer
  • Supports auto-switching between host and remote users or dedicated control
  • Intuitive hotkey commands
  • Max Resolution Limit feature caps the resolution to prevent the resolution setting from exceeding the capability of the connected display

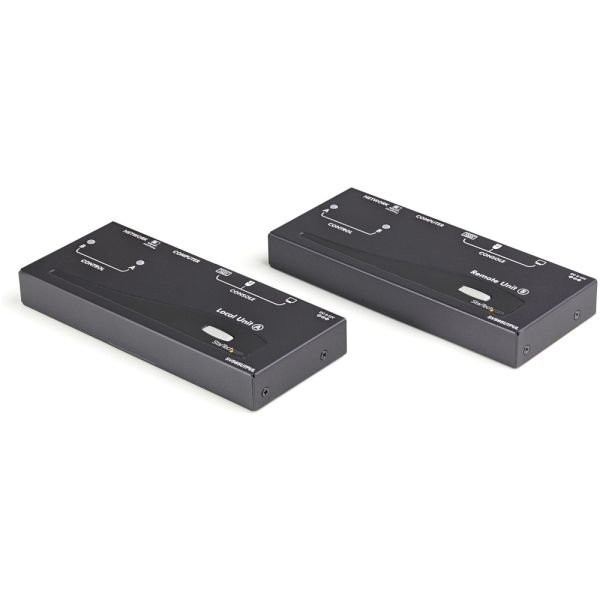

  • Kit includes both local and remote units
  • Hotkey controlled Equalizer(sharpness), Gain(brightness), and RGB Skew adjustments
  • Compatibility mode enables hotkey commands to be passed to connected StarView KVMs
  • Supports most combo keyboard and mouse sets (including Wireless)
  • USB computers are supported at the host and remote locations (USB keyboard and mouse required for remote console)
  • Compatible with CAT 5, 5e, or 6 UTP cabling
  • High resolution support: Up to 1920x1200(WUXGA)/ 1600x1200(UXGA)
Guides & Information
Related Articles
Need more information? Ask a Question

Product Specifications

  • Additional Warranty Information
    3-Year Limited
  • Brand Name
    StarTech.com
  • Certifications & Standards
    CE FCC
  • Connectivity Technology
    Wired
  • Country of Origin
    TW
  • Depth
    2-8/10 in.
  • Environmentally Friendly
    Yes
  • Features
    Rack Mountable
  • Form Factor
    Rack-mountable Desktop
  • Graphic Mode
    WUXGA
  • Height
    8/10 in.
  • Input Voltage
    120 V AC 240 V AC
  • Input Voltage Range
    110V AC to 240V AC
  • KVM Technology
    Analog
  • Limited Warranty
    3 Year
  • Manufacturer
    STARTECH.COM
  • Manufacturer Part Number
    SV565UTPUL
  • Maximum Operating Distance
    984.25 ft
  • Maximum Video Resolution
    1920 x 1200
  • Network (RJ-45)
    Yes
  • Number of Computers Supported
    2
  • Number of Local Users Supported
    1
  • Number of Network (RJ-45) Ports
    2
  • Number of Remote Users Supported
    1
  • Number of USB Ports
    4
  • Number of VGA Ports
    2
  • Package Contents
    2 x KVM Extenders (1x Local, 1x Remote) 2 x 2n1 USB VGA KVM Cables 1 x Rubber Feet 1 x Universal power adapter: comes ready for NA/EU/UK only when you buy in NA/EU/UK; comes ready for Australia and New Zealand only when you buy in Australia and New Zealand 1 x User Manual
  • Packaging
    1
  • Power Consumption
    18 W
  • Product Name
    USB VGA KVM Console Extender over Cat5 UTP 1000 ft
  • Product Type
    Rack Mount KVM Console
  • Quantity
    1
  • Receiver Weight (Approximate)
    1.37 lb
  • Refurbished
    N
  • TAA Compliant
    Yes
  • Transmitter Weight (Approximate)
    1.37 lb
  • USB
    Yes
  • VGA
    Yes
  • Width
    6-2/10 in.
