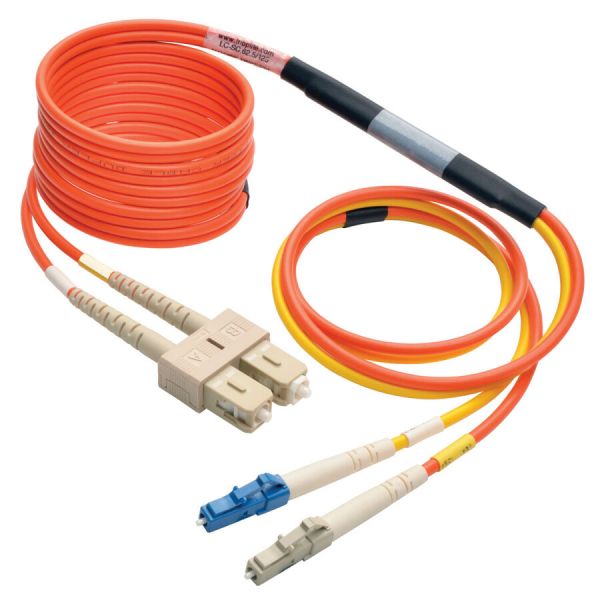

Eaton Tripp Lite Series Fiber Optic Mode Conditioning Patch Cable (LC Mode Conditioning to SC), 3M (10 ft.)

10 ft Fiber Optic Network Cable for Network Device, Router, Switch - First End: 2 x LC Network - Male - Second End: 2 x SC Network - Male - Patch Cable - 62.5/125 µm, 8.3/125 µm - Orange
Product Number: SYNX4222540
  • Converts Singelemode LC GBIC to Multimode SC Patch Panel
  • 62.5/125 and 8.3/125
  • Run 1000Base-LX Gigabit Ethernet over MMF by offsetting signal loss
  • Offers a reliable network connectivity
More details
Sold Out

This product is sold out and we do not know when we will be getting another shipment. We apologize for any inconvenience this may cause.

Check similar items above to see if a replacement product is available.

Product Description

Eaton Tripp Lite Series Fiber Optic Mode Conditioning Patch Cable (LC Mode Conditioning to SC), 3M (10 ft.) - Tripp Lites Mode Conditioning Cables are designed for use in Gigabit Ethernet 1000BASE-LX applications. N425-Series cables convert a Singlemode LC GBIC to an SC Multimode patch bay. They are fully compliant with IEEE 802.3z application standards. Mode Conditioning Cables are needed in applications where high-speed Gigabit 1000BASE-LX routers and switches are being deployed into existing Multimode plants. The need for this patch cord is due to the single-mode launch nature of the -LX or long-wave (1300 nm) transceiver modules used for Gigabit Ethernet. Launching a single-mode laser into the center of a multimode fiber can cause multiple signals to be generated that confuses the receiver at the other end of the fiber. These multiple signals, caused by Differential Mode Delay (DMD) effects, severely limit the cable distance lengths for operating Gigabit Ethernet. A mode conditioning patch cord eliminates these multiple signals by allowing the single-mode launch to be offset away from the center of a multimode fiber.

  • Converts Singelemode LC GBIC to Multimode SC Patch Panel
  • 62.5/125 and 8.3/125
  • Run 1000Base-LX Gigabit Ethernet over MMF by offsetting signal loss
  • Offers a reliable network connectivity
  • Features fiber optic cable type to better accommodate your precise power supply requirements with maximum charging productivity
  • Fully compatible with switches
Tripp Lite by Eaton logo
Guides & Information
Related Articles
 Need more information? Ask a Question

Product Specifications

  • Brand Name
    Tripp Lite by Eaton
  • Cable Characteristic
    Patch Cable
  • Cable Length
    10 ft
  • Cable Type
    Fiber Optic
  • Connector Type on First End
    LC Network - Male
  • Connector Type on Second End
    SC Network - Male
  • Connector on First End Details
    2 x LC Network - Male
  • Connector on Second End Details
    2 x SC Network - Male
  • Core/Cladding Diameter
    62.5/125 µm 8.3/125 µm
  • Country of Origin
    China
  • Device Supported
    Network Device Router Switch
  • Environmentally Friendly
    Yes
  • Fiber Optic Mode
    Multi-mode Single-mode
  • Limited Warranty
    Lifetime
  • Manufacturer Part Number
    N42503M
  • Product Color
    Orange
  • Product Model
    N425-03M
  • Product Name
    3M/10ft Fiber Optic SMF-MMF LC
  • Product Type
    Network Cable
