Asus ThunderboltEX 3 Expansion Card for ASUS Z170 and X99 Motherboards
Product #:
SYNX4602436
+2View All
Sold Out
This product is sold out and we do not know when we will be getting another shipment. We apologize for any inconvenience this may cause.
Check similar items above to see if a replacement product is available.
Product Description

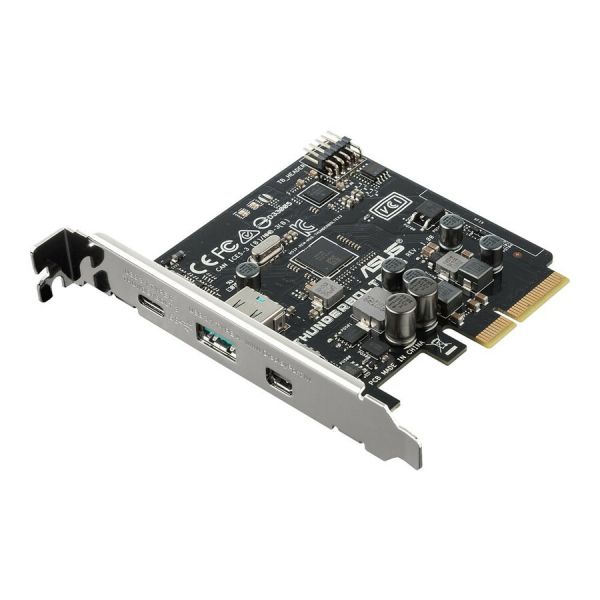

Asus ThunderboltEX 3 Expansion Card for ASUS Z170 and X99 Motherboards
PCI Express 3.0 x4 - Plug-in Card - 1 USB Port(s) - 1 Thunderbolt Port(s) - 1 USB 3.1 Port(s) - PC
Thunderbolt 3, USB 3.1, and up to 36W charging
Thunderbolt 3 means faster, bigger and more, all through a single cable with a sleek, any-way-up connector - and ASUS ThunderboltEX 3 is the quick-to-fit expansion card that enables you to upgrade today!
Faster
At a breathtaking 40Gbps you'll experience faster transfers, with four times (4X) the data speeds of any other cable and twice (2X) the video bandwidth.
More connectivity
By integrating reversible USB 3.1 Type-C and DisplayPort 1.2, the ThunderboltEX 3 gears you up for compatibility with the latest high-speed devices, from super-fast external drives to 4K UHD displays. ThunderboltEX 3 supports the USB Power Delivery specification for fast, high-power charging of up to 36W, and you can even daisy-chain up to six devices from a single port - and our card even includes an additional USB 3.1 Type-A connector for total convenience and compatibility!
10-gigabit networking
When you fit ThunderboltEX 3 you'll also enjoy peer-to-peer networking at screaming 10Gbps speeds, enabling you to transfer files in the blink of an eye, perform easy PC migrations, or set up small workgroups with shared storage!
Upgrade your motherboard in just three simple steps!
Easy upgrade: Slide ASUS ThunderboltEX 3 into PCI-Express 3.0 x4 slot
Compatible with ASUS motherboards: Connect the card to the onboard Thunderbolt header with the supplied system-link cable
DisplayPort 1.2 support: Attach the supplied DisplayPort cable to the card and the onboard DisplayPort connector
Turn on your computer, connect your Thunderbolt devices and enjoy the incredible speed!
Thunderbolt 3 means faster, bigger and more, all through a single cable with a sleek, any-way-up connector - and ASUS ThunderboltEX 3 is the quick-to-fit expansion card that enables you to upgrade today!
Faster
At a breathtaking 40Gbps you'll experience faster transfers, with four times (4X) the data speeds of any other cable and twice (2X) the video bandwidth.
More connectivity
By integrating reversible USB 3.1 Type-C and DisplayPort 1.2, the ThunderboltEX 3 gears you up for compatibility with the latest high-speed devices, from super-fast external drives to 4K UHD displays. ThunderboltEX 3 supports the USB Power Delivery specification for fast, high-power charging of up to 36W, and you can even daisy-chain up to six devices from a single port - and our card even includes an additional USB 3.1 Type-A connector for total convenience and compatibility!
10-gigabit networking
When you fit ThunderboltEX 3 you'll also enjoy peer-to-peer networking at screaming 10Gbps speeds, enabling you to transfer files in the blink of an eye, perform easy PC migrations, or set up small workgroups with shared storage!
Upgrade your motherboard in just three simple steps!
Easy upgrade: Slide ASUS ThunderboltEX 3 into PCI-Express 3.0 x4 slot
Compatible with ASUS motherboards: Connect the card to the onboard Thunderbolt header with the supplied system-link cable
DisplayPort 1.2 support: Attach the supplied DisplayPort cable to the card and the onboard DisplayPort connector
Turn on your computer, connect your Thunderbolt devices and enjoy the incredible speed!
- Compatible with a variety of ASUS Z170 and X99 motherboards
- Adds a port to your PC through the PCI Express 3.0 x4 interface
- Enables up to 40 Gbps transfer speeds
- Provides 1 USB ports for responsive and expanded device connections
- One Type-C port supports Thunderbolt 3, USB 3.1 and DisplayPort 1.2
- Includes secondary USB 3.1 Type-A port
- Supports USB Power Delivery Specification for up to 36W charging
Product Specifications
-
Brand NameAsus
-
Country of OriginChina
-
Environmental CertificationRoHS WEEE
-
Environmentally FriendlyYes
-
Form FactorPlug-in Card
-
Height3.4"
-
Host InterfacePCI Express 3.0 x4
-
Length3.9"
-
Limited Warranty3 Year
-
Manufacturer Part NumberTHUNDERBOLTEX 3
-
Package ContentsThunderboltEX 3 Thunderbolt/USB Adapter 1 x Mini DisplayPort Cable 1 x ASUS TB Header Cable Support Disc
-
Platform SupportedPC
-
Product ModelThunderboltEX 3
-
Product NameThunderboltEX 3 Expansion Card for ASUS Z170 and X99 Motherboards
-
Product TypeThunderbolt/USB Adapter
-
Total Number of USB Ports1
-
Width3.4"
