StarTech.com USB-C & USB-A Dock, Hybrid Triple Monitor Laptop Docking Station DisplayPort & HDMI 4K 60Hz/85W PD/6x USB/GbE, TAA
+5View All
Product Description
StarTech.com USB-C & USB-A Dock, Hybrid Triple Monitor Laptop Docking Station DisplayPort & HDMI 4K 60Hz/85W PD/6x USB/GbE, TAA
Universal hybrid USB-C USB-A dock (USB 10Gbps) - 4K triple monitor docking station with DisplayPort (DP 1.4) & HDMI 2.0 - 85W Power Delivery, GbE & audio - 4x USB Type-A + 2x USB-C - Host port & USB-IF Certified combo cable w/screw lock
This USB-C Gen 2 10Gbps docking station turns your USB-C or Thunderbolt™ 3 MacBook Pro, Windows laptop, and Chromebook into a powerful workstation. A USB 3.2 Gen 2 Type-C dock features everything you need, from triple HDMI or DisplayPort video outputs up to 4K 60 Hz to 10Gbps USB-C & USB-A downstream peripheral ports to 85W Power Delivery.
Older USB-A laptops are supported through universal hybrid USB-C/USB-A cable included and replacement or extra host cables can be purchased separately here.
HDMI & DisplayPort for Triple Monitor Outputs
This USB-C Gen 2 docking station with DP 1.4 and HDMI 2.0 support, is a perfect choice for dual or triple monitor setup, supporting up to triple 4K 60Hz display output, with any combination of three DisplayPort or HDMI video interfaces, on USB-C Gen 2 (with DP 1.4 support) laptops, MacBooks and Windows-based Thunderbolt 3 laptops. Older USB-A laptops will only support dual monitor setup. Host Display Output USB-C Gen 1 or 2 (with DP 1.4) Triple Display - 3x 4K 60Hz Thunderbolt 3 (DP 1.4 Supported) Triple Display - 3x 4K 60Hz
USB-C Gen 1 (with DP 1.2)
Triple Display - 2x 4K 60Hz; 1x 4K 30Hz USB-A or USB-C (No DP Alt Mode) Dual Display - 2x 4K 60Hz
Power & Charge with 85W Power Delivery
Power and charge USB-C/Thunderbolt 3 workstation laptops & ultrabooks with 85 watt PD Higher power delivery, MORE than other USB-C 10G Triple monitor docks. Charge smartphones and other devices with two downstream front-facing charging ports with BC 1.2 for USB-A and USB-C devices. Fast-charge ports support always-on charging so devices will charge whether or not a host laptop is connected.
Plenty of Downstream USB Ports

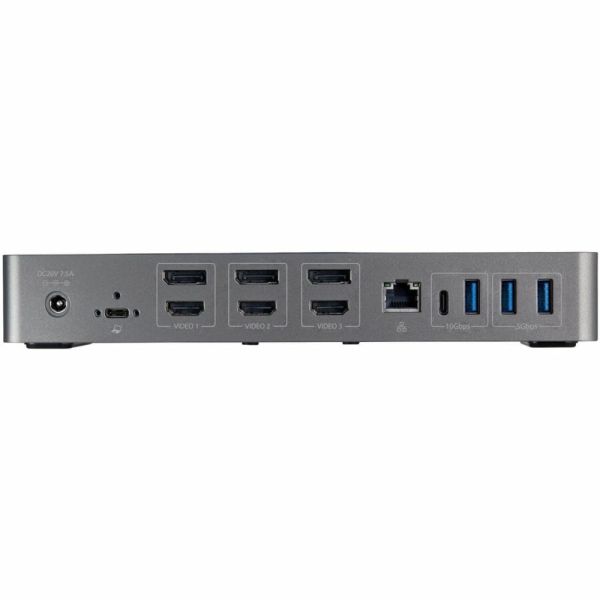

This USB-C Gen 2 docking station features 6 downstream USB ports in total to connect USB peripherals.
1x USB-C 3.2 Gen 2 (10 Gbps)
1x USB-A 3.2 Gen 2 (10 Gbps)
1x USB-C 3.2 Gen 1 (5 Gbps)
3x USB-A 3.2 Gen 1 (5 Gbps)
Also included, is a gigabit Ethernet port with PXE Boot and WoL support, as well as 4-position TRRS stereo audio headset/mic port.
Additional Security Features

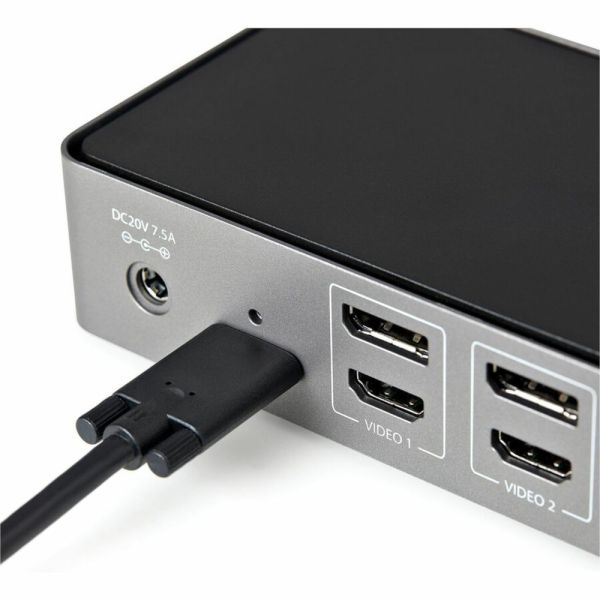

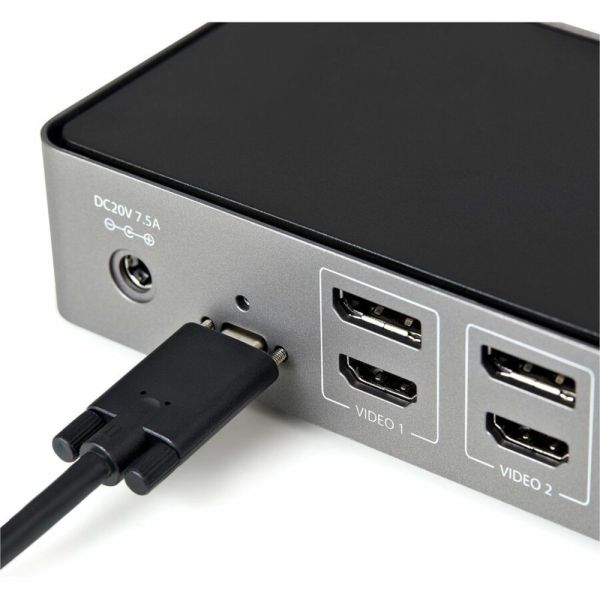

This USB-C/USB-A docking station comes with plenty of security features such as a screw-lock host port which includes a USB-IF Certified 1m 2-in-1 USB-C/USB-A screw-lock cable, and a K-slot for a Kensington style laptop lock.
For added security, or flexibility where desk space is limited, this dock can be mounted to the wall, monitor, or underneath the desk with StarTech.com mounting brackets (SSPMSUDWM & SSPMSVESA). These mounting brackets (not included) are specifically designed for our docks and hubs to give you the customized setup you need.
Enhance Productivity and Device Management with the StarTech.com Connectivity Tools Application
Developed to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes:
Advanced Windows Layout Utility: To setup and save custom windows layouts.
Mac Address Pass-Through Utility: To improve network security.
USB Event Monitoring Utility: To track and log connected USB devices
Wi-Fi Auto Switch Utility: Enabling users to quickly access faster network speeds via wired LAN.
For more information and to download the StarTech.com Connectivity Tools application, please visit: www.StarTech.com/Connectivity-Tools
Older USB-A laptops are supported through universal hybrid USB-C/USB-A cable included and replacement or extra host cables can be purchased separately here.
HDMI & DisplayPort for Triple Monitor Outputs
This USB-C Gen 2 docking station with DP 1.4 and HDMI 2.0 support, is a perfect choice for dual or triple monitor setup, supporting up to triple 4K 60Hz display output, with any combination of three DisplayPort or HDMI video interfaces, on USB-C Gen 2 (with DP 1.4 support) laptops, MacBooks and Windows-based Thunderbolt 3 laptops. Older USB-A laptops will only support dual monitor setup. Host Display Output USB-C Gen 1 or 2 (with DP 1.4) Triple Display - 3x 4K 60Hz Thunderbolt 3 (DP 1.4 Supported) Triple Display - 3x 4K 60Hz
USB-C Gen 1 (with DP 1.2)
Triple Display - 2x 4K 60Hz; 1x 4K 30Hz USB-A or USB-C (No DP Alt Mode) Dual Display - 2x 4K 60Hz
Power & Charge with 85W Power Delivery
Power and charge USB-C/Thunderbolt 3 workstation laptops & ultrabooks with 85 watt PD Higher power delivery, MORE than other USB-C 10G Triple monitor docks. Charge smartphones and other devices with two downstream front-facing charging ports with BC 1.2 for USB-A and USB-C devices. Fast-charge ports support always-on charging so devices will charge whether or not a host laptop is connected.
Plenty of Downstream USB Ports
This USB-C Gen 2 docking station features 6 downstream USB ports in total to connect USB peripherals.
1x USB-C 3.2 Gen 2 (10 Gbps)
1x USB-A 3.2 Gen 2 (10 Gbps)
1x USB-C 3.2 Gen 1 (5 Gbps)
3x USB-A 3.2 Gen 1 (5 Gbps)
Also included, is a gigabit Ethernet port with PXE Boot and WoL support, as well as 4-position TRRS stereo audio headset/mic port.
Additional Security Features
This USB-C/USB-A docking station comes with plenty of security features such as a screw-lock host port which includes a USB-IF Certified 1m 2-in-1 USB-C/USB-A screw-lock cable, and a K-slot for a Kensington style laptop lock.
For added security, or flexibility where desk space is limited, this dock can be mounted to the wall, monitor, or underneath the desk with StarTech.com mounting brackets (SSPMSUDWM & SSPMSVESA). These mounting brackets (not included) are specifically designed for our docks and hubs to give you the customized setup you need.
Enhance Productivity and Device Management with the StarTech.com Connectivity Tools Application
Developed to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes:
Advanced Windows Layout Utility: To setup and save custom windows layouts.
Mac Address Pass-Through Utility: To improve network security.
USB Event Monitoring Utility: To track and log connected USB devices
Wi-Fi Auto Switch Utility: Enabling users to quickly access faster network speeds via wired LAN.
For more information and to download the StarTech.com Connectivity Tools application, please visit: www.StarTech.com/Connectivity-Tools
- 6 USB ports offers a more refined structure and safer to use connectivity
- Enjoy HD quality videos on your HDTV with the HDMI port facility
- USB 3.1 (3.1 Gen 2) Type C host interface allows quick transmission of data at a higher rate for your convenience
- Workstation device supported according to your requirements with maximum productivity
- Gigabit Ethernet Ethernet technology for increasing efficiency with the quicker transfer and sharing of information
- Wired connectivity technology provides a high-powered and dependable connection
Loading...
Product Specifications
-
Additional Warranty Information3-Year Limited
-
Brand NameStarTech.com
-
ColorBlack; Gray
-
CompatibilityCompatible Products: Lenovo X1 Carbon Lenovo ThinkPad P Series Dell Latitude Dell Precision Dell XPS 15 HP Spectre HP ZBook MacBook Pro 16
-
Connectivity TechnologyWired
-
Country of OriginTW
-
Depth9-2/10 in.
-
Device SupportedWorkstation Notebook
-
DisplayPortYes
-
Environmental ComplianceRestriction of Hazardous Substances (RoHS) Waste Electrical and Electronic Equipment Directive (WEEE)
-
Environmentally FriendlyYes
-
Ethernet TechnologyGigabit Ethernet
-
HDMIYes
-
Headphone/Microphone Combo PortYes
-
Height1-1/2 in.
-
Host InterfaceUSB 3.1 (3.1 Gen 2) Type C
-
Limited Warranty3 Year
-
ManufacturerSTARTECH.COM
-
Manufacturer Part NumberDK31C3HDPD
-
ModelUSB-C & USB-A Dock, Hybrid Universal Triple Monitor Laptop Docking Station w/ DisplayPort & HDMI 4K 60Hz, 85W Power Delivery, 6x USB Hub, Ethernet, Audio, USB 3.1 Gen 2 10Gbps - Multi-Monitor Dock (DK31C3HDPD)
-
Network (RJ-45)Yes
-
Number of Displays Supported3
-
Number of Ports6
-
Number of USB Type-C Ports2
-
Operating System SupportedWindows 10; Windows 11; Windows 8.1; Windows 8; Mac OS X 10.6 Snow Leopard; Mac OS X 11.0 Big Sur; Ubuntu 18.04; Ubuntu 20.04; ChromeOS
-
Package ContentsDocking Station USB-C Screw Lock Cable with USB-A Adapter Universal Power Adapter (NA, JP, ANZ) Quick-Start Guide
-
PortsRJ-45; HDMI
-
Product NameDocking Station
-
Product TypeLaptop Docking Station
-
RefurbishedN
-
ThunderboltYes
-
Total Number of USB Ports6
-
Width3-3/10 in.
