StarTech.com 7 Port PCI Express USB 3.0 Card - Standard and Low-Profile Design
Product #:
ODFN306790
+1View All
Product Description

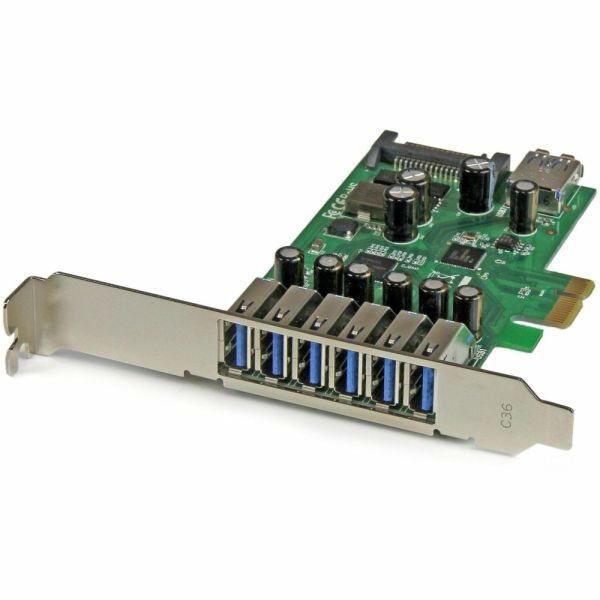

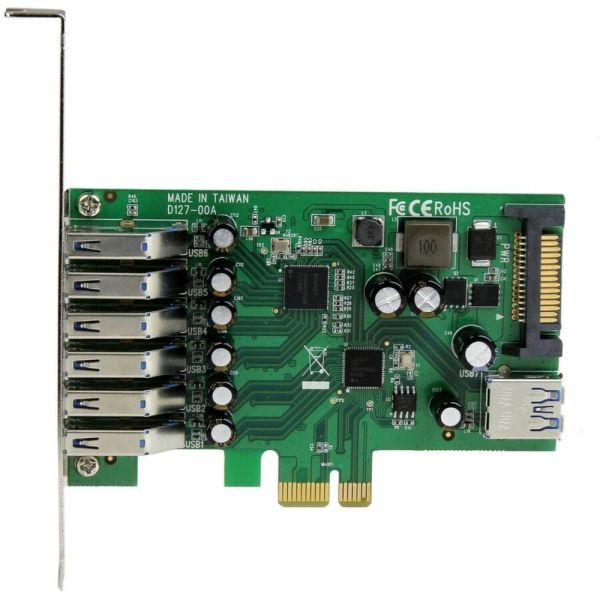

StarTech.com 7 Port PCI Express USB 3.0 Card - Standard and Low-Profile Design
Get the scalability you need by adding 7 USB 3.0 ports with SATA power to your computer - PCIe USB 3.0 Adapter Card - Standard & Low-Profile - UASP Support - 1 Internal & 6 External Ports - Native OS Support in Windows 8 & 8.1 - Backward compatible
Handle your workload more efficiently. This USB 3.2 Gen 1 card expands your computer's capabilities by giving you seven extra USB 3.2 Gen 1 ports. It's engineered with an innovative stacked port layout to fit easily into both low-profile and standard desktop computers.
More ports means you can add USB devices as you need them. This robust USB 3.2 Gen 1 card gives you seven USB 3.2 Gen 1 ports - six external and one internal - so you can plug in your tablets, smartphones, external hard drives, CD/DVD drives, printer and other devices at the same time. With so many extra ports, you can leave your devices plugged in, so they're ready to use when you need them. It's also economical - by being able to connect so many devices, you save the cost of extra hubs or cards.
The internal USB 3.2 Gen 1 port lets you connect a USB device inside your computer for added convenience and security.

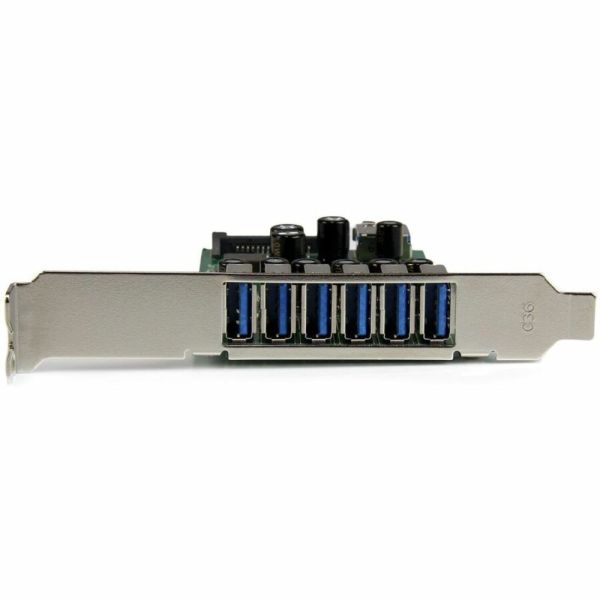

This versatile USB 3.2 Gen 1 card features a dual-profile design with a stacked port layout. The innovative port configuration allows a high number of external ports in a compact design, allowing it to fit both low-profile and full desktop computer systems. A bracket is included for installation into low-profile computers.
You'll be up and running in no time. The card automatically installs in Windows 8.1 or later, with native operating system support. It's also backward compatible with USB 2.0 and 1.x devices to help you get the most out of your existing peripherals.
This high-performance SuperSpeed USB 3.2 Gen 1 card supports data transfer rates up to 5 Gbps and is enhanced with UASP support, which can perform ~70% faster read speed and 40% faster write speed over traditional USB 3.2 Gen 1, when paired with a .
The rugged build quality of the card delivers long-lasting performance, and gives you peace of mind when connecting multiple devices. The PEXUSB3S7 is backed by a StarTech.com 2-year warranty and free lifetime technical support.
Note: UASP (USB Attached SCSI Protocol) is supported in Windows 8.1 or later, and Linux kernel 2.6.37 or later. Test results were obtained using an Intel Ivy Bridge system, StarTech.com add-on USB 3.2 Gen 1 cards, a UASP-enabled StarTech.com enclosure, and a SATA III solid state drive.
More from the Manufacturer
More from the Manufacturer
More ports means you can add USB devices as you need them. This robust USB 3.2 Gen 1 card gives you seven USB 3.2 Gen 1 ports - six external and one internal - so you can plug in your tablets, smartphones, external hard drives, CD/DVD drives, printer and other devices at the same time. With so many extra ports, you can leave your devices plugged in, so they're ready to use when you need them. It's also economical - by being able to connect so many devices, you save the cost of extra hubs or cards.
The internal USB 3.2 Gen 1 port lets you connect a USB device inside your computer for added convenience and security.
This versatile USB 3.2 Gen 1 card features a dual-profile design with a stacked port layout. The innovative port configuration allows a high number of external ports in a compact design, allowing it to fit both low-profile and full desktop computer systems. A bracket is included for installation into low-profile computers.
You'll be up and running in no time. The card automatically installs in Windows 8.1 or later, with native operating system support. It's also backward compatible with USB 2.0 and 1.x devices to help you get the most out of your existing peripherals.
This high-performance SuperSpeed USB 3.2 Gen 1 card supports data transfer rates up to 5 Gbps and is enhanced with UASP support, which can perform ~70% faster read speed and 40% faster write speed over traditional USB 3.2 Gen 1, when paired with a .
The rugged build quality of the card delivers long-lasting performance, and gives you peace of mind when connecting multiple devices. The PEXUSB3S7 is backed by a StarTech.com 2-year warranty and free lifetime technical support.
Note: UASP (USB Attached SCSI Protocol) is supported in Windows 8.1 or later, and Linux kernel 2.6.37 or later. Test results were obtained using an Intel Ivy Bridge system, StarTech.com add-on USB 3.2 Gen 1 cards, a UASP-enabled StarTech.com enclosure, and a SATA III solid state drive.
More from the Manufacturer
More from the Manufacturer
- PCIe x1 interface compliant with PCI Express 2.0 specifications
- SATA power connector with up to 900mA per port for high-power USB devices
- Unique dual-profile design fits standard and low-profile computers
- Enjoy fast file transfers with USB 3.0 5Gbps and UASP support
- Backward compatible with USB 2.0 and 1.x devices
- Extend your system capabilities by adding 7 USB 3.0 ports 6 external and 1 internal to any PCIe compatible computer
Loading...
Product Specifications
-
Additional InformationOS Compatibility: Windows XP, Vista, 7, 8, 8.1, 10 Windows Server 2008 R2, 2012, 2012 R2, 2016, 2019 Linux 2.6.31 to 4.11.x LTS Versions only
-
Additional Warranty Information2-Year Limited
-
Brand NameStarTech.com
-
Cord Length11/32 ft
-
Country of OriginCN
-
Depth4-1/10 in.
-
Dimensions4-7/10 in. X 6/10 in. X 4-1/10 in.
-
Environmentally FriendlyYes
-
Form FactorPlug-in Card
-
Height4-7/10 in.
-
Host InterfacePCI Express x1
-
Length4.1"
-
Limited Warranty2 Year
-
ManufacturerSTARTECH.COM
-
Manufacturer Part NumberPEXUSB3S7
-
Number of SATA Ports1
-
Operating System SupportedWindows XP; Windows Vista; Windows 7; Windows 8; Windows 8.1; Windows 10; Windows 11; Windows Server 2008 R2; Windows Server 2012; Windows Server 2016; Windows Server 2019; Linux
-

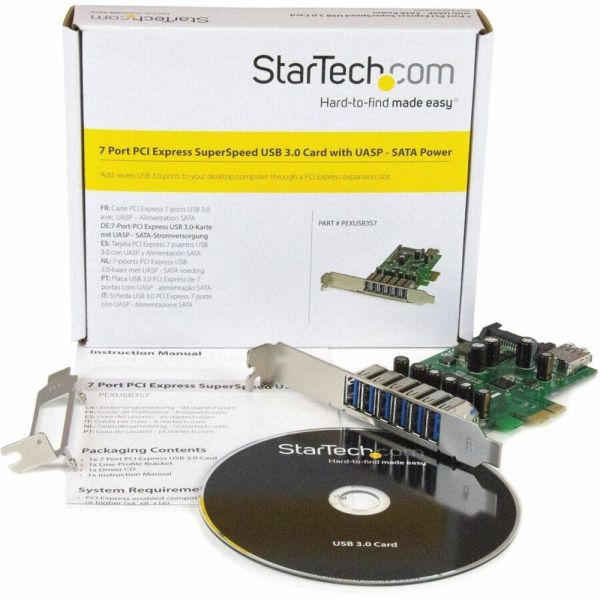

Package Contents7-Port PCI Express USB 3.0 Card - 5Gbps - Standard and Low-Profile Design 1 x Low-Profile Bracket 1 x Driver CD 1 x Instruction Manual
-
Platform SupportedPC Linux
-
Product Name7-Port PCI Express USB 3.0 Card - 5Gbps - Standard and Low-Profile Design
-
Product TypeUSB Hub
-
RefurbishedN
-
TAA CompliantYes
-
Total Number of USB Ports7
-
UASP SupportYes
-
Width6/10 in.
