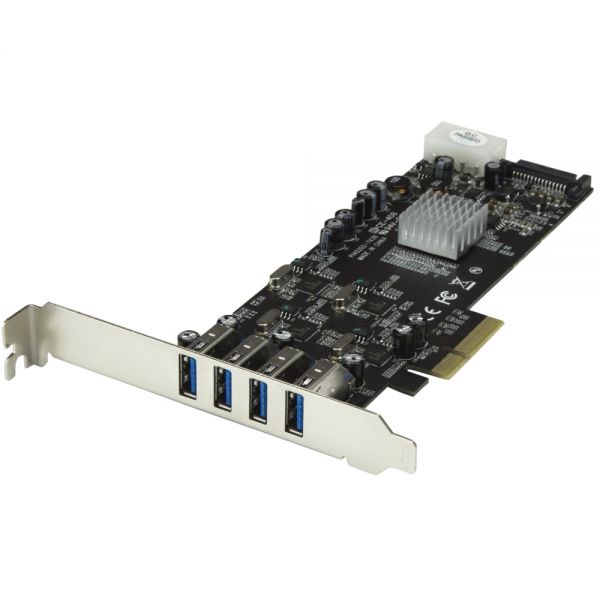

StarTech.com 4 Port PCI Express (PCIe) SuperSpeed USB 3.0 Card Adapter w/ 4 Dedicated 5Gbps Channels - PEXUSB3S44V
+3View All
Product Description
StarTech.com 4 Port PCI Express (PCIe) SuperSpeed USB 3.0 Card Adapter w/ 4 Dedicated 5Gbps Channels - PEXUSB3S44V

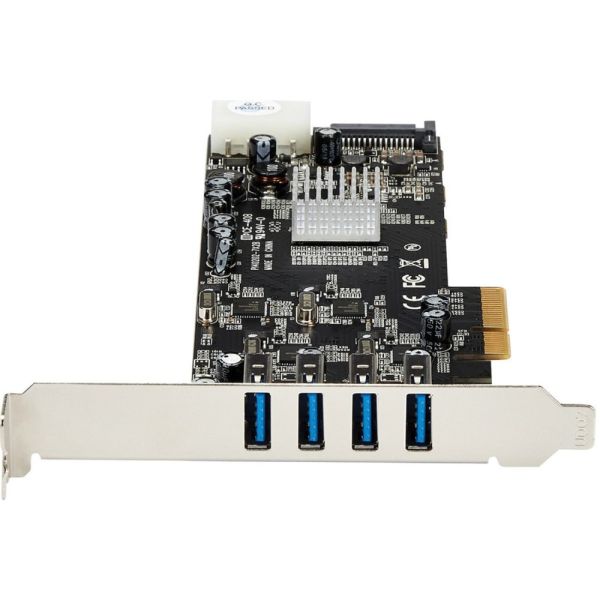

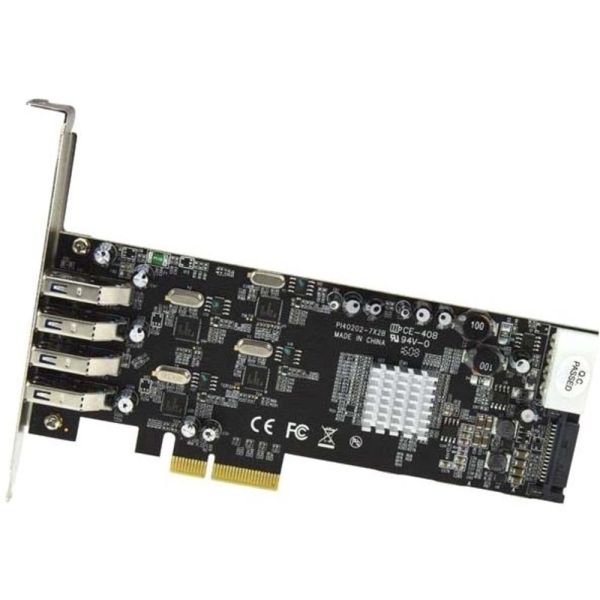

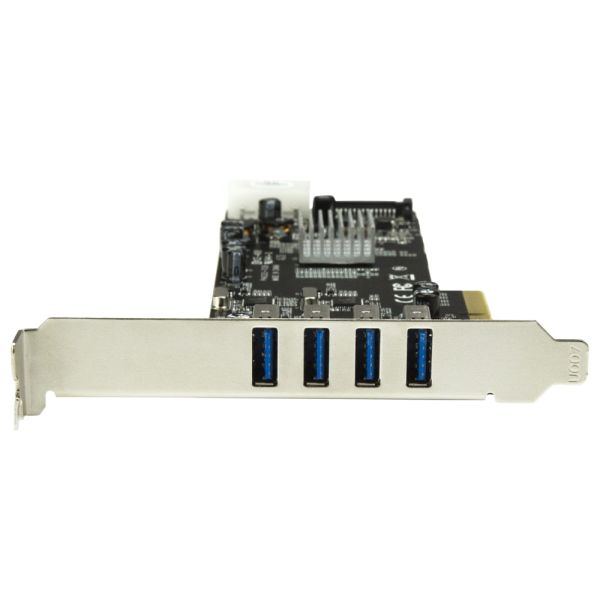

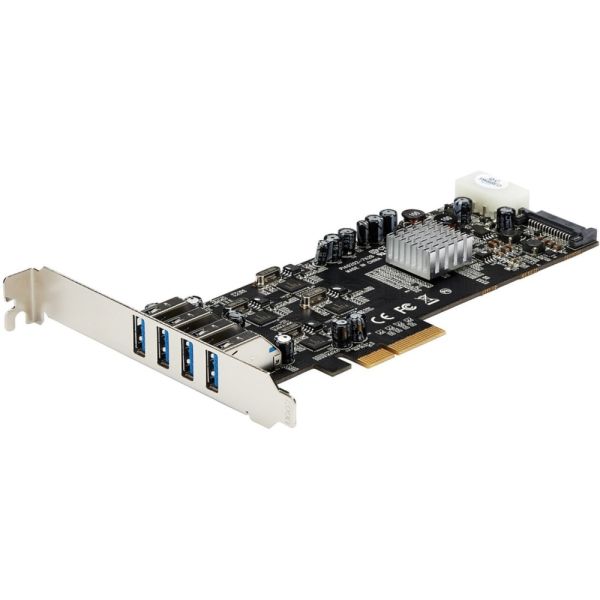

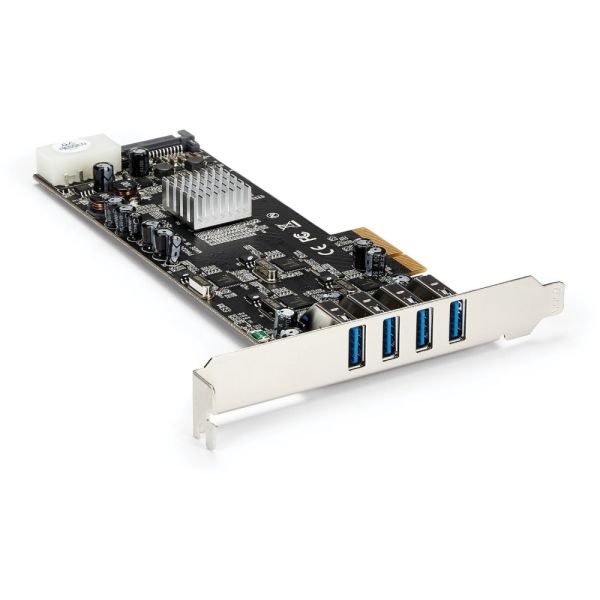

Add four USB 3.0 ports with four independent channels, LP/SATA power, and charging support to your PC through a PCI Express slot - 4 Port PCIe SuperSpeed USB 3.0 Card w/ 4 Dedicated 5Gbps Channels - UASP - SATA/LP4 - Quad Port USB 3.0 PCIe Controller
The PEXUSB3S44V 4-Port PCI Express USB 3.2 Gen 1 Card lets you add four, dedicated 5 Gbps USB 3.2 Gen 1 ports to your PCIe x4-enabled PC. This independent port architecture improves USB 3.2 Gen 1 performance by transferring data on four individual channels to your computer, giving you faster file transfers.
When multiple devices are connected, traditional single bus USB 3.2 Gen 1 cards share your maximum bandwidth between all ports. By employing four host controller chipsets, each port operates on a separate independent transmission channel. Dedicating up to 5 Gbps to each USB port reduces performance bottlenecks, and effectively quadruples your total available to bandwidth to 20 Gbps.
Enhanced with UASP support (USB Attached SCSI Protocol), this USB 3.2 Gen 1 controller performs up to 70% faster than conventional USB 3.2 Gen 1 when paired with a (Note: UASP requires a compatible operating system). Using a more efficient protocol than the traditional USB BOT (Bulk-Only Transport), UASP technology optimizes transfers by allowing multiple commands to be processed simultaneously, significantly increasing transfer speeds for less wait time on data transfers. See our UASP test results below for further details.

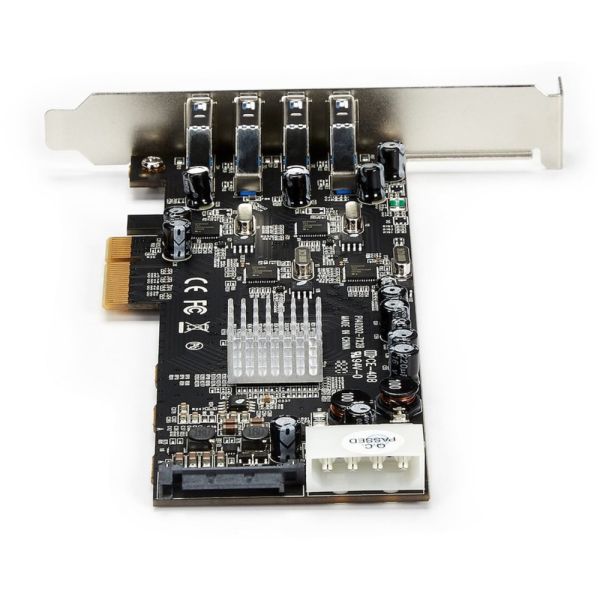

For high-power USB devices, this PCIe USB 3.2 Gen 1 card includes an optional SATA or LP4 power connector to connect to your system power supply and deliver up to 900mA of power per port to USB 3.2 Gen 1 bus-powered devices (500mA for USB 2.0). The USB 3.2 Gen 1 card also supports USB Battery Charging Specification 1.2 (Apple Mode only), letting you charge compatible Apple devices (iPhones and iPads) faster than a standard USB 3.2 Gen 1 port.
The controller card is compliant with USB 3.2 Gen 1 standards while offering backward compatibility with existing USB 2.0 / 1.1 devices. For added versatility, the USB 3.2 Gen 1 PCIe card is equipped with a standard profile bracket and includes a low-profile/half-height bracket for installation in small form-factor computers.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
UASP is supported in Windows 8, 8.1, Server 2012 and Linux kernel 2.6.37 or later. In testing UASP performed with up to a 70% faster read / 40% faster write speed over traditional USB 3.2 Gen 1 at peak performance.
More from the Manufacturer
More from the Manufacturer
When multiple devices are connected, traditional single bus USB 3.2 Gen 1 cards share your maximum bandwidth between all ports. By employing four host controller chipsets, each port operates on a separate independent transmission channel. Dedicating up to 5 Gbps to each USB port reduces performance bottlenecks, and effectively quadruples your total available to bandwidth to 20 Gbps.
Enhanced with UASP support (USB Attached SCSI Protocol), this USB 3.2 Gen 1 controller performs up to 70% faster than conventional USB 3.2 Gen 1 when paired with a (Note: UASP requires a compatible operating system). Using a more efficient protocol than the traditional USB BOT (Bulk-Only Transport), UASP technology optimizes transfers by allowing multiple commands to be processed simultaneously, significantly increasing transfer speeds for less wait time on data transfers. See our UASP test results below for further details.
For high-power USB devices, this PCIe USB 3.2 Gen 1 card includes an optional SATA or LP4 power connector to connect to your system power supply and deliver up to 900mA of power per port to USB 3.2 Gen 1 bus-powered devices (500mA for USB 2.0). The USB 3.2 Gen 1 card also supports USB Battery Charging Specification 1.2 (Apple Mode only), letting you charge compatible Apple devices (iPhones and iPads) faster than a standard USB 3.2 Gen 1 port.
The controller card is compliant with USB 3.2 Gen 1 standards while offering backward compatibility with existing USB 2.0 / 1.1 devices. For added versatility, the USB 3.2 Gen 1 PCIe card is equipped with a standard profile bracket and includes a low-profile/half-height bracket for installation in small form-factor computers.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
UASP is supported in Windows 8, 8.1, Server 2012 and Linux kernel 2.6.37 or later. In testing UASP performed with up to a 70% faster read / 40% faster write speed over traditional USB 3.2 Gen 1 at peak performance.
More from the Manufacturer
More from the Manufacturer
- Supports USB Battery Charging Specification 1.2 (Apple Mode only)
- Backward compatible with USB 2.0 and USB 1.0/1.1 devices
- Optional LP4 or SATA power connector provides up to 900mA per USB port
- Supports up to 20 Gbps total transfer bandwidth - Up to 5 Gbps per port
- Includes a Low Profile/half-height installation bracket
- UASP support across all four ports
- Hot-swap feature to connect/disconnect devices without powering down the system
- PCIe x4 interface compliant with PCI Express 2.0 specifications
- Fully compliant with USB 3.2 Gen 1 rev 1.0 and Intel xHCI rev 1.0 specifications
- Provides four external, independent USB 3.2 Gen 1 Ports
Loading...
Product Specifications
-
Additional InformationOS Compatibility: Windows Vista, 7, 8, 8.1, 10 Windows Server 2008 R2, 2012, 2012 R2, 2016, 2019 Linux 2.6.31 to 4.11.x LTS versions only
-
Additional Warranty Information2-Year Limited
-
Brand NameStarTech.com
-
Cord Length9/16 ft
-
Country of OriginMY
-
Depth4-8/10 in.
-
Dimensions7/10 in. X 6/10 in. X 4-8/10 in.
-
Environmentally FriendlyYes
-
Form FactorPlug-in Card
-
Height7/10 in.
-
Host InterfacePCI Express x4
-
Length6.6"
-
Limited Warranty2 Year
-
ManufacturerSTARTECH.COM
-
Manufacturer Part NumberPEXUSB3S44V
-
Number of SATA Ports1
-
Operating System SupportedWindows Vista; Windows 7; Windows 8; Windows 8.1; Windows 10; Windows 11; Windows Server 2008 R2; Windows Server 2012; Windows Server 2016; Windows Server 2019; Linux
-

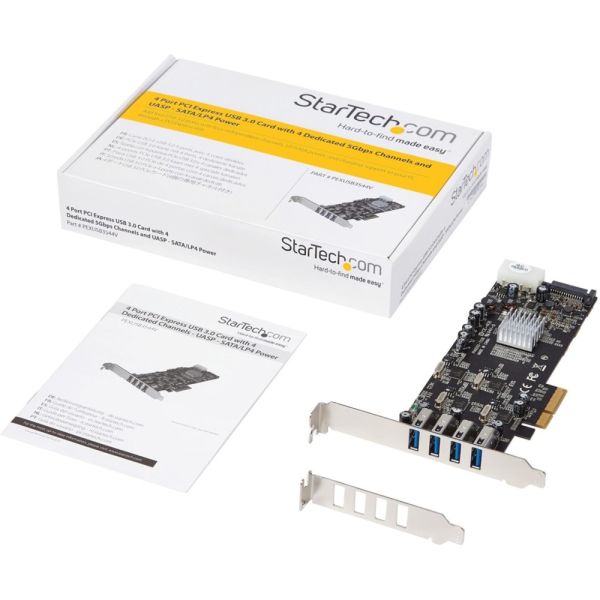

Package Contents4 Port PCIe USB Card 1 x Low Profile Bracket 1 x Driver CD 1 x Instruction Manual
-
Platform SupportedPC Linux
-
Product Name4 Port PCIe USB Card
-
Product TypeUSB Hub
-
RefurbishedN
-
Total Number of USB Ports4
-
UASP SupportYes
-
Width6/10 in.
