StarTech.com 2 Port PCI Express (PCIe) SuperSpeed USB 3.0 Card Adapter with UASP - SATA Power
+4View All
Product Description

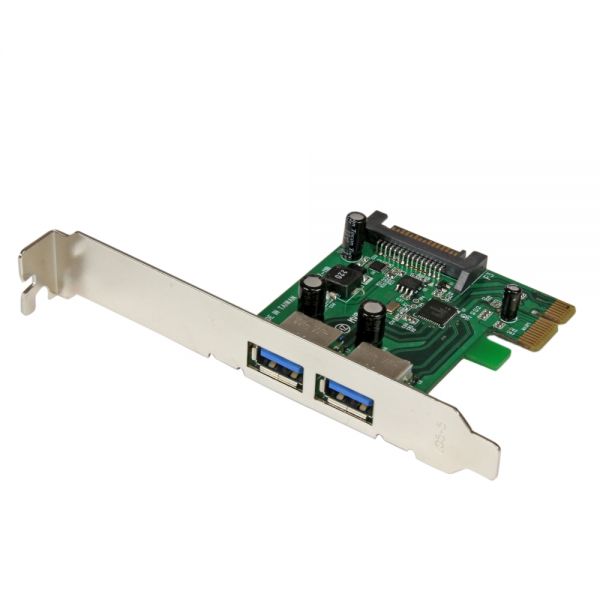

StarTech.com 2 Port PCI Express (PCIe) SuperSpeed USB 3.0 Card Adapter with UASP - SATA Power
Add 2 SuperSpeed USB 3.0 ports with SATA power to your PCI Express-enabled PC - 2 Port PCI Express (PCIe) USB 3.0 Card Adapter with UASP - SATA Power - Dual Port USB 3 PCIe Controller - PCI Express USB 3.0 Add-on Card - 5Gbps USB 3 Adapter Card
The PEXUSB3S24 2-Port PCI Express USB 3.2 Gen 1 Card lets you add two USB 3.2 Gen 1 ports to your PCI Express-enabled computer system, with an optional SATA power connector to connect to your system power supply and deliver up to 900mA of power per port to USB 3.2 Gen 1 bus-powered devices (500mA for USB 2.0).
Enhanced with UASP support (USB Attached SCSI Protocol), this USB 3.2 Gen 1 controller performs up to 70% faster than conventional USB 3.2 Gen 1 when paired with a (Note: UASP is not supported by all operating systems). Using a more efficient protocol than the traditional USB BOT (Bulk-Only Transport), UASP technology optimizes transfers by allowing multiple commands to be processed simultaneously, significantly increasing transfer speeds for less wait time on data transfers. See our UASP test results below for further details.
The PCIe USB 3.2 Gen 1 adapter is compliant with USB 3.2 Gen 1 standards for data transfer speeds up to 5 Gbps, while still offering backward compatibility with existing USB 2.0 / 1.1 devices. For added versatility, the controller card is equipped with a standard profile bracket and includes a low-profile/half-height bracket for installation in small form-factor computers.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
UASP is supported in Windows 8, 8.1, Server 2012 and Linux kernel 2.6.37 or later. In testing UASP performed with up to a 70% faster read / 40% faster write speed over traditional USB 3.2 Gen 1 at peak performance.
At the same peak in testing, UASP also showed up to an 80% reduction in required processor resources.
Test results were obtained using an Intel Ivy Bridge system, StarTech.com add-on USB 3.2 Gen 1 cards, a UASP-enabled StarTech.com enclosure, and a SATA III solid state drive.
More from the Manufacturer
More from the Manufacturer
Enhanced with UASP support (USB Attached SCSI Protocol), this USB 3.2 Gen 1 controller performs up to 70% faster than conventional USB 3.2 Gen 1 when paired with a (Note: UASP is not supported by all operating systems). Using a more efficient protocol than the traditional USB BOT (Bulk-Only Transport), UASP technology optimizes transfers by allowing multiple commands to be processed simultaneously, significantly increasing transfer speeds for less wait time on data transfers. See our UASP test results below for further details.
The PCIe USB 3.2 Gen 1 adapter is compliant with USB 3.2 Gen 1 standards for data transfer speeds up to 5 Gbps, while still offering backward compatibility with existing USB 2.0 / 1.1 devices. For added versatility, the controller card is equipped with a standard profile bracket and includes a low-profile/half-height bracket for installation in small form-factor computers.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
UASP is supported in Windows 8, 8.1, Server 2012 and Linux kernel 2.6.37 or later. In testing UASP performed with up to a 70% faster read / 40% faster write speed over traditional USB 3.2 Gen 1 at peak performance.
At the same peak in testing, UASP also showed up to an 80% reduction in required processor resources.
Test results were obtained using an Intel Ivy Bridge system, StarTech.com add-on USB 3.2 Gen 1 cards, a UASP-enabled StarTech.com enclosure, and a SATA III solid state drive.
More from the Manufacturer
More from the Manufacturer
- Fully compliant with USB 3.2 Gen 1 rev 1.0 and Intel xHCI rev 1.0 specifications
- Includes a Low-Profile/half-height installation bracket
- Supports USB Battery Charging Specification 1.2
- Supports data rates up to 5 Gbps
- Compliant with PCI Express 2.0 specifications
- Optional SATA power connector provides up to 900mA per USB port
- Backward compatible with USB 2.0 and USB 1.0/1.1 devices
- Provides two external USB 3.2 Gen 1 ports with UASP support
Loading...
Product Specifications
-
Additional Warranty Information2-Year Limited
-
Brand NameStarTech.com
-
Cord Length7/32 ft
-
Country of OriginCN
-
Depth2-4/10 in.
-
Dimensions4-7/10 in. X 7/10 in. X 2-4/10 in.
-
Environmentally FriendlyYes
-
Form FactorPlug-in Card
-
Height4-7/10 in.
-
Host InterfacePCI Express x1
-
Length2.6"
-
Limited Warranty2 Year
-
ManufacturerSTARTECH.COM
-
Manufacturer Part NumberPEXUSB3S24
-
Number of SATA Ports1
-
Operating System SupportedWindows Vista; Windows 7; Windows 8; Windows 8.1; Windows 10; Windows Server 2008 R2; Windows Server 2012; Windows Server 2016; Windows Server 2019; Linux
-
Package Contents2 Port PCI Express (PCIe) SuperSpeed USB 3.0 Card Adapter with UASP - SATA Power 1 x Low Profile Bracket 1 x Driver CD 1 x Instruction Manual
-
Platform SupportedPC Linux
-
Product Name2 Port PCI Express (PCIe) SuperSpeed USB 3.0 Card Adapter with UASP - SATA Power
-
Product TypeUSB Hub
-
RefurbishedN
-
TAA CompliantYes
-
Total Number of USB Ports2
-
UASP SupportYes
-
Width7/10 in.
