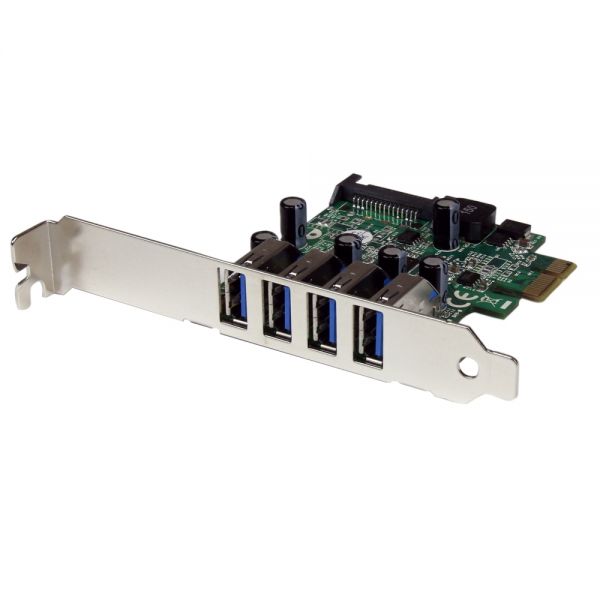

StarTech.com 4 Port PCI Express PCIe SuperSpeed USB 3.0 Controller Card Adapter with UASP - SATA Power
+3View All
Product Description
StarTech.com 4 Port PCI Express PCIe SuperSpeed USB 3.0 Controller Card Adapter with UASP - SATA Power
Add 4 external USB 3.0 ports to a low profile or standard computer, through PCI Express - 4 Port PCI Express SuperSpeed USB 3.0 Controller Card Adapter with UASP - SATA Power - USB 3 PCIe Card - USB 3.0 PCI-e Card - 4 Port USB 3.0 PCI Express Card
The PEXUSB3S4V PCI Express USB 3.2 Gen 1 Card (with SATA Power) adds 4 external USB 3.2 Gen 1 ports to any PCI Express-enabled computer system with support for data rates up to 5 Gbps, while remaining backward compatible with USB 2.0 / 1.x devices.
Enhanced with UASP support (USB Attached SCSI Protocol), this USB 3.2 Gen 1 controller performs up to 70% faster than conventional USB 3.2 Gen 1 when paired with a (Note: UASP requires a compatible operating system). Using a more efficient protocol than the traditional USB BOT (Bulk-Only Transport), UASP technology optimizes transfers by allowing multiple commands to be processed simultaneously, significantly increasing transfer speeds for less wait time on data transfers. See our UASP test results below for further details.
The card uses a "stacked" port layout that places the ports one on top of the other, enabling all four USB 3.2 Gen 1 ports to be external facing, while still allowing the card to fit into a small form factor/low profile computer system using the included low profile bracket.
Plus, with a built-in SATA power connector, each USB port can provide up to 900mA of power to devices that draw power from a host bus connection (500mA for USB 2.0) by connecting to your computer power supply.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
UASP is supported in Windows 8 and Server 2012. In testing UASP performed with up to a 70% faster read / 40% faster write speed over traditional USB 3.2 Gen 1 at peak performance.
At the same peak in testing, UASP also showed up to an 80% reduction in required processor resources.
Test results were obtained using an Intel Ivy Bridge system, StarTech.com add-on USB 3.2 Gen 1 cards, a UASP-enabled StarTech.com enclosure, and a SATA III solid state drive.
More from the Manufacturer
More from the Manufacturer
Enhanced with UASP support (USB Attached SCSI Protocol), this USB 3.2 Gen 1 controller performs up to 70% faster than conventional USB 3.2 Gen 1 when paired with a (Note: UASP requires a compatible operating system). Using a more efficient protocol than the traditional USB BOT (Bulk-Only Transport), UASP technology optimizes transfers by allowing multiple commands to be processed simultaneously, significantly increasing transfer speeds for less wait time on data transfers. See our UASP test results below for further details.
The card uses a "stacked" port layout that places the ports one on top of the other, enabling all four USB 3.2 Gen 1 ports to be external facing, while still allowing the card to fit into a small form factor/low profile computer system using the included low profile bracket.
Plus, with a built-in SATA power connector, each USB port can provide up to 900mA of power to devices that draw power from a host bus connection (500mA for USB 2.0) by connecting to your computer power supply.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
UASP is supported in Windows 8 and Server 2012. In testing UASP performed with up to a 70% faster read / 40% faster write speed over traditional USB 3.2 Gen 1 at peak performance.
At the same peak in testing, UASP also showed up to an 80% reduction in required processor resources.
Test results were obtained using an Intel Ivy Bridge system, StarTech.com add-on USB 3.2 Gen 1 cards, a UASP-enabled StarTech.com enclosure, and a SATA III solid state drive.
More from the Manufacturer
More from the Manufacturer
- Backward compatible with USB 2.0 and USB 1.0/1.1 devices
- Includes a Low Profile/half-height installation bracket
- Optionally provides up to 900mA per USB port
- UASP support for more efficient data transfer
- Fully compliant with USB 3.0 revision 1.0 specifications and Intel xHCI rev0.95 specifications
- Built-in optional SATA power connector for bus-powered USB devices
- Compliant with PCI Express 2.0 specifications
- 4 external USB 3.0 ports in a stacked layout
Loading...
Product Specifications
-
Additional InformationOS Compatibility: Windows XP, Vista, 7, 8, 8.1, 10 Windows Server 2003, 2008 R2, 2012, 2012 R2, 2016, 2019
-
Additional Warranty Information2-Year Limited
-
Brand NameStarTech.com
-
Cord Length1/4 ft
-
Country of OriginCN
-
Data Transfer Rate5368709100
-
Depth3 in.
-
Dimensions2-7/10 in. X 7/10 in. X 3 in.
-
Environmental CertificationRoHS
-
Environmental ComplianceWaste Electrical and Electronic Equipment Directive (WEEE)
-
Environmentally FriendlyYes
-
Form FactorPlug-in Card
-
Height2-7/10 in.
-
Host InterfacePCI Express x1
-
Length3"
-
Limited Warranty2 Year
-
ManufacturerSTARTECH.COM
-
Manufacturer Part NumberPEXUSB3S4V
-
Number of SATA Ports1
-
Operating System SupportedWindows XP; Windows Vista; Windows 7; Windows 8; Windows 8.1; Windows 10; Windows 11; Windows Server 2003; Windows Server 2008 R2; Windows Server 2012; Windows Server 2016; Windows Server 2019
-
Package Contents4 Port PCI Express PCIe SuperSpeed USB 3.0 Controller Card Adapter with UASP 1 x Low Profile Bracket 1 x Driver CD 1 x Instruction Manual
-
Platform SupportedPC
-
Product Name4 Port PCI Express PCIe SuperSpeed USB 3.0 Controller Card Adapter with UASP
-
Product TypeUSB Hub
-
RefurbishedN
-
TAA CompliantYes
-
Total Number of USB Ports4
-
UASP SupportYes
-
Width7/10 in.
