StarTech.com 4-Port Industrial USB 3.0 5Gbps Hub, Rugged USB Hub with ESD Protection, DIN/Wall/Desk Mountable, USB-A Expansion Hub, TAA
Product #:
ETLZ1076289146
+5View All
Product Description
StarTech.com 4-Port Industrial USB 3.0 5Gbps Hub, Rugged USB Hub with ESD Protection, DIN/Wall/Desk Mountable, USB-A Expansion Hub, TAA
4-port metal USB hub for industrial environment; Driverless; USB 5Gbps - Wall / desk / DIN rail mount - DC barrel or terminal block power w/ 5 to 24V DC source (not incl.) - BC 1.2 charging with power source - 8kV Air / 4kV Contact ESD protection
Increase USB scalability in industrial environments, product and repair labs, conference rooms or office workstations, using this 4-Port Industrial USB Hub.
Functional in Harsh Environments
This industrial USB hub delivers reliable performance in harsh environments with its heavy-duty, metal housing.
Perfect for factory environments, the rugged hub features ESD protection to each USB port, which aids in preventing damage to any connected devices.

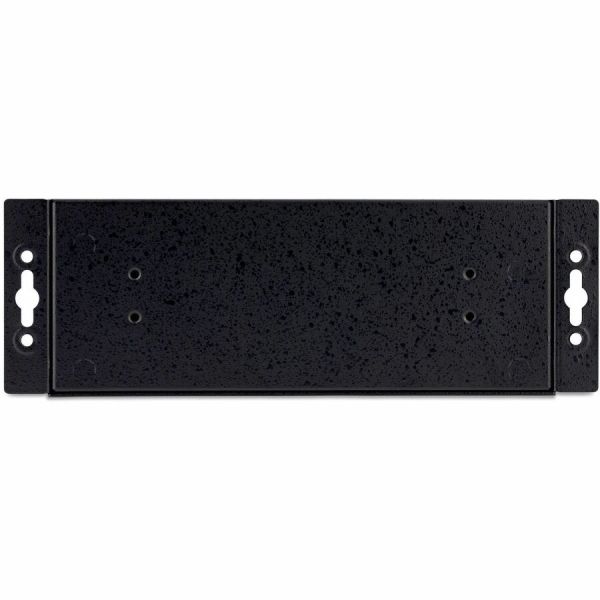

Mount to a Wall, Desk or DIN-Rail

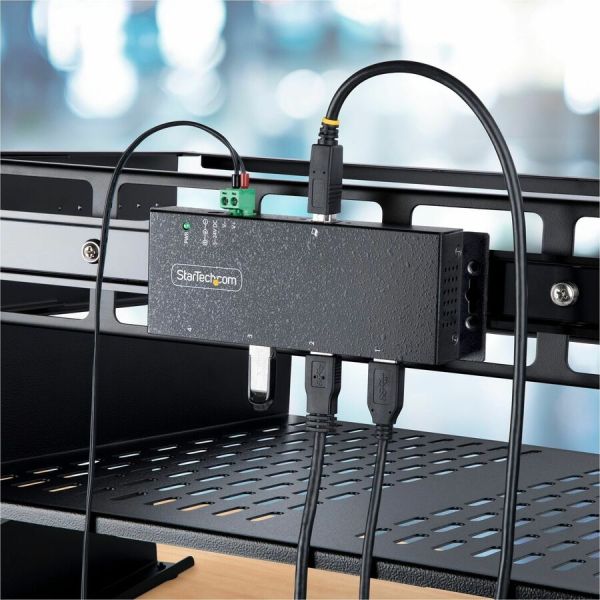

Install the hub where it's best suited for your application. Securely mount the hub to a variety of surfaces, including a wall, desk, or rack, using the built-in mounting brackets and included hardware.
Connect and Charge USB Devices
This robust heavy-duty USB 3.0 hub offers four connection ports for connecting USB devices/peripherals.
The industrial USB hub supports 5-24V DC terminal block input, giving you the flexibility to power the hub as required, based on your own power input options.
StarTech.com offers external power adapters, ITB20D3250 and SVA12M5NA, sold separately.
With the optional power adapter, the hub supports USB battery charging specification 1.2, delivering up to 2.4A on any port to a maximum of 30W total, so you can charge your mobile devices faster than traditional USB ports allow.
Wide Device Compatibility
The hub is OS independent ensuring support on a wide range of platforms including Windows, macOS and Linux.
Functional in Harsh Environments
This industrial USB hub delivers reliable performance in harsh environments with its heavy-duty, metal housing.
Perfect for factory environments, the rugged hub features ESD protection to each USB port, which aids in preventing damage to any connected devices.
Mount to a Wall, Desk or DIN-Rail
Install the hub where it's best suited for your application. Securely mount the hub to a variety of surfaces, including a wall, desk, or rack, using the built-in mounting brackets and included hardware.
Connect and Charge USB Devices
This robust heavy-duty USB 3.0 hub offers four connection ports for connecting USB devices/peripherals.
The industrial USB hub supports 5-24V DC terminal block input, giving you the flexibility to power the hub as required, based on your own power input options.
StarTech.com offers external power adapters, ITB20D3250 and SVA12M5NA, sold separately.
With the optional power adapter, the hub supports USB battery charging specification 1.2, delivering up to 2.4A on any port to a maximum of 30W total, so you can charge your mobile devices faster than traditional USB ports allow.
Wide Device Compatibility
The hub is OS independent ensuring support on a wide range of platforms including Windows, macOS and Linux.
- 4-PORT INDUSTRIAL USB HUB: USB 5Gbps expansion hub w/metal enclosure for durability in harsh environments; Provides 4 USB 3.0 Type-A Downstream Facing Ports (DFP); 5Gbps shared; 6ft A-B host cable; USB Event Monitoring utility (available for download)
- ESD PROTECTION: Heavy-duty USB hub with integrated electrostatic discharge safeguards; Protects connected devices with up to 8kV air and 4kV contact ESD protection

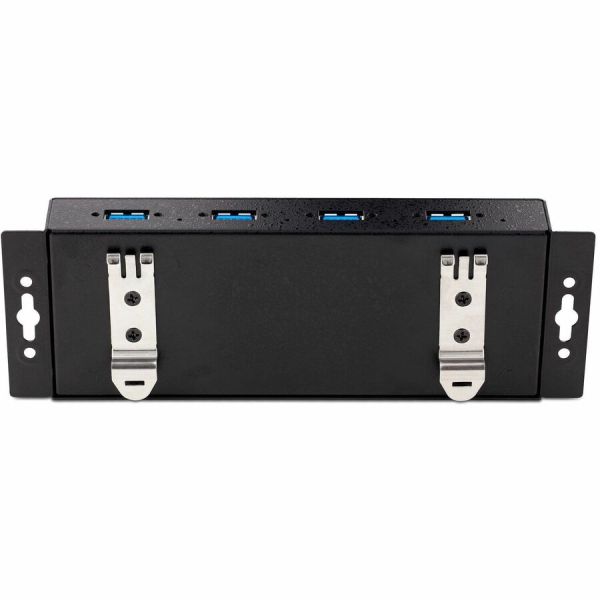

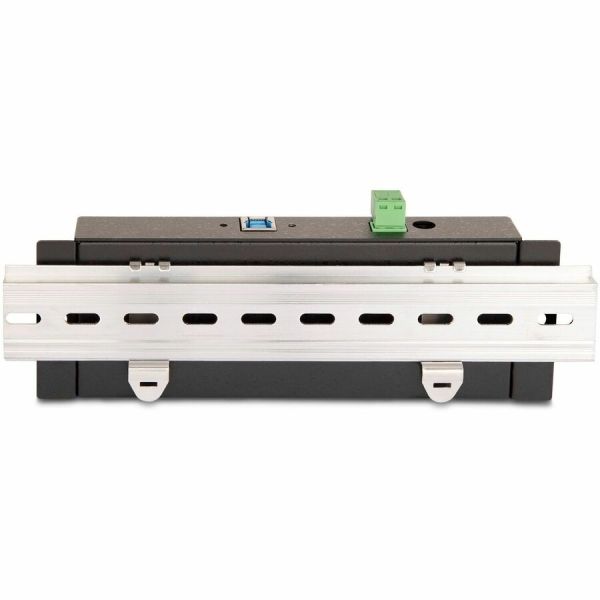

- FLEXIBLE MOUNTING OPTIONS: Built-in mounting brackets for wall or desk installation; DIN rail mounting hardware included; Screw-lock connectors on host and device ports to ensure a reliable and secure connection

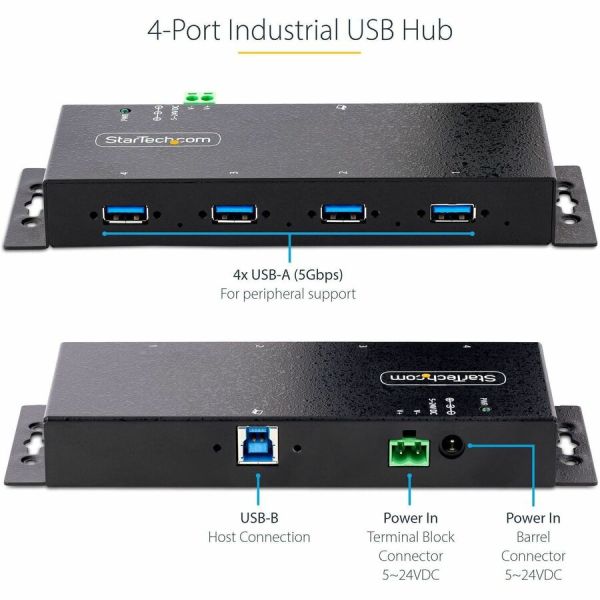

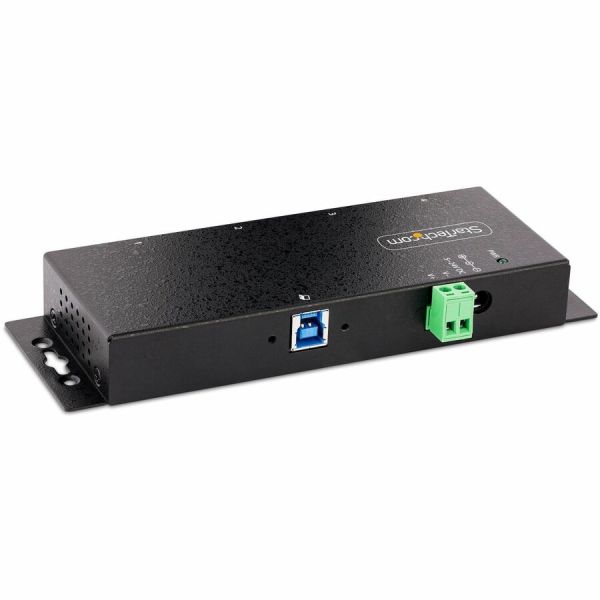

- POWER OPTIONS: Rugged multiport hub is powered by either the DC barrel connection or terminal block using a 5 to 24V DC source (DC source not incl.); Optional power adapter available ITB20D3250 (sold separately) to power the hub via 2-wire terminal block
- POWER & CHARGE: When connected to a power source, the mountable port expander hub supports BC 1.2 charging; Each port supports 12W (2.4A); Overcurrent protection protects connected devices from overdrawing power
- USB 3.2 (Gen 1) Type B host interface for reliable data transfer and enhanced performance
- Featuring 4 USB ports to connect USB-compatible devices
- USB Hub provides an affordable firewall solution for your PC
Loading...
Product Specifications
-
Brand NameStarTech.com
-
Country of OriginTaiwan
-
Environmental ComplianceRestriction of Hazardous Substances (RoHS) Waste Electrical and Electronic Equipment Directive (WEEE)
-
Environmentally FriendlyYes
-
Form FactorWall/Desktop/DIN Rail Mountable
-

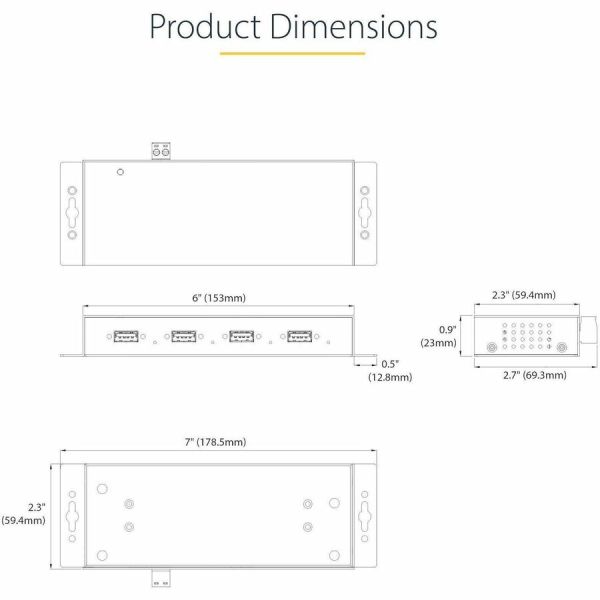

Height0.9"
-
Host InterfaceUSB 3.2 (Gen 1) Type B
-
Length7"
-
Limited Warranty2 Year
-
Manufacturer Part Number5G4AINDNP-USB-A-HUB
-
Number of USB 3.2 Ports4
-

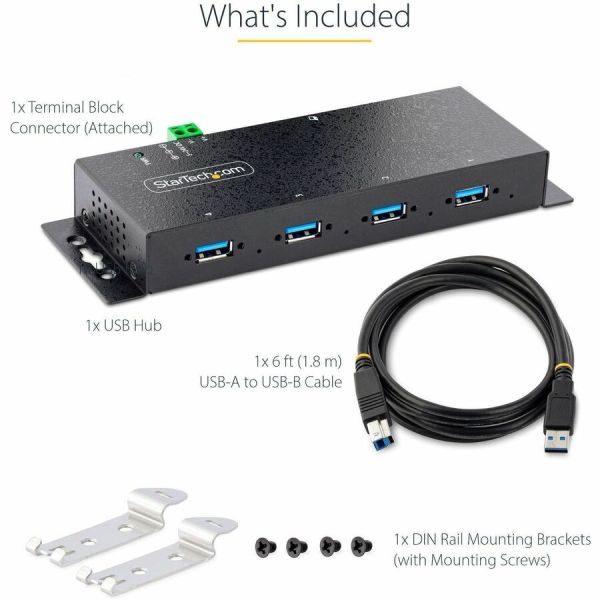

Package ContentsUSB Hub 1 x 6 ft [1.8 m] USB-A to USB-B Cable 1 x Terminal Block Connector (Attached) 1 x DIN Rail Mounting Brackets (With Mounting Screws) 1 x Quick-Start Guide
-
Platform SupportedPC
-
Product ColorBlack
-
Product NameUSB Hub
-
Product TypeUSB Hub
-
Total Number of USB Ports4
-
Width2.3"
