HighPoint 4-Bay M.2 NVMe RAID Storage Solution
Product #:
IGRM7CL519
+9View All
Sold Out
This product is sold out and we do not know when we will be getting another shipment. We apologize for any inconvenience this may cause.
Check similar items above to see if a replacement product is available.
Product Description

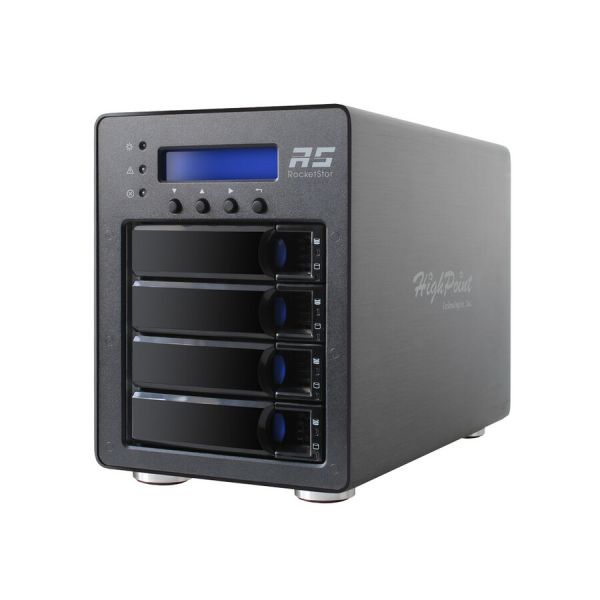

HighPoint 4-Bay M.2 NVMe RAID Storage Solution
4 x SSD Supported - NVMe Controller - RAID Supported - 0, 1, 10 RAID Levels - 4 x Total Bays - Desktop
The Fastest External Desktop Storage - 14,000MB/s! Powered by M.2 NVMe SSD's
Blistering 14,000 MB/s Transfer Performance!
4x Faster than Thunderbolt 3!
Up to four M.2 NVMe SSD's
PCIe 3.0 x16 Host Interface
Windows, Linux & macOS platforms
The SSD6540M is designed for professional grade, performance-hungry applications that demand uncompromised transfer bandwidth.
The unique NVMe architecture provides dedicated PCIe 3.0 x4 bandwidth for each drive-bay; this allows each M.2 SSD to interface directly with the platform's CPU, and deliver sustained transfer performance in excess of 14,000MB/s - faster than any other external desktop RAID storage solution in today's marketplace!
PCIe Gen3 x16 NVMe RAID Turnkey Solution
The SSD6540M is the industry's first external NVMe storage solution to deliver uncompromised end-to-end PCIe Gen 3.0 x16 transfer bandwidth. Our innovative external data cables work in conjunction with the removable M.2 drive bays to deliver dedicated PCIe 3.0 x4 transfer bandwidth; this unique, performance-focused architecture ensures each M.2 SSD operates at peak performance. The SSD6540M is a complete, stand-alone solution, and includes a 4-Bay NVMe M.2 enclosure, PCIe 3.0 x16 controller card with external SFF-8644 connectors, two SFF- 8644 PCIe Gen3 x8 data cables, and all necessary fastening and power accessories.
Powered by Proven RAID Technology
The SSD6540M is powered by our industry proven NVMe RAID technology, and can accommodate a variety of RAID and non-RAID storage configurations, including single M.2 SSD's and multiple RAID arrays.
RAID 0: Also known as a "stripe" array. This mode delivers Maximum Performance, and requires 2 to 4 M.2 SSD's.
RAID 1: This mode creates a hidden duplicate of the target M.2 SSD, and requires 2 drives.
RAID 1/0: Mirrored Stripe arrays. This mode requires 4 M.2 SSD's - it will mirror the data of one stripe array to a second, hidden stripe array for security.
Robust & Simple NVMe RAID Management
Each SSD6540M RAID Enclosure includes a simple, intuitive web-based management interface. A Quick Configuration menu allows new users to get everything up and running with a few simple clicks. Experienced Pros can fine tune configurations for specific applications using the Advanced Options menu.
Integrated TRIM & S.M.A.R.T. Monitoring with Terabyte Written (TBW) Tracking: TRIM streamlines performance and expands the lifespan of NVMe storage by enabling each SSD to handle garbage collection more efficiently, which helps eliminate write speed degradation. S.M.A.R.T. monitoring allows you to check the temperature, voltage and TBW of each NVMe SSD.
Rapidly Adapts to Changing Workflows
The SSD6540M's flexible architecture enables you to
adapt or transform NVMe storage to meet the needs of
each application.
A single SSD6540M enclosure can be shared between multiple desktops and workstations - the included controller card is also available as a standalone accessory, and can be installed into any system with a free dedicated PCIe 3.0 x16 slot.
In addition, M.2 SSD's hosted by the SSD6540M can be installed into any M.2 capable SSD7100 series RAID controller; your array and data will remain intact and accessible.
Blistering 14,000 MB/s Transfer Performance!
4x Faster than Thunderbolt 3!
Up to four M.2 NVMe SSD's
PCIe 3.0 x16 Host Interface
Windows, Linux & macOS platforms
The SSD6540M is designed for professional grade, performance-hungry applications that demand uncompromised transfer bandwidth.
The unique NVMe architecture provides dedicated PCIe 3.0 x4 bandwidth for each drive-bay; this allows each M.2 SSD to interface directly with the platform's CPU, and deliver sustained transfer performance in excess of 14,000MB/s - faster than any other external desktop RAID storage solution in today's marketplace!
PCIe Gen3 x16 NVMe RAID Turnkey Solution
The SSD6540M is the industry's first external NVMe storage solution to deliver uncompromised end-to-end PCIe Gen 3.0 x16 transfer bandwidth. Our innovative external data cables work in conjunction with the removable M.2 drive bays to deliver dedicated PCIe 3.0 x4 transfer bandwidth; this unique, performance-focused architecture ensures each M.2 SSD operates at peak performance. The SSD6540M is a complete, stand-alone solution, and includes a 4-Bay NVMe M.2 enclosure, PCIe 3.0 x16 controller card with external SFF-8644 connectors, two SFF- 8644 PCIe Gen3 x8 data cables, and all necessary fastening and power accessories.
Powered by Proven RAID Technology
The SSD6540M is powered by our industry proven NVMe RAID technology, and can accommodate a variety of RAID and non-RAID storage configurations, including single M.2 SSD's and multiple RAID arrays.
RAID 0: Also known as a "stripe" array. This mode delivers Maximum Performance, and requires 2 to 4 M.2 SSD's.
RAID 1: This mode creates a hidden duplicate of the target M.2 SSD, and requires 2 drives.
RAID 1/0: Mirrored Stripe arrays. This mode requires 4 M.2 SSD's - it will mirror the data of one stripe array to a second, hidden stripe array for security.
Robust & Simple NVMe RAID Management
Each SSD6540M RAID Enclosure includes a simple, intuitive web-based management interface. A Quick Configuration menu allows new users to get everything up and running with a few simple clicks. Experienced Pros can fine tune configurations for specific applications using the Advanced Options menu.
Integrated TRIM & S.M.A.R.T. Monitoring with Terabyte Written (TBW) Tracking: TRIM streamlines performance and expands the lifespan of NVMe storage by enabling each SSD to handle garbage collection more efficiently, which helps eliminate write speed degradation. S.M.A.R.T. monitoring allows you to check the temperature, voltage and TBW of each NVMe SSD.
Rapidly Adapts to Changing Workflows
The SSD6540M's flexible architecture enables you to
adapt or transform NVMe storage to meet the needs of
each application.
A single SSD6540M enclosure can be shared between multiple desktops and workstations - the included controller card is also available as a standalone accessory, and can be installed into any system with a free dedicated PCIe 3.0 x16 slot.
In addition, M.2 SSD's hosted by the SSD6540M can be installed into any M.2 capable SSD7100 series RAID controller; your array and data will remain intact and accessible.
- DAS Storage System offers maximum storage efficiency and convenience
- Through RAID levels (0, 1, 10), RAID provides data reliability, fault tolerance and improves overall performance
- Desktop form factor allows hassle-free and easy usage with increased efficiency
Product Specifications
-
Brand NameHighPoint
-
Controller TypeNVMe
-
Country of OriginChina
-
Depth10.2"
-
Environmentally FriendlyYes
-
Form FactorDesktop
-
Height7.7"
-
Host InterfaceMini-SAS HD
-
Limited Warranty2 Year
-
Limited Warranty Duration2 Year
-
Manufacturer Part NumberSSD6540M
-
Maximum Power Supply Wattage250 W
-
Number of Solid State Drive InstalledNo
-
Number of Solid State Drive Supported4
-
Number of Total Expansion Bays4
-
Package Contents4-Bay M.2 NVMe RAID Storage Solution 1 x PCIe 3.0 x16 RAID Controller 2 x SFF-8644 8X Cables 1 x Quick Installation Guide
-
Product ModelSSD6540M
-
Product Name4-Bay M.2 NVMe RAID Storage Solution
-
Product TypeDAS Storage System
-
RAID Levels0, 1, 10
-
RAID SupportedYes
-
Width5.7"
