Eaton Tripp Lite Series SmartRack 8U/12U/22U Expandable Very Low-Profile Patch-Depth Wall-Mount 2-Post Open-Frame Rack
Product #:
SYNX4367820
Sold Out
This product is sold out and we do not know when we will be getting another shipment. We apologize for any inconvenience this may cause.
Check similar items above to see if a replacement product is available.
Product Description

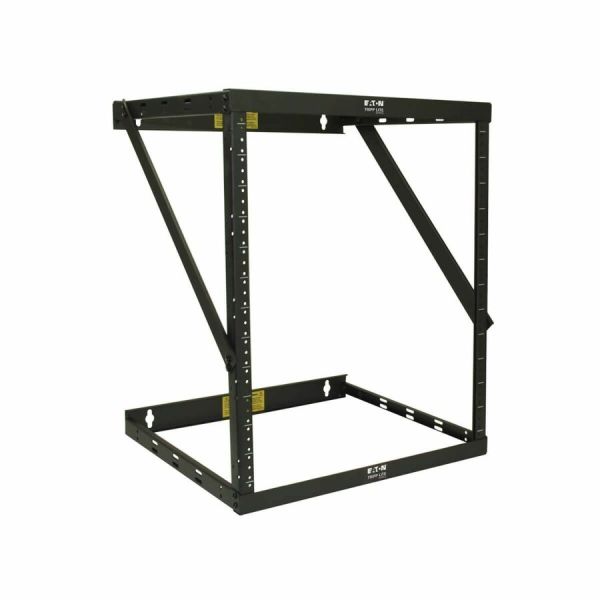

Eaton Tripp Lite Series SmartRack 8U/12U/22U Expandable Very Low-Profile Patch-Depth Wall-Mount 2-Post Open-Frame Rack
For Patch Panel - 8U Rack Height x 19" Rack Width x 11.50" Rack Depth - Wall Mountable - Black Powder Coat - Steel - 150 lb Maximum Weight Capacity
The SRWO8U22MD SmartRack 8U/12U/22U Expandable Very Low-Profile Wall-Mount 2-Post Open-Frame Rack is ideal for storing patch panels and other shallow equipment in secure IT areas with limited floor space. Mounted to the wall or resting on the floor, this rack offers fast, easy access to network components and cabling. It's compatible with EIA-standard 19-inch rack equipment that supports two-post mounting and a maximum mounting depth of 11.5 inches.
Constructed from heavy-duty steel in a durable black powder-coated finish, the open-frame rack has a maximum load capacity of 150 pounds. The expandable design allows you to assemble the rack in an 8U, 12U or 22U configuration to meet your current needs, while leaving rack space in reserve for future expansion. It saves precious space and allows IT managers easy access for organizing, installing and servicing equipment and cabling.
The rack is easy to assemble using the included hardware. The vertical mounting rails have threaded 12-24 holes for securing equipment to the steel frame.
More from the Manufacturer
Constructed from heavy-duty steel in a durable black powder-coated finish, the open-frame rack has a maximum load capacity of 150 pounds. The expandable design allows you to assemble the rack in an 8U, 12U or 22U configuration to meet your current needs, while leaving rack space in reserve for future expansion. It saves precious space and allows IT managers easy access for organizing, installing and servicing equipment and cabling.
The rack is easy to assemble using the included hardware. The vertical mounting rails have threaded 12-24 holes for securing equipment to the steel frame.
More from the Manufacturer
- Maximum load capacity of 150 lb.
- Secures 19 in. rack equipment up to 11.5 in. deep
- Configures to 8U, 12U or 22U of rack space
- Heavy-duty steel construction designed to last
- Easy to assemble with included hardware
- Rack Frame allows quick and easy retrieval of your items with better organizing and feasible mounting
- Comes in black powder coat color for a sophisticated and dazzling loo
- Built with steel to offer great resistance to damage and deterioration
- Wall mountable rack frame is Ideal for permanent placement with added space efficiency
- Patch Panel application, usage for easy accessibility with items, valuables, equipment organizational, storage, placement convenience
Product Specifications
-
Application/UsagePatch Panel
-
Assembly RequiredYes
-
Brand NameTripp Lite series
-
Country of OriginChina
-
Depth12"
-
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
-
Environmentally FriendlyYes
-
Form FactorWall Mountable
-
Height17.8"
-
Limited Warranty5 Year
-
Manufacturer Part NumberSRWO8U22MD
-
Maximum Weight Capacity150 lb
-
Package ContentsSmartRack SRWO8U22MD Rack Frame 24 x 12-24 Equipment Mounting Screws 16 x M5 Button-Head Cap Screws 8 x M6 x 12 Phillips-Head Screws 2 x Short Vertical Mounting Rails 2 x Long Vertical Mounting Rails 2 x Mounting Rail Tie Plates 2 x Metal Support Straps 2 x Top/bottom Panel Frames 8 x Zip Ties 3 mm L-Shaped Hex Key Owner's Manual
-
Product ColorBlack Powder Coat
-
Product LineSmartRack
-
Product MaterialSteel
-
Product ModelSRWO8U22MD
-
Product NameSmartRack SRWO8U22MD Rack Frame
-
Product TypeRack Frame
-
Rack Height8U
-
Rack Width19"
-
Width20.1"
