ATEN HDMI HDBaseT Extender (4K@100m) (HDBaseT Class A)-TAA Compliant

Product #: SYNX5256831
Sold Out

This product is sold out and we do not know when we will be getting another shipment. We apologize for any inconvenience this may cause.

Check similar items above to see if a replacement product is available.

Product Description

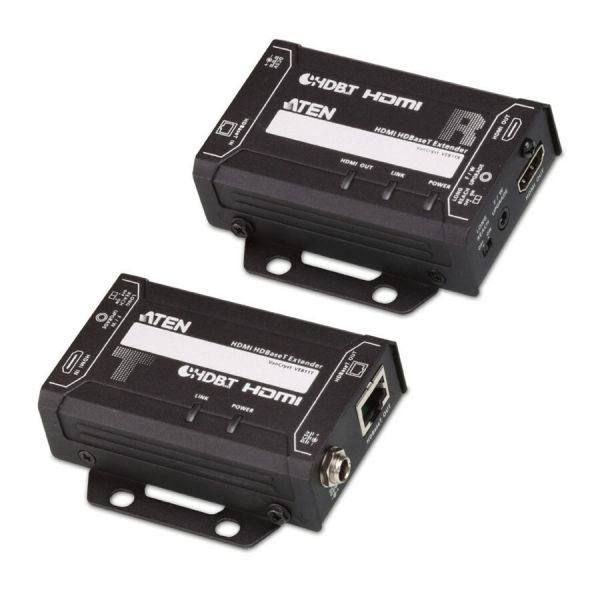

ATEN HDMI HDBaseT Extender (4K@100m) (HDBaseT Class A)-TAA Compliant
1 Input Device - 1 Output Device - 492.13 ft Range - 2 x Network (RJ-45) - 1 x HDMI In - 1 x HDMI Out - 4K - 4096 x 2160 - Twisted Pair - Category 6a - Surface-mountable, Rack-mountable
The ATEN VE811 HDMI HDBaseT Extender guarantees the optimum HDMI connection up to 100 m over a single Cat 5e/6/6a or ATEN 2L-2910 Cat 6 cable. The VE811 meets HDMI Specification features including 3D, Deep Color, HD lossless audio formats and CEC pass-through. It supports Dolby Digital 5.1, DTS HD audio and video signals at resolutions up to 4K. In addition, the VE811 supports long reach mode, providing an effective means for extending HDMI signals up to 150m over a single Cat 5e/6 cable.

Pushing the technology and design to the limit, the compact design makes the VE811 easy to mount in any location. Engineered for today's digital trends, the VE811 is ideal for meeting rooms, or any setting that requires high quality HDMI video to be extended for great distances.
More from the Manufacturer
  • HDBaseT Connectivity - extends an HDMI connection up to 100m via a single Cat 5e/6/6a or ATEN 2L-2910 Cat 6 cable
  • Supports HDBaseT Long Reach Mode - up to 150 m via a single Cat 5e/6 cable at resolutions up to 1080p
  • HDMI (3D, Deep Color, 4K)
  • HDCP 2.2 compatible
  • Supports resolutions of up to Ultra HD 4kx2k and 1080p Full HD
  • Consumer Electronic Control (CEC) allows interconnected HDMI devices to communicate and respond to a single remote control
  • Supports wide screen format
  • Plug and play - no software required
  • Built- in 8KV/ 15 KV ESD protection
  • Rack Mountable
  • Video Extender Transmitter/Receiver is all you need for dependable and productive audio/video transmission
  • 4096 x 2160 maximum video resolution for a spectacular, sharp display with added reliability
  • HDMI in allows convenient transfer of content and data to video extender transmitter/receiver to ensure maximum dependability
  • Twisted pair media type is very easy to connect and can carry both analog and digital data at the same time for maximum connection efficiency
  • The VE811 video extender transmitter/receiver provides plenty of freedom with wired connectivity
  • 1 input devices supported for maximum feasibility and usage convenience
  • 1 output devices supported for maximum feasibility and usage convenience
  • 492.13 ft maximum operating distance for feasible operation and optimal coverage
  • 4K graphics mode for an immersive and sharp viewing experience
  • Surface-mountable form factor for your convenience and simplicity of usage
Related Articles
Need more information? Ask a Question

Product Specifications

  • Brand Name
    ATEN
  • Connectivity Technology
    Wired
  • Country of Origin
    Taiwan
  • Environmental Compliance
    Waste Electrical and Electronic Equipment Directive (WEEE) Restriction of Hazardous Substances (RoHS)
  • Environmentally Friendly
    Yes
  • Form Factor
    Rack-mountable Surface-mountable
  • Graphics Modes
    4K
  • HDMI In
    Yes
  • HDMI Out
    Yes
  • Manufacturer Part Number
    VE811
  • Maximum Operating Distance
    492.13 ft
  • Maximum Video Resolution
    4096 x 2160
  • Media Type Supported
    Twisted Pair
  • Network (RJ-45)
    Yes
  • Number of HDMI Inputs
    1
  • Number of HDMI Outputs
    1
  • Number of Input Devices Supported
    1
  • Number of Network (RJ-45) Ports
    2
  • Number of Output Devices Supported
    1
  • Package Contents
    1 x VE811T HDMI HDBaseT Transmitter 1 x VE811R HDMI HDBaseT Receiver 2 x Power Adapters 1 x User Instructions
  • Product Line
    VanCryst
  • Product Model
    VE811
  • Product Name
    HDMI HDBaseT Extender (4K@100m) (HDBaseT Class A)
  • Product Type
    Video Extender Transmitter/Receiver
  • Transmitter Depth
    3.40"
  • Transmitter Height
    0.97"
  • Transmitter Weight (Approximate)
    11.64 oz
  • Transmitter Width
    2.87"
  • Twisted Pair Cable Standard
    Category 6a
