Line StarTech.com 2 Port PCIe Serial Adapter Card with 16550
Product #:
ODFN949074
+5View All
Sold Out
This product is sold out and we do not know when we will be getting another shipment. We apologize for any inconvenience this may cause.
Check similar items above to see if a replacement product is available.
Product Description

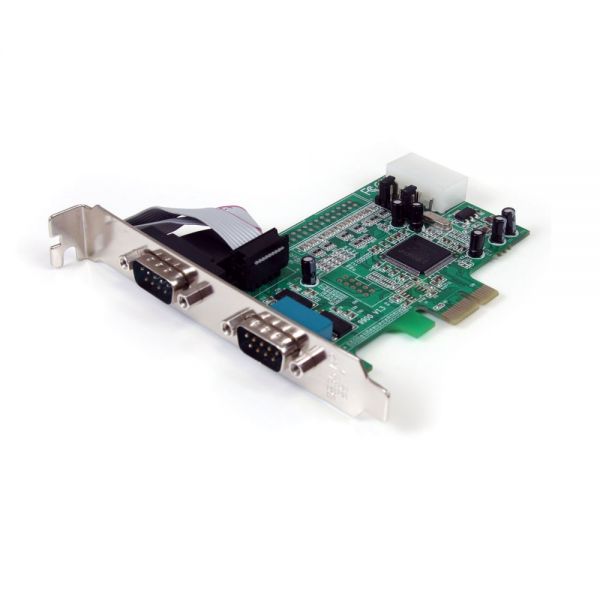

Line StarTech.com 2 Port PCIe Serial Adapter Card with 16550
2-port PCI Express RS232 serial controller card 16550 UART/ASIX MCS9922CV-AA - Bi-directional speeds 460.8Kbps/port | 128 byte FIFO | Pin 9 pwr out 5v/12v/none - Expansion card w/ Std bracket (low profile incl) - Win/Linux
The PEX2S553 PCI Express serial card lets you turn a PCI Express slot into 2 RS232 (DB9) serial ports. Based on a native single chip design (no bridge chip), this 2-port serial adapter card allows you to harness the full capability offered by PCI Express (PCIe), and reducing the load applied to the CPU by as much as 48% over conventional serial cards.
The RS232 Serial Adapter Card (PEX2S553) is compatible with a broad range of operating systems including Windows and Linux Kernel 2.6.11 to 4.11.x, and MAC OS 10.4 and above.
Plus, the serial card includes an optional half-height/low profile bracket that allows the card to be installed in any PCI Express slot, regardless of the size of the computer case.
This product is a replacement for our PEX2S552 card.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
More from the Manufacturer
More from the Manufacturer
The RS232 Serial Adapter Card (PEX2S553) is compatible with a broad range of operating systems including Windows and Linux Kernel 2.6.11 to 4.11.x, and MAC OS 10.4 and above.
Plus, the serial card includes an optional half-height/low profile bracket that allows the card to be installed in any PCI Express slot, regardless of the size of the computer case.
This product is a replacement for our PEX2S552 card.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
More from the Manufacturer
More from the Manufacturer
- Native single-Chip, single lane PCI Express
- Automated in-band software flow control using programmable Xon/Xoff in both directions
- 128-byte deep FIFO per transmitter and receiver
- Compliant with PCI Express base specifications revision 1.0a
- Includes half-height/low profile mounting bracket
- Selectable power output on pin 9 for the serial port
- Automated out-of-band flow control using CTS/RTS and DSR/DTR
- Two high speed RS232 serial ports with support for data transfer rates up to 460.8 Kbps
Product Specifications
-
Additional InformationNative single-chip, single lane PCI Express chipset delivers true PCIe performance. Standard and low profile/half-height bracket included to ensure fitment in any system. Easy to install and use with full step-by-step instructions saving time and hassle. OS Compatibility: Windows DOS, 95, 98SE, 2000, CE 5.0/6.0, Embedded System 2009, POS Ready 2009, XP Embedded, XP, Vista, 7, 8, 8.1, 10 Windows Server 2003, 2008 R2, 2012, 2012 R2, 2016, 2019 Mac OS X 10.4 to 10.10 Linux kernel 2.6.x to 4.11.x LTS Versions only
-
Additional Warranty Information2-Year Limited
-
Brand NameStarTech.com
-
Card HeightHalf-height/Low-profile
-
Country of OriginCN
-
Data Transfer Rate460.8kB/s
-
Environmentally FriendlyYes
-
Form FactorPlug-in Card
-
Height0.8"
-
Host InterfacePCI Express x1
-
Length4.1"
-
Limited Warranty2 Year
-
ManufacturerSTARTECH.COM
-
Manufacturer Part NumberPEX2S553
-
ModelPEX2S553
-
Number of Serial Ports (External)2
-
Package Contents2 Port PCIe Serial Adapter Card with 16550 Low Profile Brackets Driver CD Instruction Manual
-
Platform SupportedPC Mac Linux
-
Product ModelPEX2S553
-
Product Name2 Port PCIe Serial Adapter Card with 16550
-
Product TypeLaptop Charger
-
RefurbishedN
-
UART Type16550
-
Width4.7"
