StarTech.com PCI Express (PCIe) Gigabit Ethernet Multimode SC Fiber Network Card Adapter

Product #: ODFN520916
$199.61
Ships Free - This items ships free with your order
Delivered by Fri 12/12 Mon 12/15 - This is an estimated delivery timeline
Non-returnable - This is a non-returnable item

Product Description

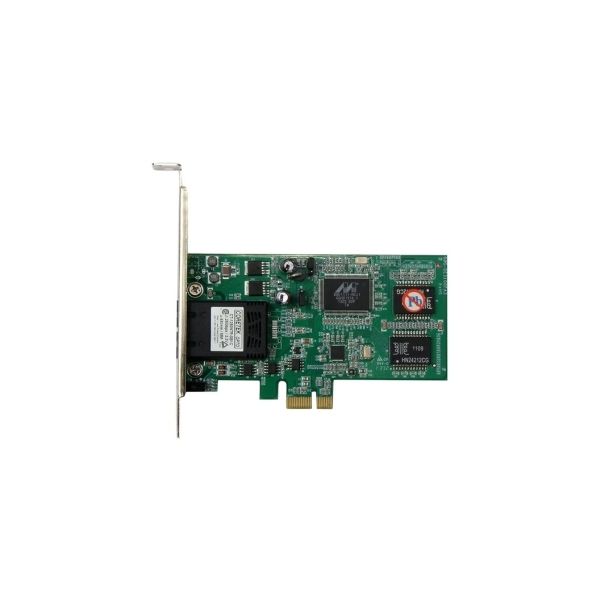

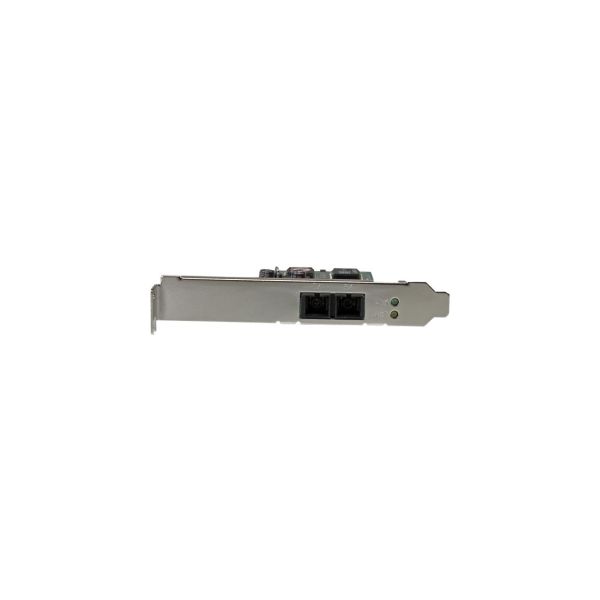

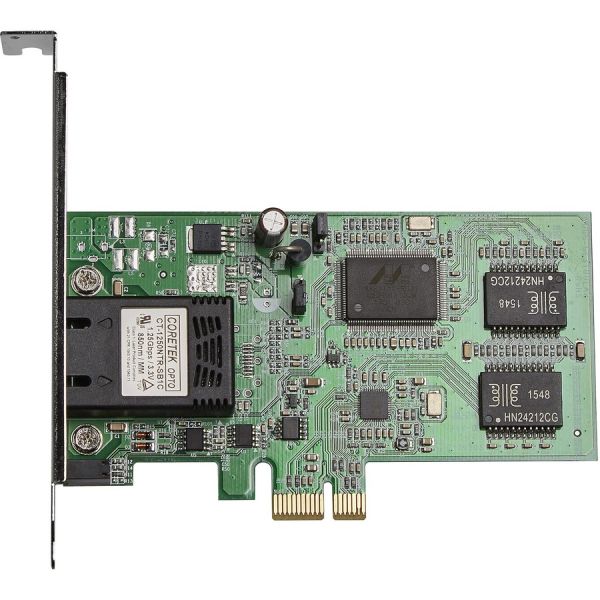

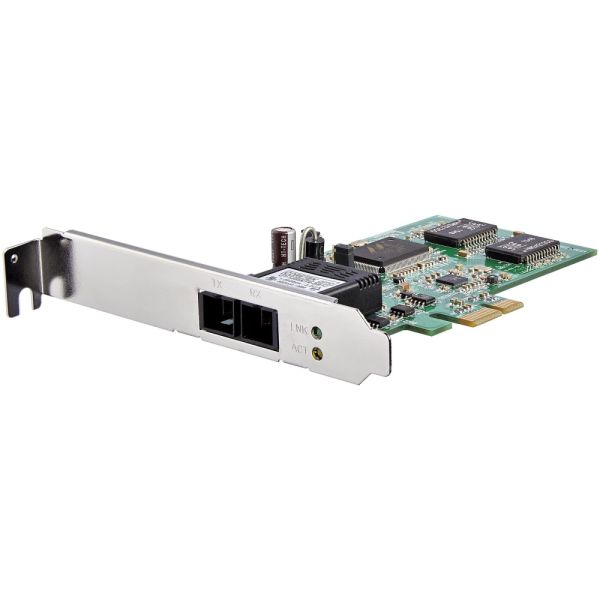

StarTech.com PCI Express (PCIe) Gigabit Ethernet Multimode SC Fiber Network Card Adapter
Connect a PCIe based desktop or rackmount PC directly to a Gigabit multimode SC fiber optic network - PCI Express Gigabit Ethernet Multimode SC Fiber Network Card Adapter NIC - 550m - PCIe GbE Fiber Optic Network Card - SC Fiber Gigabit Ethernet Card
The PEX1000MMSC2 PCIe Gigabit Fiber Network Card lets you connect a desktop PC directly to a fiber optic network, by adding a multimode SC fiber port to your computer or server through an available PCI Express slot.
Perfect for integrating into new or existing fiber infrastructure over great distances, this card delivers full Gigabit bandwidth to your computer up to 550 meters away from your network source, using multimode 50/125 micron duplex SC fiber cable. Plus, for a wider spectrum of compatibility, this versatile card offers fiber integration with a computer up to 220 meters away when deployed to network frameworks consisting of multimode 62.5/125 micron cabling.
With fiber connectivity, your network is not susceptible to electronic interference, which can be problematic with standard RJ45 copper networks, making this fiber card ideal for secure network setups.
Plus, the card is equipped with a standard profile bracket and includes a low-profile/half-height bracket, making it easy to install in small form-factor computers or 1U server and rackmount applications.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
More from the Manufacturer
More from the Manufacturer
  • Jumbo Frame Support
  • Preboot Execution Environment (PXE) 2.1
  • Supports RFC 1157 SNMP v1 for remote management
  • Supports Full/Half-duplex Auto-Negotiation
  • Supports Wake-on-LAN remote wake-up
  • Includes low-profile/half-height installation bracket
  • Advanced Configuration Power Management Interface (ACPI) 2.0
  • Compliant with IEEE802.3z 1000Base-SX, IEEE 802.1Q VLAN Tagging, IEEE 802.1P Layer 2 Priority Encoding, IEEE 802.3x full duplex flow control
  • Supports PCI Message Signaled Interrupt (MSI)
  • Maximum fiber distance of 550m
Related Articles
Need more information? Ask a Question

Product Specifications

  • Brand Name
    StarTech.com
  • Country of Origin
    CN
  • Device Supported
    Computer
  • Environmentally Friendly
    Yes
  • Form Factor
    Plug-in Card
  • Height
    4.6"
  • Host Interface
    PCI Express x1
  • Length
    4.7"
  • Limited Warranty
    2 Year
  • Manufacturer
    STARTECH.COM
  • Manufacturer Part Number
    PEX1000MMSC2
  • Maximum Data Transfer Rate
    2 Gbit/s
  • Media Type Supported
    Optical Fiber
  • Model
    PCI Express Gigabit Ethernet Multimode SC Fiber Network Card
  • Network Technology
    1000Base-SX
  • Number of SC Ports
    1
  • Operating System Compatibility
    Windows 8.1 Windows 8 Windows Vista Ultimate Windows XP Professional Windows 7 Ultimate Windows Server 2012 Windows Server 2003 Windows Server 2008 R2 Foundation Mac OS X 10.5 Leopard Mac OS X 10.9 Mavericks Linux 2.6.x Linux 2.4
  • Package Contents
    1 Port PCI Express Gigabit Fiber Network Card 1 x Low Profile Bracket 1 x Driver CD 1 x Instruction Manual
  • Product Name
    1 Port PCI Express Gigabit Fiber Network Card
  • Product Type
    Wired Networking Adapter
  • Refurbished
    N
  • System Requirements
    Windows XP, Vista, 7, 8, 8.1, 10 Windows Server 2003, 2008 R2, 2012, 2012 R2, 2016, 2019 Mac OS X 10.5 to 10.9 Linux 2.4.x to 4.11.x LTS Versions only Microsoft Hyper-V
  • TAA Compliant
    Yes
  • Total Number of Ports
    1
  • Width
    0.7"
