StarTech.com Gigabit Ethernet Multi Mode Fiber Media Converter SC 550m - 1000 Mbps
- Supports standalone operation, or installation into the ETCHS2U Rackmount Chassis
- Cost-effective way to extend/bridge networks using fiber cabling
- Advanced features include Link-loss forwarding, remote monitor status, two frame lengths
- Supports a maximum fiber cable length of 550m
Product Description

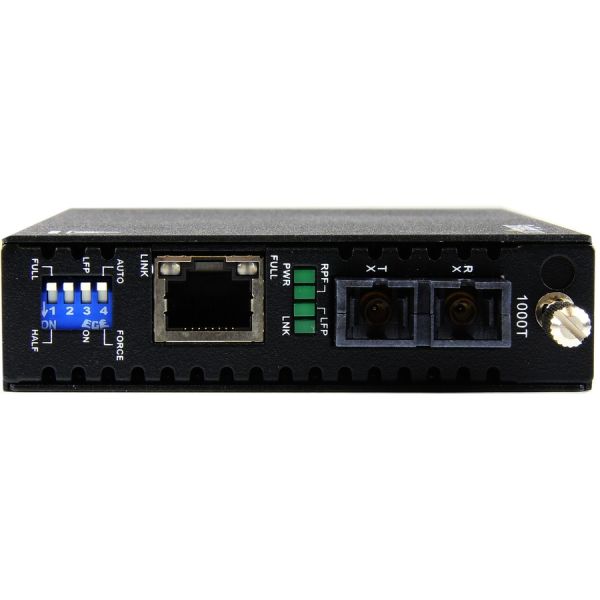

StarTech.com Gigabit Ethernet Multi Mode Fiber Media Converter SC 550m - 1000 Mbps - The ET91000SC2 1000 Mbps Gigabit Multimode Fiber Media Converter (SC, 550m) lets you extend a Gigabit Ethernet network over multimode fiber, at distances up to 550m (1804 ft).
A cost-effective solution for connecting a Gigabit Ethernet (1000Base-T) network to remote network segments over a (1000Base-SX) fiber backbone, the GbE to MM fiber converter supports full Gigabit speeds for ideal network performance and scalability. Designed to offer a durable and convenient Ethernet to fiber solution, this Ethernet to SC Fiber converter features an all-steel chassis, and a simple plug-and-play installation with minimal configuration required.

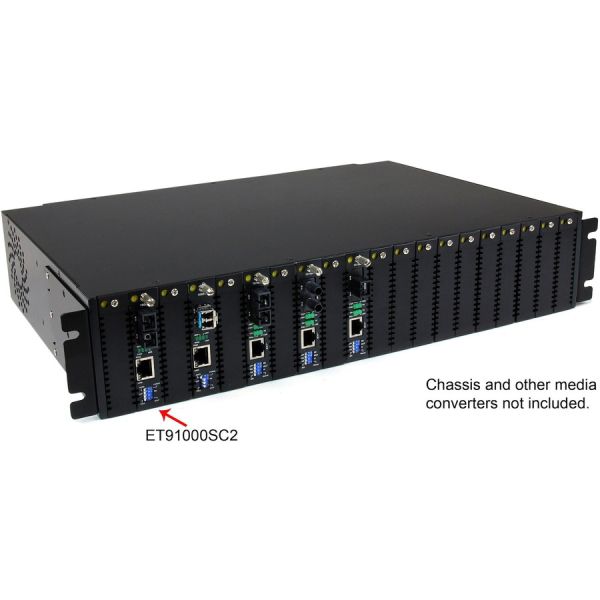

For added versatility, the fiber media converter supports standalone operation, or installation into the 20 Slot, 2U Rackmount Chassis (ETCHS2U).
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
More from the Manufacturer
- Supports standalone operation, or installation into the ETCHS2U Rackmount Chassis
- Cost-effective way to extend/bridge networks using fiber cabling
- Advanced features include Link-loss forwarding, remote monitor status, two frame lengths
- Supports a maximum fiber cable length of 550m
- Supports full or half-duplex operation
- Quick and simple installation, easy to use
- For efficient encoding/decoding of data into light pulses and then sending them to the other end as electrical signals for a dependable photoelectric conversion
- Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
- Expand your network capacity and fulfill requirement with this 2 transceiver/media converter
- With 10/100/1000Base-T technology get up to 1000Mbps data transfer rate over optical fiber cable
- The Rack-mountable provides convenient installation
- Expand your network capabilities with this 2 transceiver/media converter
Product Specifications
-
Brand NameStarTech.com
-
Certifications & StandardsIEEE 802.3 IEEE 802.3u IEEE 802.3ab FC FCC
-
CompatibilityETCHS2U Rackmount Chassis
-
Country of OriginTaiwan
-
DVINo
-
Depth5.9"
-
Digital AudioNo
-
Digital Audio/VideoNo
-
Environmental CertificationRoHS WEEE REACH
-
Environmentally FriendlyYes
-
Ethernet TechnologyGigabit Ethernet
-
Fiber Mode SupportedMulti-mode
-
Form FactorDesktop Rack-mountable
-
Height1"
-
Input Voltage12 V DC
-
Limited Warranty2 Year
-
Management PortNo
-
Manufacturer Part NumberET91000SC2
-
Maximum Distance Supported1804.46 ft
-
Media Type SupportedTwisted Pair Optical Fiber
-
Network (RJ-45)Yes
-
Network Technology10/100/1000Base-T 1000Base-SX/LX
-
Number of Network (RJ-45) Ports1
-
Number of SC Ports1
-
Package ContentsGigabit Ethernet Multi Mode Fiber Media Converter SC 550m - 1000 Mbps 1 x Universal Power Adapter 1 x Grounding Screw 1 x Instruction Manual
-
Parallel PortNo
-
Plug/Connector TypeType M
-
Power Consumption4 W
-
Power SourceAC Adapter
-
Product ColorBlack
-
Product NameGigabit Ethernet Multi Mode Fiber Media Converter SC 550m - 1000 Mbps
-
Product TypeTransceiver/Media Converter
-
SC Port TypeDuplex
-
Total Number of Ports2
-
USBNo
-
Width3.5"
