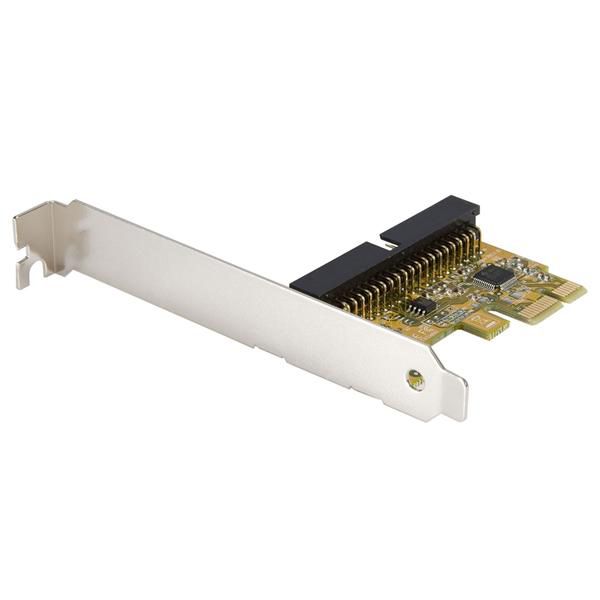

StarTech.com 1 Port PCI Express IDE Controller Adapter Card

Add a 2-channel IDE port to a computer through a PCI Express slot
Loading...
Product Number: SYNX1994484
  • 2-channel IDE port supports two drives
  • 48-bit LBA support
  • Supports ATA/ATAPI commands
  • Supports UDMA 6 mode which supports transfer rates up to 133 MBps
More details
$27.20
Loading...
Free Shipping - This item ships free on orders over $45
Delivered by Mon 4/8 Tue 4/9 - This is an estimated delivery timeline
Non Returnable - This is a non returnable item
Loading...

Product Description

StarTech.com 1 Port PCI Express IDE Controller Adapter Card - This PCI Express IDE Controller Adapter Card provides a cost-effective way to use legacy drives with modern computers, by converting a PCI Express port into an IDE port.

Providing data burst transfer rates of up to 133MBps and support for PIO 0/1/2/3/4 and UDMA 33/66/100/133 operating modes, the IDE controller card offers an efficient way to add an IDE channel with support for two IDE drives on the same channel.

A complete dual profile solution, the PCI Express IDE controller card provides both standard and low profile brackets for adapting to slimline or small form factor system applications.
More from the Manufacturer

  • 2-channel IDE port supports two drives
  • 48-bit LBA support
  • Supports ATA/ATAPI commands
  • Supports UDMA 6 mode which supports transfer rates up to 133 MBps
  • Includes a low profile installation bracket
Read More

Product Specifications

  • Brand Name
    StarTech.com
  • Controller Type
    Ultra ATA/133 (ATA-7)
  • Country of Origin
    Taiwan
  • Data Transfer Rate
    Up to 1.04 Gbit/s
  • Drive Supported
    Up to 2 x Ultra ATA/133 (ATA-7)
  • Drive Type
    Ultra ATA/133 (ATA-7)
  • Environmentally Friendly
    Yes
  • Form Factor
    Plug-in Card
  • Host Interface
    PCI Express x1
  • Limited Warranty
    Lifetime
  • Manufacturer Part Number
    PEX2IDE
  • Package Contents
    1-Port PCI Express IDE Controller Adapter Card IDE Cable Low Profile Bracket Instruction Manual
  • Platform Supported
    PC
  • Ports
    1 x 44-pin IDC Male Ultra ATA/133 (ATA-7) Ultra ATA
  • Product Name
    1-Port PCI Express IDE Controller Adapter Card
  • Product Type
    Ultra ATA Controller
