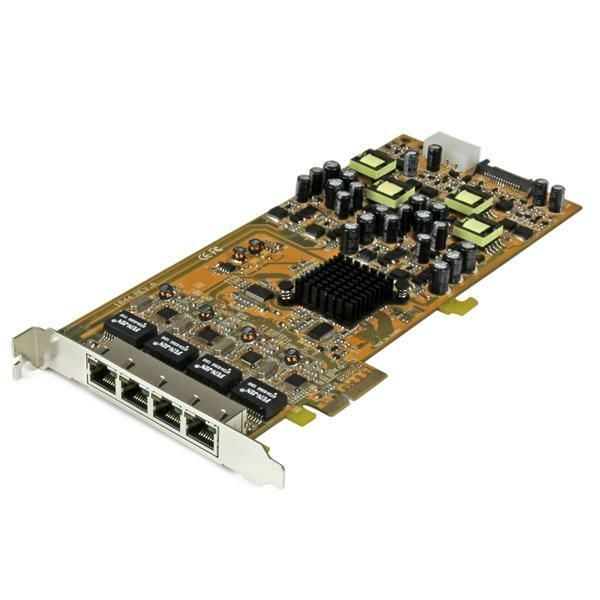

StarTech.com 4 Port Gigabit Power over Ethernet PCIe Network Card - PSE / PoE PCI Express NIC
- Four 10/100/1000 Mbps compatible PoE RJ45 ports
- Fully compliant with IEEE 802.3at (Type 1 & 2) Power over Ethernet standards
- Power Sourcing Equipment (PSE) supports up to 48V, 25.5 Watts max. output per port
- Built-in SATA and LP4 Molex power connector
Product Description
StarTech.com 4 Port Gigabit Power over Ethernet PCIe Network Card - PSE / PoE PCI Express NIC - The ST4000PEXPSE 4-Port PoE NIC lets you add four Gigabit Power over Ethernet ports through a single PCI Express slot. Each port can provide up to 25.5W of power, combining network data and power over a single Ethernet cable for reduced cable clutter and added convenience for remote PoE devices.
The PCI express PoE card supports the IEEE 802.3at (Type 1 and 2) standard for Power Sourcing Equipment (PSE), and can deliver up to 48V DC power to compliant Powered Devices (PD). This eliminates the need for a separate power source and data connection for PoE devices such as IP cameras, IP phones or wireless access points.
Suitable for any standard profile PCIe-enabled client, server or workstation, the PoE network card supports features such as Jumbo Frames (up to 9KB), VLAN tagging and Wake on LAN (WoL).
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
More from the Manufacturer
- Four 10/100/1000 Mbps compatible PoE RJ45 ports
- Fully compliant with IEEE 802.3at (Type 1 & 2) Power over Ethernet standards
- Power Sourcing Equipment (PSE) supports up to 48V, 25.5 Watts max. output per port
- Built-in SATA and LP4 Molex power connector
- Up to 9K Jumbo Frame support
- Wake-on-LAN (Remote Wake-up) support
- Supports Pair Swap, Polarity and Skew Correction
- This Gigabit Ethernet card guarantees a replacement networking interface to client, server or workstation
- This 2000 MB/s bandwidth PCI Express x4 adapter ensures easy connectivity and plug-in form-factor for affordable and reliable Ethernet network
- This quad ports network adapter is designed to meet the multi-port network connectivity needs of today's data centered environments demanding virtualization, converged infrastructure, and power reduction
- Supports cost-efficient twisted pair cables for speedy data transfer up to 100 meters
- With the 10/100/1000Base-T technology get up to 1000Mbps data transfer rate over the twisted pair cable
- This 2000MB/s bandwidth adapter is ideal for PCs with PCI Express x4 slots, ensuring top level network connectivity for your desktops
Product Specifications
-
Brand NameStarTech.com
-
Chipset ManufacturerRealtek
-
Chipset ModelRTL8111E
-
Country of OriginTaiwan
-
Depth9.6"
-
Device SupportedComputer
-
Environmentally FriendlyYes
-
Form FactorPlug-in Card
-
Height4.7"
-
Host InterfacePCI Express x4
-
Length9.6"
-
Limited Warranty2 Year
-
Manufacturer Part NumberST4000PEXPSE
-
Media Type SupportedTwisted Pair
-
Network Technology10/100/1000Base-T
-
Number of Network (RJ-45) Ports4
-
Package Contents4 Port Gigabit Power over Ethernet PCIe Network Card - PSE / PoE PCI Express NIC 1 x Driver CD 1 x Instruction Manual
-
Product Name4 Port Gigabit Power over Ethernet PCIe Network Card - PSE / PoE PCI Express NIC
-
Product TypeGigabit Ethernet Card
-
System RequirementsWindows 2000, XP, Vista, 7, 8, 8.1, 10 Windows Server 2003, 2008 R2, 2012, 2012 R2, 2016, 2019 Linux 2.4.x to 4.11.x LTS Versions Only
-
Total Number of Ports4
-
Width0.7"
