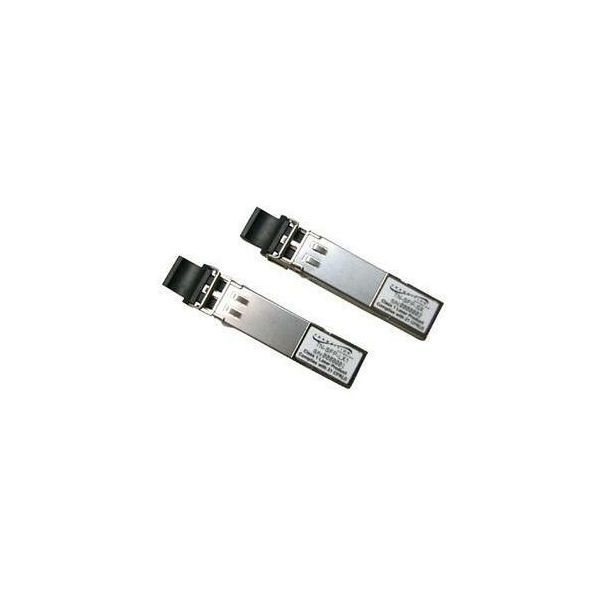

Transition Networks 1000BASE-SX Small Form Factor Pluggables (SFP) transceivers

Product #: IGRME81568
Sold Out

This product is sold out and we do not know when we will be getting another shipment. We apologize for any inconvenience this may cause.

Check similar items above to see if a replacement product is available.

Product Description

Transition Networks 1000BASE-SX Small Form Factor Pluggables (SFP) transceivers
1 x 1000Base-SX
The TN-SFP-XX Small Form Factor Pluggables (SFP) transceivers are designed for bi-directional serial optical data communications such as Gigabit Ethernet or Fiber Channel and speeds up to 1.25Gbps. The device is designed for use in Switches and routers compatible with Small Form Factor Pluggable Multi-Sourcing Agreement (MSA).
  • SFP (mini-GBIC) offers better usage with maximum efficiency and convenience
  • Supports optical fiber cable for durable performance, minimal signal loss, and fast data transfers to greater distances
  • Multi-mode fiber mode support for feasible connectivity with added productivity
  • Hot-pluggable form factor for added reliability and dependability
  • SFP (mini-GBIC) with data networking application/usage for maximum dependability and convenience
Related Articles
Need more information? Ask a Question

Product Specifications

  • Additional Information
    Fiber Channel Switch Infrastructure XDSL Applications Metro Edge Switching 850nm Wavelength Compliant with Fiber Channel 1x SM-LC-L FC-PI Min TX PWR: -9.5 dBm Max TX PWR: -4.0 dBm RX Sensitivity: -17.0 dBm Max In PWR: -3.0 dBm Link Budget: 7.5 dB
  • Application/Usage
    Data Networking
  • Brand Name
    Transition Networks
  • Compatibility
    The device is designed for use in Switches and routers compatible with Small Form Factor Pluggable Multi-Sourcing Agreement (MSA).
  • Connector Type
    LC
  • Country of Origin
    Taiwan
  • Depth
    2.2"
  • Fiber Mode Supported
    Multi-mode
  • Form Factor
    Hot-pluggable
  • Height
    0.3"
  • Input Voltage
    3.3 V DC
  • Interfaces/Ports Details
    1 x LC 1000Base-SX
  • Limited Warranty
    Lifetime
  • Manufacturer Part Number
    TN-SFP-SX
  • Maximum Distance Supported
    0.55 km
  • Media Type Supported
    Optical Fiber
  • Product Model
    TN-SFP-SX
  • Product Name
    1000BASE-SX Small Form Factor Pluggables (SFP) transceivers
  • Product Type
    SFP (mini-GBIC)
  • Total Number of Ports
    1
  • Width
    0.5"
