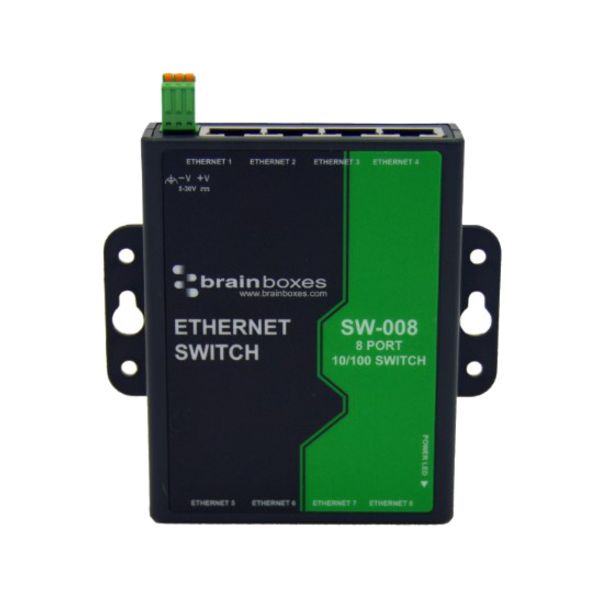

Brainboxes 8 Port Unmanaged Ethernet Switch Wall Mountable

Product #: SYNX5992854
Sold Out

This product is sold out and we do not know when we will be getting another shipment. We apologize for any inconvenience this may cause.

Check similar items above to see if a replacement product is available.

Product Description

Brainboxes 8 Port Unmanaged Ethernet Switch Wall Mountable
8 Ports - 2 Layer Supported - 1.10 W Power Consumption - Twisted Pair - DIN Rail Mountable, Wall Mountable - Lifetime Limited Warranty - TAA Compliant
Light Industrial/Commercial Ethernet 8 Port unmanaged switch. Galvanically Isolated Ports. Power supply with wide voltage range means it can be powered from USB or on the 24V factory floor. Power terminal is removable for easy wiring. Power consumption is optimised based on the status of the link device. No software required. Ideal for factory floor, in vehicle and marine applications. Wall mountable using mounting screw holes, optional DIN Rail mount accessory available (see MK-048).
  • 8 Port Ethernet Switch
  • Wide Power Input: +5V to +30V DC
  • Wall Mountable, or DIN rail mountable with optional accessory
  • -10°C to +60°C / -14°F to +140°F operating temperature
  • No software required
  • Lifetime Support and Lifetime Warranty
  • Ethernet Switch ensures productivity by providing an efficient, hassle-free connection
  • Quickly and easily set up a wired network with 8 networking ports
  • With leading Layer 2 support, experience enhanced convenience, secure business operations, and a borderless network experience
  • DIN Rail Mountable form factor allows hassle-free and easy usage with increased efficiency
  • The unmanaged switch provides a quick, easy and cost-saving way to add wired networking to your home, office or small business; no intervention needed
  • Fast Ethernet technology gives ideal solution for extending network connections to conference rooms, labs, lobbies and department workgroups
  • Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
Related Articles
Need more information? Ask a Question

Product Specifications

  • Brand Name
    Brainboxes
  • Country of Origin
    United Kingdom
  • Depth
    3.9"
  • Environmental Compliance
    Restriction of Hazardous Substances (RoHS) Waste Electrical and Electronic Equipment Directive (WEEE)
  • Environmentally Friendly
    Yes
  • Ethernet Technology
    Fast Ethernet
  • Form Factor
    DIN Rail Mountable Wall Mountable
  • Height
    1.2"
  • Layer Supported
    2
  • Limited Warranty
    Lifetime
  • Manageable
    No
  • Manufacturer Part Number
    SW-008
  • Media Type Supported
    Twisted Pair
  • Network Technology
    10/100Base-T
  • Package Contents
    8 Port Unmanaged Ethernet Switch Wall Mountable Quick Start Guide
  • PoE (RJ-45) Port
    No
  • Power Consumption
    1.10 W
  • Power Source
    Power Supply
  • Product Model
    SW-008
  • Product Name
    8 Port Unmanaged Ethernet Switch Wall Mountable
  • Product Type
    Ethernet Switch
  • Total Number of Network Ports
    8
  • Width
    4.3"
