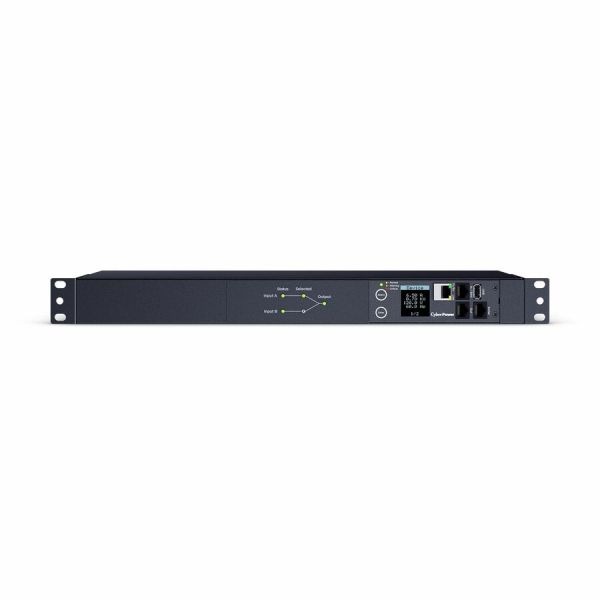

CyberPower PDU44001 Single Phase 100 - 120 VAC 15A Switched ATS PDU

Product #: SYNX6489650
$638.34
Ships Free - This items ships free with your order
Delivered by Fri 12/12 Mon 12/15 - This is an estimated delivery timeline
Non-returnable - This is a non-returnable item

Product Description

CyberPower PDU44001 Single Phase 100 - 120 VAC 15A Switched ATS PDU
10 Outlets, 10 ft, 2 x NEMA 5-15P, Horizontal, 1U, SNMP, LCD, 3YR Warranty
Ensure continued operation of critical devices with the CyberPower PDU44001 Switched ATS PDU. Ideal for data centers and network closets, this unit provides power redundancy to single-corded connected equipment. If power for the primary source exceeds the lower or upper thresholds, or if power fails, the PDU will switch to the secondary power source to ensure continuous operation. The PDU will switch back to the primary power source when incoming power becomes stable. Additionally, this unit offers real time remote and local monitoring and outlet management.
The PDU44001 supports inputs between 100-120V and includes (10) NEMA 5-15R outlets. Dual NEMA 5-15P power cords are plugged into separate power sources (A and B), and information about each power source is clearly displayed on the front panel LED indicator lights. Other features include an LCD with selectable background color, built-in web interface, and power event notifications. The CyberPower PDU44001 is protected by a three-year limited warranty.
  • Automated notifications:
  • Email, SMS Text, and SNMP Trap
  • Phase:
  • Single
  • Amps:
  • 15A (Derated to 12A)
  • Volts:
  • 100-120V
  • Frequency:
  • 50/60Hz
  • Plug type:
  • 2 x NEMA 5-15P
  • Outlets:
  • 10 x NEMA 5-15R
  • Size:
  • 1U Rackmount
  • Warranty:
  • 3 year
  • Electric power fitted to racks of computers and networking equipment within a data center
  • With a built-in digital current meter avoid potential overloads via switched PDUs
  • NEMA 5-15R receptacle type to ensure maximum dependability and optimal performance
  • Modular design for your convenience and optimal usage
  • Single Phase phase PDU provides optimal power output with added usability
  • NEMA 5-15P plug/connector type for reliable, productive connectivity and optimal power output
  • 120 V AC input voltage for maximum feasibility and added productivity
  • 100 V AC output voltage for maximum dependability and added productivity
CyberPower logo
Guides & Information
Related Articles
Need more information? Ask a Question

Product Specifications

  • Additional Information
    Shipping - Dimensions (WxHxD, in) : 21.65 x 4.9 x 15.67 (in) Shipping - Weight (lb) : 13.3 Cord Length : 10 ft (3.0 m) Derated Input Current : 12 A Input Frequency Range : 50 Hz - 60 Hz Plug Style : Straight Overload Protection : None Power Source Transfer Time : 2-7 ms Source Failure Detection Time : 2-3 ms Environmental Sensor : Optional, via RJ45 LCD : Multifunction LCD LED Indicators : Source Status Upgradeable firmware : Yes Cord Retention Tray/Cord Organizers : Yes External Site Ground Pin : Yes Material of Construction : Metal Operating Elevation : 0 - 13123 ft (0 - 4000 m) Operating Relative Humidity : 0 - 95 % (non-condensing) Operating Temperature : 32 - 113 °F (0 - 45 °C) Storage Elevation : 0 - 49213 ft (0 - 14999 m) Physical Dimensions - (WxHxD) (cm) : 43.31 x 4.45 x 21.46 (cm) Physical Dimensions - (WxHxD) (in) : 17.05 x 1.75 x 8.45 (in) Physical Dimensions - (WxHxD) (mm) : 433 x 44 x 215 (mm) Weight (kg) : 4.54 Weight (lb) : 10 Shipping Dimensions - (WxHxD) (cm) : 54.99 x 12.45 x 39.8 (cm) Shipping - Dimensions (WxHxD, mm) : 549.91 x 124.46 x 398.02 (mm) Shipping - Weight (kg) : 6.03 Input Plug Type : 2 x NEMA 5-15P Maximum Input Current : 15A Nominal Input Voltage : 100 - 120 VAC Phase : Single Phase Nominal Output Voltage : 100 - 120 VAC Outlet Banks : 1 Outlets - Total : 10 Outlet Type COMPUTED : 10 - NEMA 5-15R Total Transfer Time : Hardware Connection Port : Ethernet (RJ45) Modular Expandability (Cascading) : Yes, via RJ45 Outlet switching : Yes SNMP / HTTP Remote Monitoring : IPv4, TCP/IP, UDP, SNMPv1, HTTP, NTP, DNS, Telnet, DHCP, SMTP, FTP, IPv6, SNMPv3, HTTPs, SSH, SSL, TLS, LDAP(S), RADIUS, Syslog, CLI, Windows AD Color : Black Form Factors Supported : 1U Rackmount Rack Height : 1U Style : Rackmount Storage Temperature : 5 - 131 °F (-15 - 55 °C) Environmental : RoHS Compliant Safety : UL62368 via cTUVus Extended Warranty Option : WEXT5YR-PDU1B Product Warranty : 3 Year Limited Warranty
  • Application/Usage
    Network Device Data Center
  • Brand Name
    CyberPower
  • Certifications & Standards
    FCC Class A UL62368 via cTUVus ICES-003: Issue 7
  • Cord Length
    10 ft
  • Country of Origin
    China
  • Depth
    8.5"
  • Environmental Compliance
    Restriction of Hazardous Substances (RoHS)
  • Environmentally Friendly
    Yes
  • Features
    LED Status Indicator LCD Display
  • Form Factor
    Rack
  • Height
    1.8"
  • Input Current
    15 A
  • Input Frequency
    60 Hz
  • Input Voltage
    120 V AC
  • Input Voltage Range
    100 V AC - 120 V AC
  • Limited Warranty
    3 Year
  • Management
    IPv4 UDP SNMPv1 HTTP NTP DNS Telnet DHCP SMTP FTP IPv6 SNMPv3 HTTPs SSH SSL TLS LDAP(S) RADIUS Syslog CLI Protocols: TCP IP Windows AD SNMP
  • Manufacturer Part Number
    PDU44001
  • Maximum Operating Temperature
    113°F (45°C)
  • Minimum Operating Temperature
    32°F (0°C)
  • Mount Type
    Rack-mountable
  • Mounting Orientation
    Horizontal
  • Network (RJ-45)
    Yes
  • Output Voltage
    120 V AC 100 V AC
  • Output Voltage Range
    100 V AC - 120 V AC
  • Phase
    Single Phase
  • Plug/Connector Detail
    2 x NEMA 5-15P
  • Plug/Connector Type
    NEMA 5-15P
  • Product Color
    Black
  • Product Model
    PDU44001
  • Product Name
    PDU44001
  • Product Series
    Switched ATS PDU
  • Product Type
    PDU
  • Rack Height
    1U
  • Receptacle Detail
    10 x NEMA 5-15R
  • Receptacle Type
    NEMA 5-15R
  • Remote Outlet Switching
    Yes
  • Width
    17.1"
