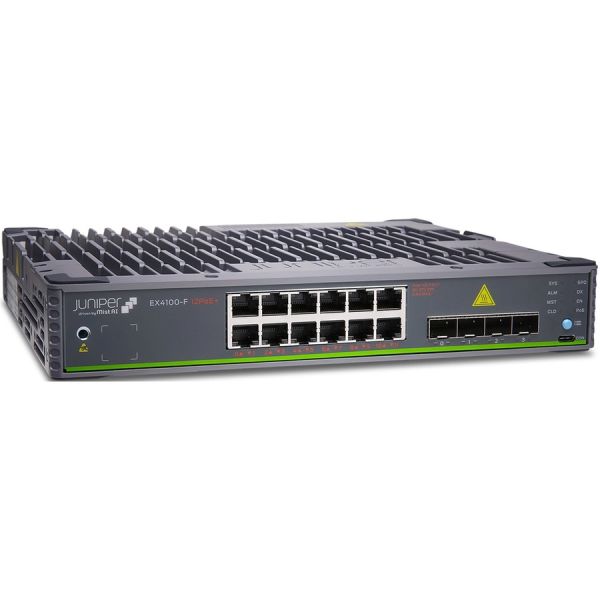

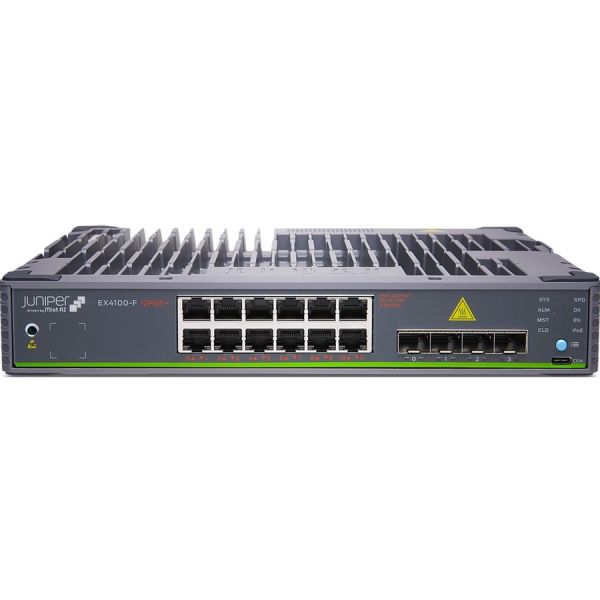

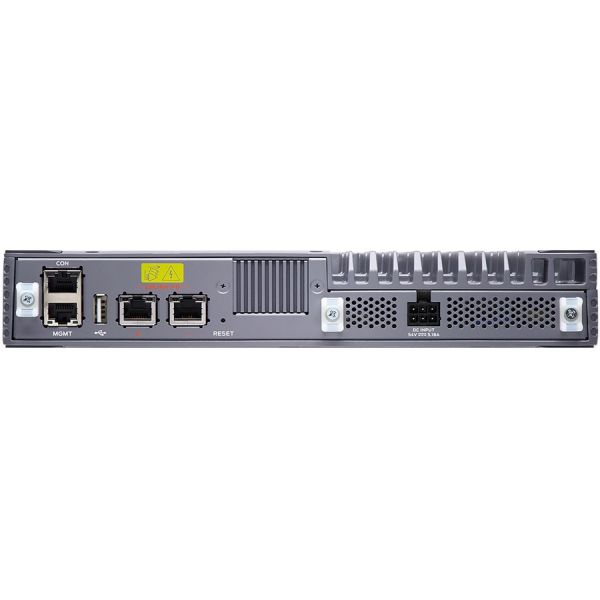

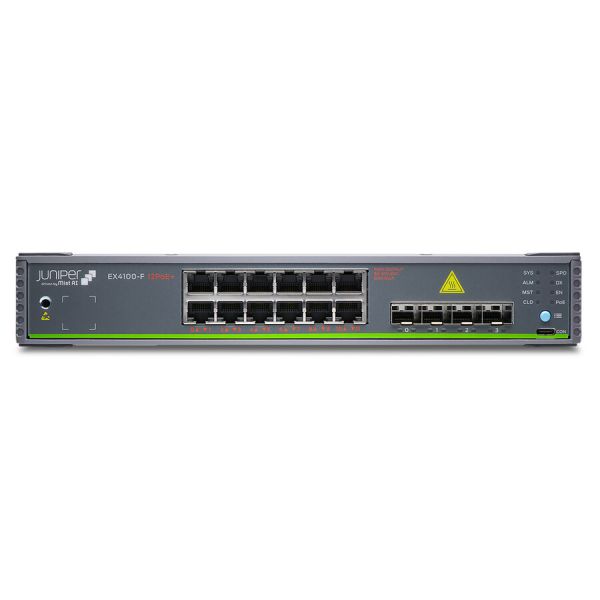

Juniper EX4100-F-12P Ethernet Switch

Product #: ETLZ1074098068
Sold Out

This product is sold out and we do not know when we will be getting another shipment. We apologize for any inconvenience this may cause.

Check similar items above to see if a replacement product is available.

Product Description

Juniper EX4100-F-12P Ethernet Switch
12 Ports - Manageable - Gigabit Ethernet, 10 Gigabit Ethernet - 10/100/1000Base-T, 10GBase-T, 10GBase-X - 3 Layer Supported - Modular - 80 W Power Consumption - 300 W PoE Budget - Twisted Pair, Optical Fiber - PoE Ports - 1U - Rack-mountable, Wall Mountable, DIN Rail Mountable - Lifetime Limited Warranty
The Juniper Networks EX4100-F line of Switches offers a secure, cloud-ready portfolio of access switches ideal for enterprise branch, remote office, and enterprise campus networks. The EX4100-F switches combine the simplicity of the cloud, the power of Mist AI, and a robust hardware foundation with high performance to deliver a differentiated approach to access switching in the cloud, mobile, and IoT era. With Juniper Mist Wired Assurance, the EX4100-F line of Switches can be effortlessly onboarded, configured, and managed from the cloud. This simplifies operations, improves visibility, and ensures a much better experience for connected devices.

Key features of the EX4100-F include:

Cloud-ready, driven by Mist AI with Juniper Mist Wired Assurance and Marvis Virtual Network Assistant
Ethernet VPN-Virtual Extensible LAN (EVPN-VXLAN) to the access layer
Standards-based microsegmentation using group-based policies (GBPs)
Flow-based telemetry to monitor traffic flows for anomaly detection, ability to measure packet delays and report drop reasons
10-member Virtual Chassis support Offering a full suite of Layer 2 and Layer 3 capabilities, the EX4100-F enables multiple deployments. As scaling requirements increase, Juniper's Virtual Chassis technology allows up to 10 EX4100-F switches to be seamlessly interconnected and managed as a single device, delivering a scalable, pay-as-you-grow solution for expanding network environments.

The EX4100-F line consists of the following models:

The EX4100-F-12T, which is a compact, fanless switch offering 12 x 1GbE non-PoE access ports.
The EX4100-F-12P, which is a compact, fanless switch offering 12 x 1GbE Power over Ethernet Plus (PoE+) access ports and delivering up to 30 W per port with a total of 180 W of PoE power budget with an external power adapter. EX4100-F-12P can also be powered from an external 90 W power sourcing equipment (PSE) device connected via the uplink port. Additional 90 W of PoE budget is available if the second uplink port is connected to a PSE device. With external power adapter and the two uplink ports connected to 90 W external PSE, total PoE power budget supported is up to 300 W.
The EX4100-F-24T, which offers 24 x 1GbE non-PoE access ports.
The EX4100-F-24P, which offers 24 x 1GbE PoE+ access ports, delivering up to 30 W per port with an overall total 370 W of PoE power budget.
The EX4100-F-48T, which offers 48 x 1GbE non-PoE access ports.
The EX4100-F-48P, which offers 48 x 1GbE PoE+ access ports and delivers up to 30 W per port with an overall total PoE Power budget of 740 W.
  • Effectively reduces downtime with improved network performance
  • Conveniently lets you connect two standard Ethernet ports to ensure maximum efficiency
  • Provides efficient communication with other ethernet switch in the stack to ensure maximum productivity
  • Quickly and easily set up a wired network with 12 networking ports
  • Supports layer 3 switching for enhanced performance and usability
  • Rack-mountable form factor allows hassle-free and easy usage with increased efficiency
  • Management capability provides control over setup and configuration of your network
  • Up to 10x faster than standard Ethernet server connectivity while providing high-performance uplinks
  • Supports optical fiber cable to span longer distances and provided high data transmission rates between servers and network components
Related Articles
Need more information? Ask a Question

Product Specifications

  • Brand Name
    Juniper
  • Compatible Rack Unit
    1U
  • Depth
    9.7"
  • Environmental Compliance
    Restriction of Hazardous Substances (RoHS)
  • Environmentally Friendly
    Yes
  • Ethernet Technology
    10 Gigabit Ethernet Gigabit Ethernet
  • Expansion Slot Type
    SFP+
  • Features
    Fanless
  • Form Factor
    DIN Rail Mountable Rack-mountable Wall Mountable
  • Height
    1.8"
  • Layer Supported
    3
  • Limited Warranty
    Lifetime
  • Manageable
    Yes
  • Manufacturer Part Number
    EX4100-F-12P
  • Media Type Supported
    Optical Fiber Twisted Pair
  • Modular
    Yes
  • Network (RJ-45)
    Yes
  • Network Technology
    10/100/1000Base-T 10GBase-T 10GBase-X
  • Networking Standards
    IEEE 802.11ax IEEE 802.1ab IEEE 802.1ak IEEE 802.1D IEEE 802.1p IEEE 802.1Q IEEE 802.1s IEEE 802.1w IEEE 802.1x IEEE 802.3 IEEE 802.3ab IEEE 802.3ad IEEE 802.3ae IEEE 802.3af IEEE 802.3ah IEEE 802.3at IEEE 802.3ax IEEE 802.3u IEEE 802.3x IEEE 802.3z
  • Number of SFP+ Slots
    4
  • PoE (RJ-45) Port
    Yes
  • PoE Budget
    300 W
  • Power Consumption
    80 W
  • Power Source
    Power Adapter
  • Product Model
    EX4100-F-12P
  • Product Name
    EX4100-F-12P Ethernet Switch
  • Product Series
    EX4100-F
  • Product Type
    Ethernet Switch
  • Stack Port
    Yes
  • Total Number of Expansion Slots
    4.0
  • Total Number of Network Ports
    12
  • Uplink Port
    Yes
  • Width
    10.6"
