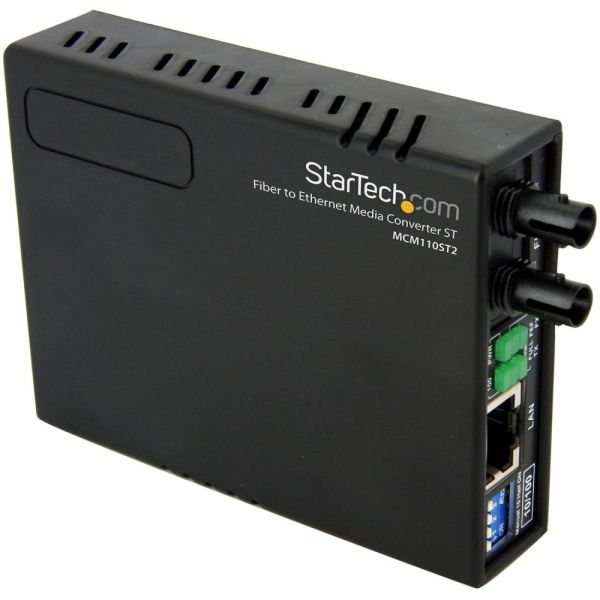

StarTech.com 10/100 Fiber to Ethernet Media Converter Multi Mode ST 2 km

Product #: ODFN927717
$73.37
Ships Free - This items ships free with your order
Delivered by Fri 12/12 Mon 12/15 - This is an estimated delivery timeline
Non-returnable - This is a non-returnable item

Product Description

StarTech.com 10/100 Fiber to Ethernet Media Converter Multi Mode ST 2 km
Convert and extend a 10/100 Mbps Ethernet connection up to 2 km over Multi Mode ST fiber - fiber converter - ethernet media converter - fibre converter - 10/100 media converter - utp to fiber
The MCM110ST2 10/100 Multi Mode ST Fiber Ethernet Media Converter (2 km) creates a cost-effective Ethernet to fiber link, transparently converting to/from 10Base-T or 100Base-Tx Ethernet signals and 100Base-Fx optical signals to extend an Ethernet network connection over a multimode fiber backbone.
The ST media converter supports a maximum multimode fiber optic cable distance of 2km (1.2 miles), providing a simple solution for connecting 10Base-T/100Base-Tx Ethernet networks to remote locations using ST-terminated multimode fiber, while delivering solid network performance and scalability.
Easy to setup and install, this compact, value-conscious fast Ethernet media converter features auto-switching MDI and MDI-X support on the RJ45 UTP connections as well as manual controls for UTP mode, speed, Full and Half Duplex, as well as LFP (Link Fault pass-through) on/off.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
More from the Manufacturer
More from the Manufacturer
  • Supports IEEE 802.1q Tag VLAN pass thru
  • LED Indicators for simple Ethernet/Fiber network link monitoring
  • Supports IEEE 802.3 10Base-T, 802.3u 100Base-TX and 100Base-FX industry standards
  • Supports full or half-duplex operation
  • Support flow control (Pause)
  • Compatible with 3com, Cisco, Lucent and Nortel networks
  • Supports Link Fault Pass through (LFP)
  • Supports Q in Q double tagged frame transparent
  • Supports a maximum multi mode fiber optic cable distance of 2 km
Related Articles
Need more information? Ask a Question

Product Specifications

  • Additional Information
    Plug Type: M Fiber Operating Mode: Half/Full-Duplex
  • Brand Name
    StarTech.com
  • Country of Origin
    CN
  • Depth
    3.7"
  • Environmentally Friendly
    Yes
  • Ethernet Technology
    Fast Ethernet
  • Fiber Mode Supported
    Multi-Mode
  • Fiber Optic Cable Wavelength
    1310 nm
  • Form Factor
    External
  • Height
    0.8"
  • Limited Warranty
    2 Year
  • Manufacturer
    STARTECH.COM
  • Manufacturer Part Number
    MCM110ST2
  • Maximum Distance Supported
    2 km
  • Media Type Supported
    Optical Fiber Twisted Pair
  • Model
    10/100 Mbps Ethernet to Fiber Optic Media Converter - ST Multimode - 1310nm - 2km - Full/Half Duplex (MCM110ST2)
  • Network (RJ-45)
    Yes
  • Network Technology
    10Base-T 100Base-FX
  • Number of Network (RJ-45) Ports
    1
  • Number of ST Ports
    1
  • Package Contents
    10/100 Multi Mode Fiber Copper Fast Ethernet Media Converter ST 2 km 1 x Power Adapter 1 x Instruction Manual
  • Plug/Connector Type
    Type M
  • Power Consumption
    2.40 W
  • Power Source
    AC Adapter
  • Product Name
    10/100 Multi Mode Fiber Copper Fast Ethernet Media Converter ST 2 km
  • Product Type
    Network Transceiver
  • Refurbished
    N
  • ST Port Type
    Duplex
  • TAA Compliant
    Yes
  • Total Number of Ports
    2
  • Width
    3"
