StarTech.com Industrial Fiber to Ethernet Media Converter - 1Gbps SFP to RJ45/CAT6 - SM/MM Fiber to Copper Gigabit Network I - IMC1GSFP
Product #:
ODFN6833623
+2View All
$254.48
Loading...
Product Description

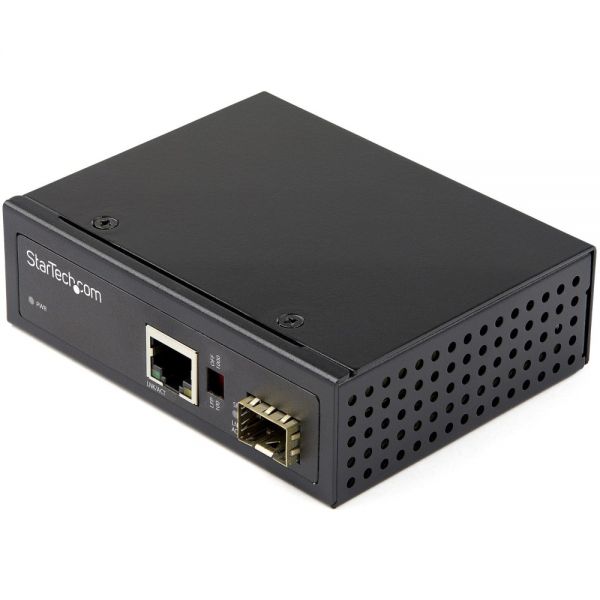

StarTech.com Industrial Fiber to Ethernet Media Converter - 1Gbps SFP to RJ45/CAT6 - SM/MM Fiber to Copper Gigabit Network I - IMC1GSFP
Fiber to Ethernet Media Converter extends networks & converts optical fiber to RJ45 Copper/CAT6 - Industrial Hardened -40 to 75C temp - 1Gbps (Gigabit) - Open SFP - 12V-56VDC - Single Mode (SMF) or Multimode Fiber (MMF) - IP-30 Case 2 Year Warranty
An industrial media converter that converts fiber to copper at a network endpoint. A Flexible Solution Covering Different Requirements
This media converter features an open SFP slot for any standard gigabit SFP to be used for the incoming fiber connection and is easily deployed across applications or fiber cable types. Accepts terminal block power or coaxial power connectors with the barrel plug adapter, allowing the product to be hardwired or powered using an external power supply (not included), which does not require professional installation. It can be powered using 12V-56V DC for solar, automotive, rail, and other applications and requires a minimum 12V power input. Includes hardware for DIN rail or wall mounting. For Mission-Critical Applications
Designed with IP-30 housing and has an MBTF of >500,000 hrs (Telcordia/Bellcore) at 50°C and an operating temperature range of include -40 C to 75 C for durability; it's rated to various vibration, shock, and free-fall standards:
Vibration: EN 60068-2-6
Shock: EN 60068-2-27
Free-Fall: EN 60068-2-32
The IMC1GSFP is backed by a StarTech.com 2-year warranty and free lifetime technical support.
More from the Manufacturer
More from the Manufacturer
This media converter features an open SFP slot for any standard gigabit SFP to be used for the incoming fiber connection and is easily deployed across applications or fiber cable types. Accepts terminal block power or coaxial power connectors with the barrel plug adapter, allowing the product to be hardwired or powered using an external power supply (not included), which does not require professional installation. It can be powered using 12V-56V DC for solar, automotive, rail, and other applications and requires a minimum 12V power input. Includes hardware for DIN rail or wall mounting. For Mission-Critical Applications
Designed with IP-30 housing and has an MBTF of >500,000 hrs (Telcordia/Bellcore) at 50°C and an operating temperature range of include -40 C to 75 C for durability; it's rated to various vibration, shock, and free-fall standards:
Vibration: EN 60068-2-6
Shock: EN 60068-2-27
Free-Fall: EN 60068-2-32
The IMC1GSFP is backed by a StarTech.com 2-year warranty and free lifetime technical support.
More from the Manufacturer
More from the Manufacturer
- TECH SPECS: 1 Gbps | 12V-56VDC | Single Mode SMF & Multi-Mode MMF Fiber | 16K Jumbo Frames | LFP | IP-30 Housing | DIN or Wall Mountable | Terminal Block and/or Barrel Adapter for power redundancy
- STARTECH.COM ADVANTAGE: IT professionals' choice for over 30 years; this media converter is backed for 2-years by StarTech.com, including free 24/5 North America based multi-lingual tech support
- OPEN SFP SLOT: Compatible with any standard SFP and can be used for multimode or single mode fiber connections; easy deployment across applications, fiber distances or fiber cable types
- ROBUST DESIGN: Industrial Gigabit Network Media Converter w/MTBF of 500,000+ hrs @ 50C | Vibration, shock & free fall rated | Rugged IP-30 aluminum housing
- INDUSTRIAL FIBER TO ETHERNET MEDIA CONVERTER: Extends & converts 1Gbps fiber to RJ45 copper w/ hardened operating temp -40C to 75C; powered by 12V-56V DC for compatibility with solar, auto & rail
Loading...
Product Specifications
-
Brand NameStarTech.com
-
Country of OriginTW
-
Depth4.1"
-
Environmental ComplianceRestriction of Hazardous Substances (RoHS) Waste Electrical and Electronic Equipment Directive (WEEE)
-
Environmentally FriendlyYes
-
Ethernet TechnologyGigabit Ethernet
-
Expansion Slot TypeSFP (mini-GBIC)
-
Fiber Mode SupportedSingle-Mode; Multi-Mode
-
Form FactorDIN Rail Mountable Wall Mountable
-
Height1.3"
-
Limited Warranty2 Year
-
ManufacturerSTARTECH.COM
-
Manufacturer Part NumberIMC1GSFP
-
Media Type SupportedOptical Fiber Twisted Pair
-
ModelIndustrial Fiber to Ethernet Media Converter, 1Gbps SFP to RJ45/ Cat6, Singlemode/Multimode Optical Fiber to Copper Gigabit Eternet Network, 12-56V DC, IP-30/ -40 to +75C - Fiber Media Converter (IMC1GSFP)
-
Network (RJ-45)Yes
-
Network Technology1000Base-T 1000Base-X
-
Number of Network (RJ-45) Ports1
-
Number of SFP Slots1
-
Package ContentsTransceiver/Media Converter Mounting Hardware Kit Quick-Start Guide Terminal Block to Barrel Power Connector Adapter Terminal Block
-
Plug/Connector TypeTerminal Block (4 Wire) Type N
-
Power Consumption3 W
-
Power SourcePower Supply
-
Product NameTransceiver/Media Converter
-
Product TypeNetwork Transceiver
-
RefurbishedN
-
Total Number of Expansion Slots1.0
-
Total Number of Ports1
-
Width3.2"
