Transition Networks Managed Hardened PoE+ Switch

Product #: IGRM1FB574
Sold Out

This product is sold out and we do not know when we will be getting another shipment. We apologize for any inconvenience this may cause.

Check similar items above to see if a replacement product is available.

Product Description

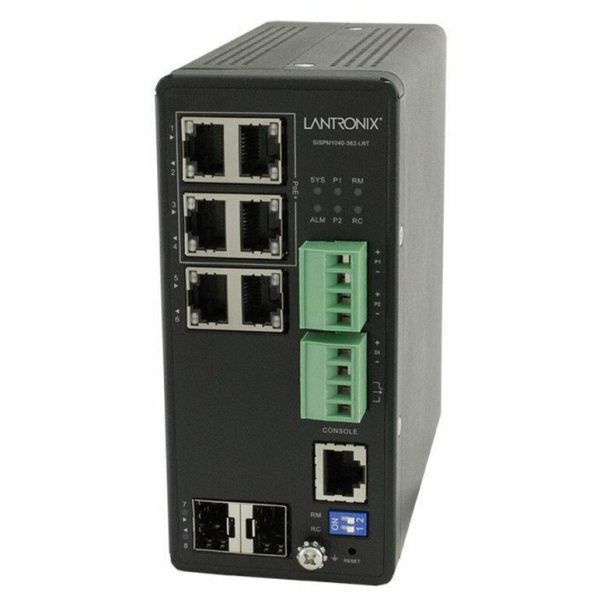

Transition Networks Managed Hardened PoE+ Switch
6 Ports - Manageable - 2 Layer Supported - Modular - 2 SFP Slots - Twisted Pair, Optical Fiber - 5 Year Limited Warranty
The SISPM1040-362-LRT is a full managed PoE+ switch suitable for connecting and powering devices in hardened environments. The switch can supply up to 30 Watts per port on all four PoE ports simultaneously. The switch also includes the embedded Device Management System (DMS) software that provides the advanced tools necessary for total management of all IP addressable devices. The unique DMS provides security integrators with lower overall cost, less downtime and easier management of the entire PoE+ network.
Transition Networks' hardened switches are certified to operate reliably in harsh environments such as those found on factory floors, outdoor enclosures or other challenging environments.
  • Store-and-Forward Architecture with 16 Gbps Switching Bandwidth
  • Supports Jumbo frames up to 9.6K Bytes
  • Ring Protections: Industry standard G.8032 Ethernet Ring Protection Switching (ERPS), Support G.8031 Ethernet Linear Protection Switching (EPS), Rapid Ring with recovery time less than 20ms
  • Radius, TACACS+, User Authentication
  • Supports LLDP Protocol
  • HTTPS/SSH v1/v2 Network Security
  • Temperature Detection and Alarm
  • Support HW Watchdog to resume operation from CPU hang up
  • IEEE 1588 v2 PTP
  • Port Mirroring
  • Effectively increases available bandwidth on your network
  • Increases the stack bandwidth of the stack port further than that of a single port
  • Quickly and easily set up a wired network with 6 networking ports
  • Layer 2 switch provides a complete lineup of features including IGMP snooping, port mirroring, and spanning tree
  • Up to 10x faster than standard Ethernet server connectivity while providing high-performance uplinks
  • Twisted Pair media support for efficient and reliable connectivity
Related Articles
Need more information? Ask a Question

Product Specifications

  • Application/Usage
    Network
  • Brand Name
    Transition Networks
  • Country of Origin
    Taiwan
  • Depth
    5.3"
  • Ethernet Technology
    Gigabit Ethernet
  • Expansion Slot Type
    SFP
  • Form Factor
    DIN Rail Mountable Wall Mountable
  • Height
    5.4"
  • Input Voltage
    57 V DC
  • Layer Supported
    2
  • Limited Warranty
    5 Year
  • Manageable
    Yes
  • Manufacturer Part Number
    SISPM1040-362-LRT
  • Media Type Supported
    Optical Fiber Twisted Pair
  • Modular
    Yes
  • Network (RJ-45)
    Yes
  • Network Technology
    10/100/1000Base-T 1000Base-X
  • Number of SFP Slots
    2
  • Package Contents
    Managed Hardened Gigabit Ethernet PoE+ Switch Din Rail Bracket
  • Power Consumption
    8.20 W
  • Power Source
    Power Supply
  • Product Model
    SISPM1040-362-LRT
  • Product Name
    Managed Hardened PoE+ Switch
  • Product Type
    Ethernet Switch
  • Shared SFP Slot
    No
  • Stack Port
    Yes
  • TAA Compliant
    Yes
  • Total Number of Expansion Slots
    2.0
  • Total Number of Network Ports
    6
  • Uplink Port
    No
  • Width
    2.4"
