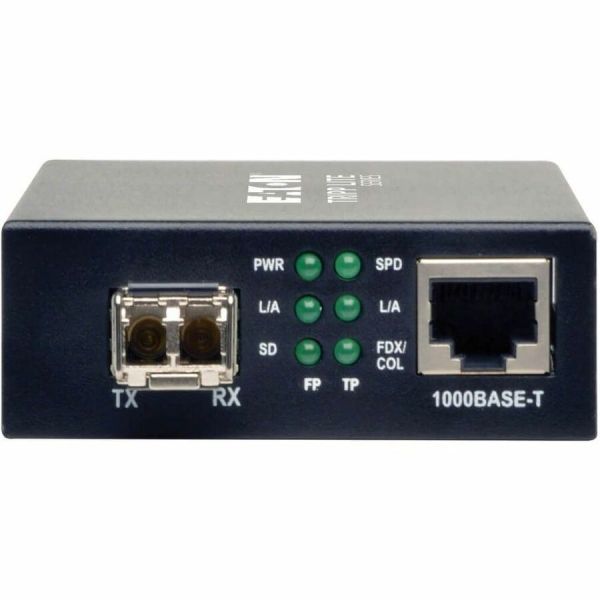

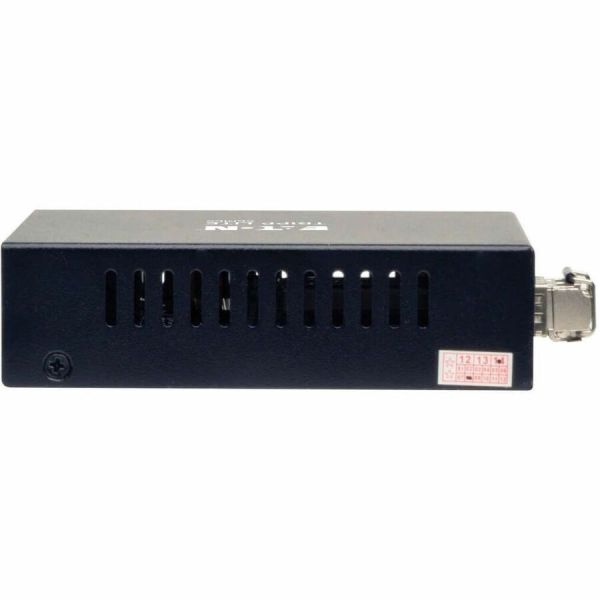

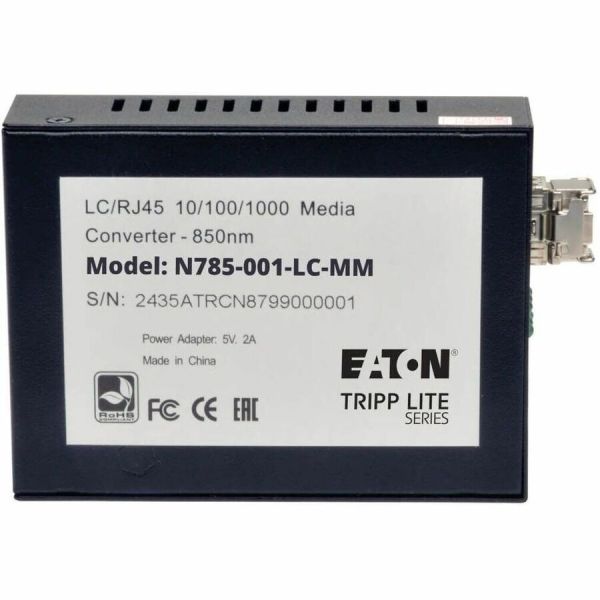

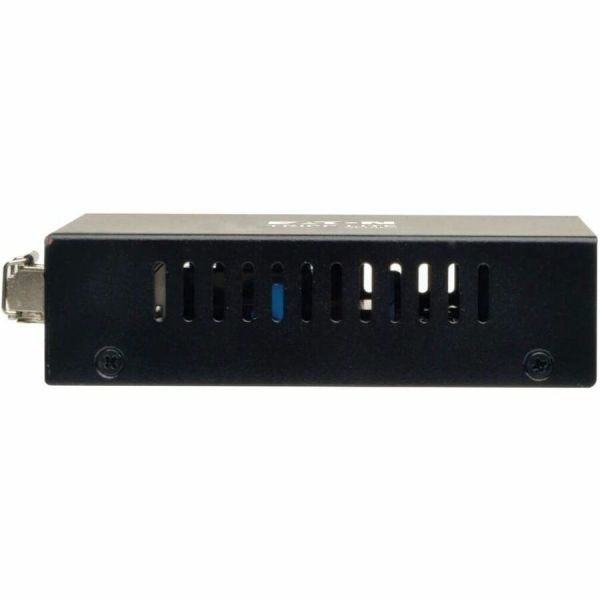

Tripp Lite by Eaton 10/100/1000 LC Multimode Fiber to Ethernet Media Converter 550M 850nm
- Extends a Gigabit Ethernet signal up to 550 meters over Multimode Fiber Optic Cable
- Auto detects Full/Half Duplex Transfer Mode
- Supports Multimode 50/125 cable up to 550M or 62.5/125 cable up to 400M
- For efficient encoding/decoding of data into light pulses and then sending them to the other end as electrical signals for a dependable photoelectric conversion
This product is sold out and we do not know when we will be getting another shipment. We apologize for any inconvenience this may cause.
Check similar items above to see if a replacement product is available.
Product Description
Tripp Lite by Eaton 10/100/1000 LC Multimode Fiber to Ethernet Media Converter 550M 850nm - Tripp Lite's N785-001-LC-MM 10/100/1000 to Multimode Media Converter ( RJ45 to LC ) is an economical way to extend the distance of network nodes up to 550M by converting Cat5e UTP cables to Multimode Fiber Optic. The Media Converter features automatic MDI/MDI-X configuration, and the UTP port senses the network speed automatically. Auto-detects half or full duplex operation on the fiber port. Power supplied by small form factor AC adapter.
More from the Manufacturer
- Extends a Gigabit Ethernet signal up to 550 meters over Multimode Fiber Optic Cable
- Auto detects Full/Half Duplex Transfer Mode
- Supports Multimode 50/125 cable up to 550M or 62.5/125 cable up to 400M
- For efficient encoding/decoding of data into light pulses and then sending them to the other end as electrical signals for a dependable photoelectric conversion
- With Optical Fiber cable, get the desired data transfer rate up to a required distance
- Expand your network capacity and fulfill requirement with this 2 transceiver/media converter
- With 10/100/1000Base-T technology get up to 1000Mbps data transfer rate over twisted pair cable
- Can be placed on Desktop surface for standalone installation
Product Specifications
-
Brand NameTripp Lite by Eaton
-
Certifications & StandardsFCC CE
-
Country of OriginChina
-
DVINo
-
Depth2.8"
-
Digital AudioNo
-
Digital Audio/VideoNo
-
Environmentally FriendlyYes
-
Ethernet TechnologyGigabit Ethernet
-
Fiber Mode SupportedMulti-mode
-
Form FactorDesktop
-
Height1"
-
Input Voltage5 V DC
-
Limited Warranty2 Year
-
Management PortNo
-
Manufacturer Part NumberN785001LCMM
-
Maximum Distance Supported1804.46 ft
-
Media Type SupportedOptical Fiber Twisted Pair
-
Network (RJ-45)Yes
-
Network Technology10/100/1000Base-T 1000Base-SX
-
Number of LC Ports1
-
Number of Network (RJ-45) Ports1
-
Parallel PortNo
-
Product ColorBlack
-
Product ModelN785-001-LC-MM
-
Product Name10/100/1000 LC Multimode Media Converter, 550M, 850nm
-
Product TypeTransceiver/Media Converter
-
Total Number of Ports2
-
USBNo
-
Width4.7"
