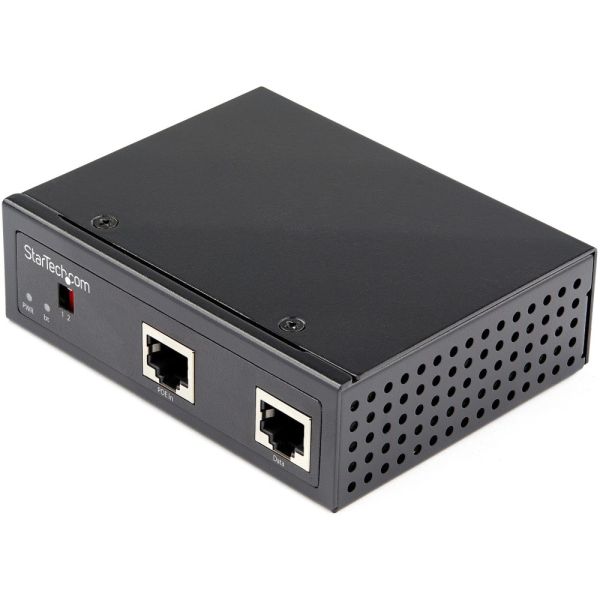

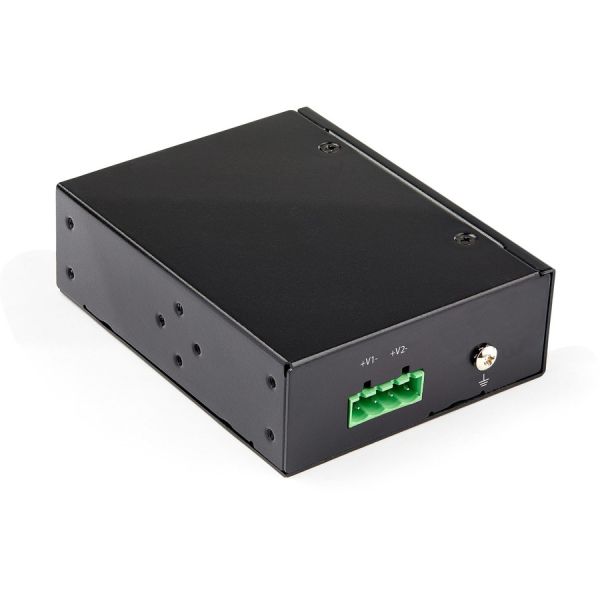

StarTech.com Industrial Gigabit PoE Splitter - 90W Power over Ethernet PoE++ Splitter - 12-48V DC Splitter 802.3bt Ultra PoE -40C to +75C

Product #: ODFN8978407
$150.94$178.88
Ships Free - This items ships free with your order
Delivered by Mon 12/22 Tue 12/23 - This is an estimated delivery timeline
Non-returnable - This is a non-returnable item

Product Description

StarTech.com Industrial Gigabit PoE Splitter - 90W Power over Ethernet PoE++ Splitter - 12-48V DC Splitter 802.3bt Ultra PoE -40C to +75C
Industrial gigabit PoE Splitter Power over Ethernet splitter up to 90W power with IEEE 802.3af/at/bt for PoE/PoE+/PoE++ MTBF 600k +hrs IP-30 housing -40C to +75C DIN/Wall mountable 12/16/24/48V DC (1.5A) termnial block power out 2-year warranty
Splits a PoE connection (max 90W) into separate data (RJ45) and DC power (terminal block) that can power any device that uses DC power between 12V-48VDC (1.5A). Power non-PoE devices using network infrastructure, where power is not available. Power Non-PoE Devices
Perfect for using PoE to power older devices while also providing network access for monitoring and control applications. Applications include:
Security (card swipe or proximity boxes)
Environmental monitoring (temperature/moisture sensors)
Telco (analog interface systems/conversion)
Straightforward Deployment

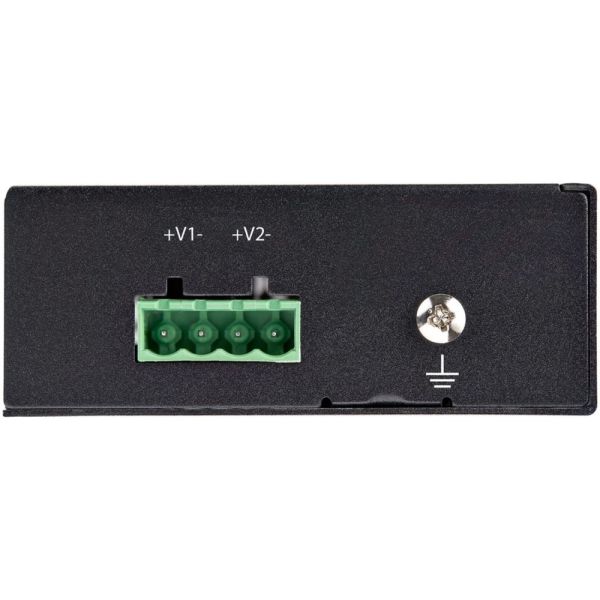

Supports IEEE 802.3af (PoE / Type 1), IEEE 802.3at (PoE+ / Type 2), and IEEE 802.3bt (PoE++ / Type 3) PoE inputs up to 90W and splits data and power. Power output via terminal block can be configured for 12/16/24/48V DC (1.5A).

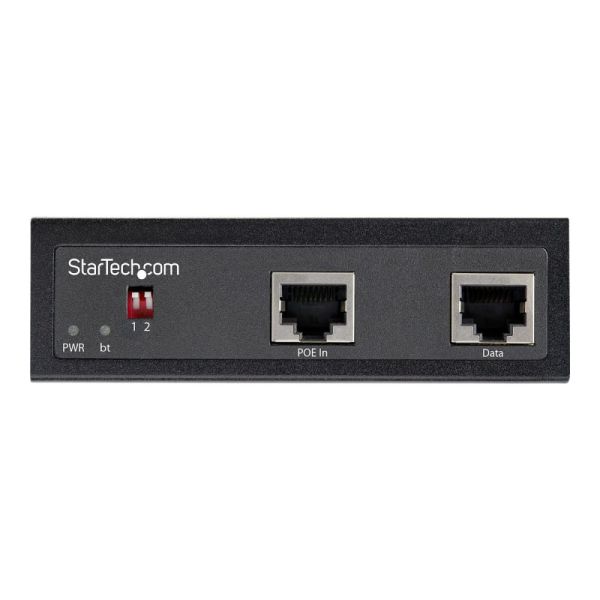

The configuration is completed by DIP switches and the product can be wall or DIN rail mounted using the included hardware. Designed for Harsh Environments
Industrial features include -40 C to 75 C operating temperature, IP-30 rated housing, vibration, shock, and free-fall standard testing.
Vibration: EN 60068-2-6
Shock: EN 60068-2-27
Free-Fall: EN 60068-2-32
600,000+ hours MTBF rating using Telcordia/Bellcore at 50 C for long-term reliability.
The POESLT1G48V is backed by a StarTech.com 2-year warranty and free lifetime technical support.
More from the Manufacturer
More from the Manufacturer
  • Designed for harsh environments. Industrial features include -40°C to 75°C operating temperature, IP-30 rated housing, vibration, shock, and free-fall standard testing.
  • Power non-PoE devices. Perfect for using PoE to power older devices while also providing network access for monitoring and control applications.
Related Articles
Need more information? Ask a Question

Product Specifications

  • Brand Name
    StarTech.com
  • Certifications & Standards
    IEEE 802.3 IEEE 802.3u IEEE 802.3ab IEEE 802.3at IEEE 802.3af IEC 61000-4-2 IEC 61000-4-4 IEC 61000-4-5 EN 60068-2-6 EN 60068-2-27 EN 60068-2-32 EN60950-1
  • Country of Origin
    TW
  • Environmental Compliance
    Waste Electrical and Electronic Equipment Directive (WEEE) Restriction of Hazardous Substances (RoHS)
  • Environmentally Friendly
    Yes
  • Form Factor
    DIN Rail/Wall Mountable
  • Height
    1.3"
  • Input Ports
    1 x PoE+
  • Length
    4.1"
  • Limited Warranty
    2 Year
  • Manufacturer
    STARTECH.COM
  • Manufacturer Part Number
    POESLT1G48V
  • Maximum Output Voltage
    48 V DC
  • Minimum Output Voltage
    12 V DC
  • Model
    POESLT1G48V
  • Output Ports
    1 x Ethernet 1 x Terminal Block
  • Package Contents
    POESLT1G48V PoE Splitter Quick-Start Guide Hardware Mounting Kit Terminal Block
  • Packaging
    1
  • Product Model
    POESLT1G48V
  • Product Name
    POESLT1G48V PoE Splitter
  • Product Type
    Power Splitter
  • Quantity
    1
  • Refurbished
    N
  • Width
    3.2"
