1250Mbps Gigabit Ethernet SFP (mini-GBIC) Module LC Multimode 550m
Product #:
ETLZ1012960614
Sold Out
This product is sold out and we do not know when we will be getting another shipment. We apologize for any inconvenience this may cause.
Check similar items above to see if a replacement product is available.
Product Description

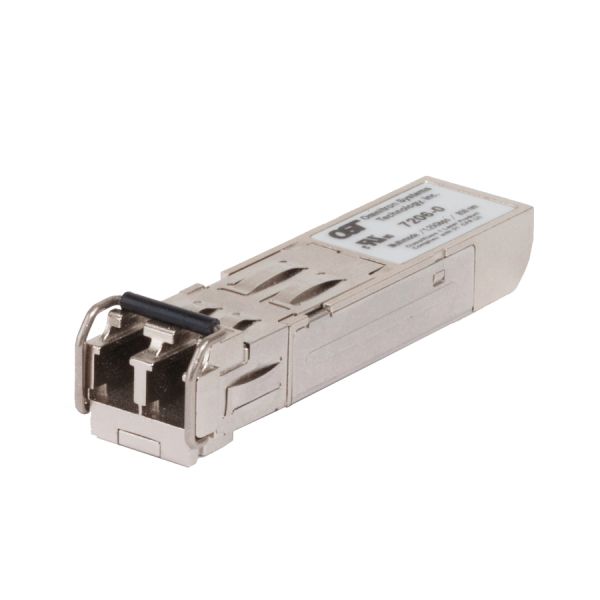

1250Mbps Gigabit Ethernet SFP (mini-GBIC) Module LC Multimode 550m
1 x 1000BASE-SX Fiber Optical Transceiver
Omnitron's Small Form Pluggable (SFP) and 10 Gigabit SFP+/XFP optical transceivers are interchangeable, compact media connectors. They enable a single network device to connect to a wide variety of fiber and copper cable types and distances.
Pluggable Optical Tranceivers are used to customize iConverter" , FlexPoint" , OmniConverter" and miConverter" products to meet specific networking protocols and media requirements. They support multimode dual fiber, single-mode dual fiber, single-mode single-fiber, Coarse Wave Division Multiplexing (see the CWDM Optical Transceiver Data Sheet) and Unshielded Twisted Pair copper cabling.
Pluggable Optical Tranceivers are used to customize iConverter" , FlexPoint" , OmniConverter" and miConverter" products to meet specific networking protocols and media requirements. They support multimode dual fiber, single-mode dual fiber, single-mode single-fiber, Coarse Wave Division Multiplexing (see the CWDM Optical Transceiver Data Sheet) and Unshielded Twisted Pair copper cabling.
- SFP (mini-GBIC) offers better usage with maximum efficiency and convenience
- With 1000Base-SX technology, enjoy up to 1000Mbps data transfer rate over optical fiber cable
- Gigabit Ethernet port for ultra-fast network speeds
- Optical fiber cable compatible - Spans afar and provides speedy data transmission rates between servers and network components
- With its thicker diameter to carry the light of multiple wavelengths, multi-mode fiber optic cable supports the high bandwidth to carry more information with greater fidelity
- Hot-pluggable form factor allows hassle-free and easy usage with increased efficiency
- SFP (mini-GBIC) with data networking application/usage for maximum dependability and convenience
Product Specifications
-
Additional Information1000Base-SX Temperature: 0° to +70° Wavelength: 1310nm Digital diagnostic capability Gigabit Ethernet, Fibre Channel,OC-12,OC-12/STM-4,STM-4
-
Application/UsageData Networking Optical Network
-
Brand NameOmnitron Systems
-
Certifications & StandardsCompliance: UL FCC Class A IEEE 802.3z 1000BASE-X
-
CompatibilityCompliant with Multi-Source Agreement (MSA)
-
Connector TypeLC
-
Country of OriginUnited States
-
Environmentally FriendlyYes
-
Ethernet TechnologyGigabit Ethernet
-
Fiber Mode SupportedMulti-mode
-
Form FactorHot-pluggable Hot-swappable
-
Interfaces/Ports Details1 x LC Duplex 1000Base-SX Network
-
Manufacturer Part Number7206-0
-
Maximum Distance Supported0.55 km
-
Media Type SupportedOptical Fiber
-
Network Technology1000Base-SX
-
Package TypeRetail
-
Product Model7206-0-x
-
Product Name1000BASE-SX Multimode 550m Small Form Pluggable Transceiver Module
-
Product TypeSFP (mini-GBIC)
-
Total Number of Ports1
