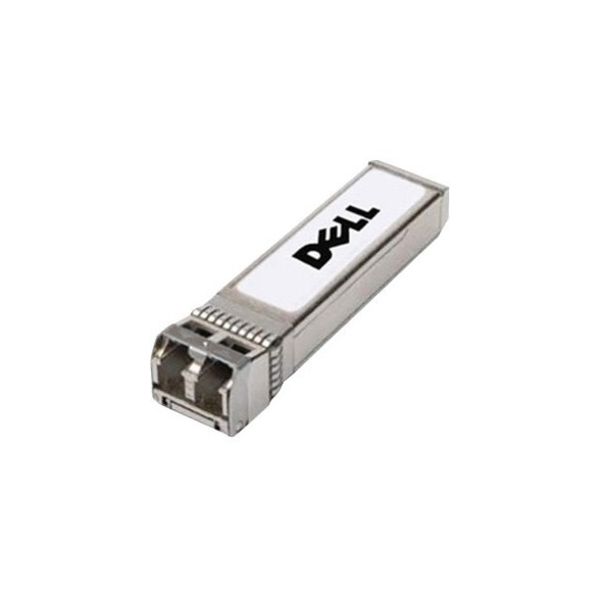

Dell SFP Optical Transceiver 1000Base-SX - up to 550 m
Product #:
SYNX4359410
Sold Out
This product is sold out and we do not know when we will be getting another shipment. We apologize for any inconvenience this may cause.
Check similar items above to see if a replacement product is available.
Product Description
Dell SFP Optical Transceiver 1000Base-SX - up to 550 m
For Data Networking, Optical Network - 1 x LC Duplex 1000Base-SX Network - Optical Fiber - Multi-mode - Gigabit Ethernet - 1000Base-SX - 1 Gbit/s - 0.55 km Maximum Distance - 1
The Dell SFP transceiver delivers fiber connectivity to extend the range of your network. This hot-pluggable transceiver with SFP (Small Form Factor Pluggable) footprint features a duplex LC connector. The Dell networking 1000BASE-SX SFP transceiver provides 1GbE connectivity up to 550 m.
Additionally, it provides a unique enhanced digital diagnostic monitoring interface, which allows real-time access to device operating parameters such as transceiver temperature, laser bias current, transmitted optical power, received optical power, and transceiver supply voltage.
Additionally, it provides a unique enhanced digital diagnostic monitoring interface, which allows real-time access to device operating parameters such as transceiver temperature, laser bias current, transmitted optical power, received optical power, and transceiver supply voltage.
- SFP (mini-GBIC) offers better usage with maximum efficiency and convenience
- With 1000Base-SX technology, enjoy up to 1000Mbps data transfer rate over optical fiber cable
- Up to 10x faster than standard Ethernet connection and provides high-performance
- Optical Fiber media support for efficient and reliable connectivity
- Typically used for short distance, multi-mode fiber optic is ideal to carry data and transmit audio/video applications within a building
- Hot-pluggable form factor for your convenience and simplicity of usage
- SFP (mini-GBIC) with data networking application/usage for maximum dependability and convenience
Product Specifications
-
Application/UsageData Networking Optical Network
-
Brand NameDell
-
CompatibilityMSA Complaint Dell Networking N-Series Switches: N4000 N4032 N4032F N4064 N4064F N2024 N2024P N2048 N2048P N3024 N3024F N3024P N3048 N3048P Dell PowerConnect Switches: 2848 5524 5524P 5548 5548p 6224 6224F 6224P 6248 6248P 7024 7024F 7024P 7048 7048P 7048R 8100
-
Connector TypeLC
-
Country of OriginChina
-
Depth18.5 ft
-
Ethernet TechnologyGigabit Ethernet
-
Fiber Mode SupportedMulti-mode
-
Form FactorHot-pluggable
-
Height3.3"
-
Interfaces/Ports Details1 x LC Duplex 1000Base-SX Network
-
Manufacturer Part Number407-BBOR
-
Maximum Data Transfer Rate1 Gbit/s
-
Maximum Distance Supported0.55 km
-
Media Type SupportedOptical Fiber
-
Network Technology1000Base-SX
-
Product NameSFP Optical Transceiver 1000Base-SX - up to 550 m
-
Product TypeSFP (mini-GBIC)
-
Total Number of Ports1
-
Width52.8"
