Transition Networks M.2 Gigabit Ethernet Fiber Network Interface Card

Product #: ETLZ1040919007
$299.09
Ships Free - This items ships free with your order
Delivered by Mon 12/15 Tue 12/16 - This is an estimated delivery timeline
Non-returnable - This is a non-returnable item

Product Description

Transition Networks M.2 Gigabit Ethernet Fiber Network Interface Card
M.2 - 1 Port(s) - Optical Fiber - 1000Base-SX

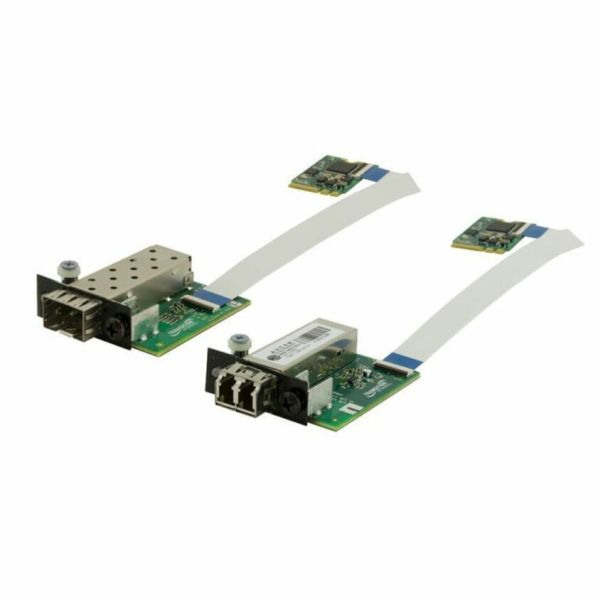

Transition Networks M.2 Gigabit Ethernet Fiber Network Interface Card (NIC) provides a fiber optic interface for the Dell OptiPlex 7040 and 7050 Micro PCs and the Wyse 7000 Series thin clients. The NM2-GXE-2230-xx-01 Series consists of a M.2 NIC that installs into the OptiPlex Micro PC's M.2 "E key" interface, a fiber optic adapter that installs into the OptiPlex Micro PC's Option port, and a 20-pin Flat Flex Cable (FFC) that connects the NIC to the fiber adapter. The fiber optic adapter is available with either a 1000Base-SX LC optic or open SFP (SFP module sold separately).
  • PCI Express M.2 compliant
  • A + E keyed M.2 interface
  • Full duplex
  • IPv6 Capable
  • Supports PXE boot
  • Jumbo frame support 9014 bytes
  • 1000Base-SX multimode LC fiber connector or open SFP interface
  • This Gigabit Ethernet card guarantees a replacement networking interface to client, server or workstation
  • The M.2 interface provides smooth data transfer and outstanding performance
  • This single port gigabit ethernet card enables you to connect your computer system to your existing network
  • Supports optical fiber cable to span longer distances and provides data transmission rates par excellence between servers and network components
  • With the 1000Base-SX technology get up to 1000Mbps data transfer rate over the optical fiber cable
Related Articles
Need more information? Ask a Question

Product Specifications

  • Brand Name
    Transition Networks
  • Country of Origin
    Taiwan
  • Depth
    1.2"
  • Device Supported
    Server
  • Environmental Compliance
    Restriction of Hazardous Substances (RoHS) Waste Electrical and Electronic Equipment Directive (WEEE)
  • Environmentally Friendly
    Yes
  • Expansion Slot Type
    SFP
  • Fiber Mode Supported
    Multi-mode
  • Form Factor
    Plug-in Card
  • Height
    0.1"
  • Host Interface
    M.2
  • Limited Warranty
    Lifetime
  • Manufacturer Part Number
    NM2-GXE-2230-LC-01
  • Maximum Data Transfer Rate
    1000 Mbit/s
  • Media Type Supported
    Optical Fiber
  • Network Technology
    1000Base-SX
  • Operating System Compatibility
    Windows 10 Windows 8 Windows 8.1 Windows 7 Linux
  • Product Model
    NM2-GXE-2230-LC-01
  • Product Name
    M.2 Gigabit Ethernet Fiber Network Interface Card
  • Product Series
    NM2-GXE-2230-xx-01
  • Product Type
    Gigabit Ethernet Card
  • TAA Compliant
    Yes
  • Total Number of Ports
    1
  • Width
    0.9"
