Transition Networks Stand-alone Fast Ethernet Media Converter 100Base-TX to 100Base-FX

Product #: IGRM7RA969
$207.45
Ships Free - This items ships free with your order
Delivered by Mon 12/15 Tue 12/16 - This is an estimated delivery timeline
Non-returnable - This is a non-returnable item

Product Description

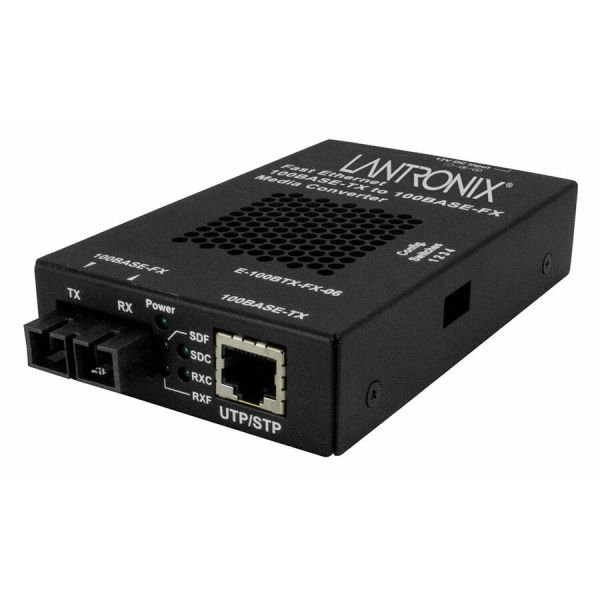

Transition Networks Stand-alone Fast Ethernet Media Converter 100Base-TX to 100Base-FX
1 x Network (RJ-45) - 1 x SC Ports - Multi-mode - 0.1 mil Fiber - Fast Ethernet - 100Base-TX, 100Base-FX - 2 km - AC/DC - Standalone, Rack-mountable, Shelf Mount, DIN Rail Mountable, Wall Mountable
The E-100BTX-FX-06 is a stand-alone media converter that provides an interface between 100Base-TX ports and 100Base-FX ports, allowing users to integrate fiber optic cabling into 100Base-TX copper environments. Operating at Layer 1, the physical layer, data is passed through the converter at line speed, making it ideal for applications where low latency is essential.
  • Used in pairs or as a single unit to integrate fiber into a 100base copper environment
  • Low latency, layer 1 design
  • Auto-negotiation
  • Auto-MDI/MDIX
  • Active link pass through
  • Far-End-Fault (FEF)
  • Pause
  • Automatic link restoration
  • Supports all 100Mbps SFP Modules
  • With Optical Fiber cable, get the desired data transfer rate up to a required distance
  • Expand your network capacity and fulfill requirement with this 2 transceiver/media converter
  • With 100Base-TX technology get up to 100Mbps data transfer rate over optical fiber cable
  • The Standalone provides convenient installation
Guides & Information
Related Articles
Need more information? Ask a Question

Product Specifications

  • Additional Information
    100Base-TX (RJ-45) [100 m/328 ft.] to 100Base-FX 1300nm multimode (SC) [2 km/1.2 mi.] Link Budget: 11.0 dB
  • Application/Usage
    Data Network
  • Brand Name
    Transition Networks
  • Certifications & Standards
    Regulatory: FCC Class A, EN55024, EN55022 Class A, EN61000, CE Mark
  • Depth
    4.7"
  • Environmental Compliance
    Restriction of Hazardous Substances (RoHS) Waste Electrical and Electronic Equipment Directive (WEEE)
  • Environmentally Friendly
    Yes
  • Ethernet Technology
    Fast Ethernet
  • Fiber Mode Supported
    Multi-mode
  • Fiber Optic Cable Wavelength
    1300 nm
  • Form Factor
    DIN Rail Mountable Rack-mountable Shelf Mount Standalone Wall Mountable
  • Height
    1"
  • Input Voltage
    230 V AC 120 V AC
  • Limited Warranty
    Lifetime
  • Manufacturer Part Number
    E-100BTX-FX-06(SC)-NA
  • Maximum Data Transfer Rate
    100 Mbit/s
  • Maximum Distance Supported
    2 km
  • Media Type Supported
    Optical Fiber Twisted Pair
  • Network (RJ-45)
    Yes
  • Network Technology
    100Base-FX 100Base-TX
  • Number of Network (RJ-45) Ports
    1
  • Number of SC Ports
    1
  • Package Contents
    Stand-alone Fast Ethernet Media Converter 100Base-TX to 100Base-FX Power Supply (North America)
  • Power Consumption
    1.75 W
  • Power Source
    AC/DC
  • Product Model
    E-100BTX-FX-06
  • Product Name
    Stand-alone Fast Ethernet Media Converter 100Base-TX to 100Base-FX
  • Product Series
    E-100BTX-FX-06
  • Product Type
    Transceiver/Media Converter
  • TAA Compliant
    Yes
  • Total Number of Ports
    2
  • Width
    3"
