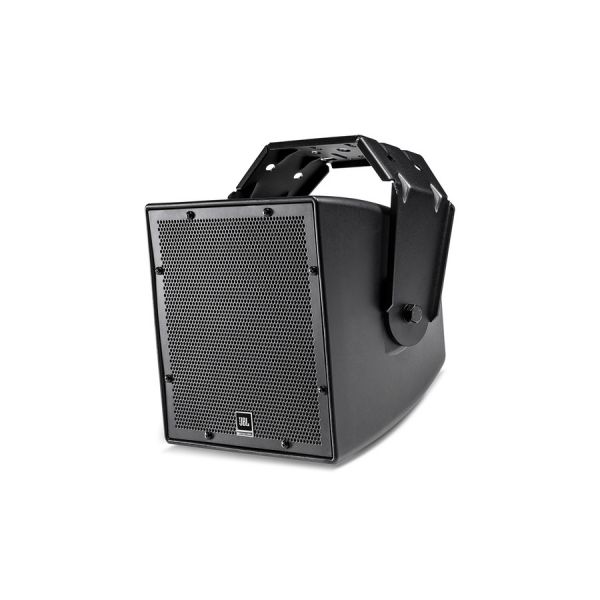

JBL Professional All Weather AWC62 2-way Indoor/Outdoor Speaker - 120 W RMS - Black
Product #:
SYNX5572579
$475.00
Loading...
Product Description
JBL Professional All Weather AWC62 2-way Indoor/Outdoor Speaker - 120 W RMS - Black
175 W (PMPO) - 6.50" Kevlar Woofer - 1" - 70 Hz to 18 kHz - 8 Ohm
Applications:
The AWC62 is a compact, coaxial-driver, 2-way, highly weather-resistant full-range loudspeaker system which is ideal for speech and music-fill in a wide variety of applications, including sports facilities, racetracks, stadiums, fairgrounds, rodeos, skating rinks, themed entertainment venues, cruise ships, water parks, outdoor background music/ paging systems, swimming pools, and a wide variety of other outdoor or indoor venue types.
The AWC62 is comprised of a high-power coaxial 165 mm (6.5 in) low frequency driver and 25 mm (1 in) high frequency compression driver. The co-axial design utilizes a unique tapered pole-piece design and transitions to the cone of the low frequency driver as a large diameter pattern control horn for the high frequencies, both eliminating high-frequency beaming which is common among this category of speaker and extending pattern control to the lowest possible frequencies. The result is a coaxial speaker with wide, extremely consistent 110° coverage on a broadband basis.
Component features include a Kevlar-reinforced low frequency cone for reliability, well-damped surround for smooth frequency response, high temperature voice coil and a reduced distortion design through saturated-gap magnet geometry.
The paintable enclosure is constructed of thick, ABS plus fiberglass and is heavily braced to maximize low-frequency performance. The corrosion-resistant zinc-rich extra-thick powder coated steel grille is backed with open cell foam and high thread-count mesh, providing excellent protection in the harshest environments. The system is rated IP-56, per IEC529 when installed at minimum 5° down-tilt.
The system is equipped with a 120W 70V/100V multi-tap transformer. Connection is made via outdoor-rated terminals in a recessed terminal cup. A protective terminal compartment cover is included, along with gland nut, which forms a water-tight seal with round-jacketed cable having outside diameter between 4 mm (0.16 in) and 9 mm (0.36 in).
A heavy-duty weather-capable zinc-rich, thick powder coated U-type mounting bracket is included.
The AWC62 is a compact, coaxial-driver, 2-way, highly weather-resistant full-range loudspeaker system which is ideal for speech and music-fill in a wide variety of applications, including sports facilities, racetracks, stadiums, fairgrounds, rodeos, skating rinks, themed entertainment venues, cruise ships, water parks, outdoor background music/ paging systems, swimming pools, and a wide variety of other outdoor or indoor venue types.
The AWC62 is comprised of a high-power coaxial 165 mm (6.5 in) low frequency driver and 25 mm (1 in) high frequency compression driver. The co-axial design utilizes a unique tapered pole-piece design and transitions to the cone of the low frequency driver as a large diameter pattern control horn for the high frequencies, both eliminating high-frequency beaming which is common among this category of speaker and extending pattern control to the lowest possible frequencies. The result is a coaxial speaker with wide, extremely consistent 110° coverage on a broadband basis.
Component features include a Kevlar-reinforced low frequency cone for reliability, well-damped surround for smooth frequency response, high temperature voice coil and a reduced distortion design through saturated-gap magnet geometry.
The paintable enclosure is constructed of thick, ABS plus fiberglass and is heavily braced to maximize low-frequency performance. The corrosion-resistant zinc-rich extra-thick powder coated steel grille is backed with open cell foam and high thread-count mesh, providing excellent protection in the harshest environments. The system is rated IP-56, per IEC529 when installed at minimum 5° down-tilt.
The system is equipped with a 120W 70V/100V multi-tap transformer. Connection is made via outdoor-rated terminals in a recessed terminal cup. A protective terminal compartment cover is included, along with gland nut, which forms a water-tight seal with round-jacketed cable having outside diameter between 4 mm (0.16 in) and 9 mm (0.36 in).
A heavy-duty weather-capable zinc-rich, thick powder coated U-type mounting bracket is included.
- The 2-way speakers give smooth and precise production of sound to deliver an ultimate audio experience
- 8 Ohm impedance extracts maximum power so you will get more output from your speakers
- Hear low subs and soaring vocals with a frequency range of sound from 70 Hz-18 kHz
- Uproar the bass as loud as you want with 120 W RMS power without any blaring
- 6.50" woofer driver size allows better stereo imaging with maximum sound feasibility
- 1" tweeter driver size provides crispier, well-detailed sound with maximum productivity
- Offers great productivity with 18 kHz maximum frequency response
- 120 dB sensitivity for efficient conversion of power into sound to produce adequate audio output
- Weather Proof durability for maximum productivity with added dependability
- Indoor/outdoor Speaker speaker installation for better-sound output efficiency with maximum audio listening usability
Loading...
Product Specifications
-
Application/UsageAmusement Park Cruise Ship Entertainment Center Fairground Indoor/Outdoor Music/Paging System Racetrack Rodeo Skating Rink Sports Bar Stadium Swimming Pool
-
Brand NameJBL Professional
-
Country of OriginChina
-
Crossover Type2-way
-
DurabilityWeather Proof
-
Impedance8 Ohm
-
Manufacturer Part NumberAWC62-BK
-
Maximum Frequency Response18 kHz
-
Minimum Frequency Response70 Hz
-
PMPO Output Power175 W
-
Package ContentsAll-Weather Compact 2-Way Coaxial Loudspeaker with 6.5" LF U-Bracket Zinc-Rich Extra Thick Powder Coated, Steel
-
Product ColorBlack
-
Product LineAll Weather
-
Product ModelAWC62
-
Product NameAll-Weather Compact 2-Way Coaxial Loudspeaker with 6.5" LF
-
Product TypeSpeaker
-
RMS Output Power120 W
-
Sensitivity120 dB
-
Tweeter Driver Size1"
-
Woofer Driver MaterialKevlar
-
Woofer Driver Size6.50"
