Vertiv Geist Rack PDU - Combination Outlet| C13 / C19| 30A| 208V (VP43301)

Product #: SYNX5828344
Sold Out

This product is sold out and we do not know when we will be getting another shipment. We apologize for any inconvenience this may cause.

Check similar items above to see if a replacement product is available.

Product Description

Vertiv Geist Rack PDU - Combination Outlet| C13 / C19| 30A| 208V (VP43301)
36 Hybrid Outlets C13 / C19| For C14 and C20 plugs| 30A| 208V| 4.9kW| L6-30P| 0U Rack Power Distribution Unit

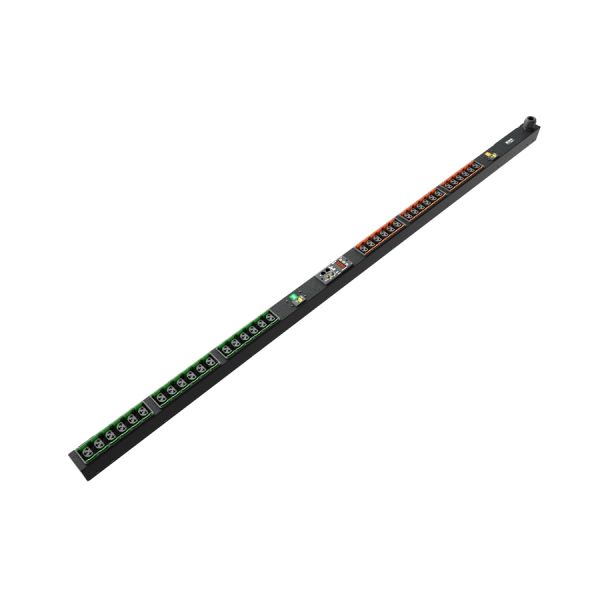

The Vertiv Geist NI30684 rPDU is a versatile rack power distribution unit featuring 36 Combination C13/C19 Outlets. The NI30684 is a 30A, 208V single phase upgradeable rack PDU with an L6-30P plug and 10ft power cord. The NI30684 provides unit level remote power monitoring and environmental monitoring capabilities with the addition of optional environmental sensors. Remotely monitor and manage the rPDU through any web browser or via serial communication. The Combination C13/C19 Outlets accommodate C14 and C20 plugs interchangeably. The high retention outlets reduce the risk of costly downtime from accidental disconnections of the power cord and are also P-Lock compatible. The hot-swappable IMD provides peace of mind that as business needs change the technology can easily be updated.
More from the Manufacturer
  • With monitored PDU, you can remotely monitor single-or three-phase voltage easily
  • IEC 60320 C13 receptacle type to ensure maximum usability and reliable power output
  • Single Phase phase PDU provides dependable power output with maximum efficiency
  • NEMA L6-30P plug/connector type for reliable, productive connectivity and optimal power output
  • 230 V AC input voltage for optimal performance with maximum usability
  • 240 V AC output voltage for better reliance and maximum usability
Guides & Information
Related Articles
Need more information? Ask a Question

Product Specifications

  • Brand Name
    VERTIV
  • Certifications & Standards
    FCC Part 15 Class A Conformance UL & c-UL Listed 60950
  • Cord Length
    10 ft
  • Country of Origin
    United States
  • Depth
    2"
  • Environmental Compliance
    Restriction of Hazardous Substances (RoHS) China Restriction of Hazardous Substances (China RoHS)
  • Environmentally Friendly
    Yes
  • Height
    66.3"
  • Input Current
    30 A
  • Input Voltage
    230 V AC
  • Input Voltage Range
    200 V AC - 240 V AC
  • Length
    2"
  • Limited Warranty
    5 Year
  • Management
    DHCP HTTP HTTPS IPv4 IPv6 LDAP NTP RADIUS RSTP SSH SMTP SNMP (v1/v2c/v3) Syslog TACACS+
  • Manufacturer Part Number
    VP43301
  • Modem (RJ-11)
    No
  • Mount Type
    Cabinet-mountable Rack-mountable
  • Mounting Orientation
    Vertical
  • Network (RJ-45)
    Yes
  • Output Voltage
    240 V AC
  • Output Voltage Range
    200 V AC - 240 V AC
  • Phase
    Single Phase
  • Plug/Connector Type
    NEMA L6-30P
  • Power Rating (Watt)
    4900 W
  • Product Color
    Black
  • Product Name
    GU NI30684 PDU
  • Product Series
    N
  • Product Type
    PDU
  • Protection Type
    Overcurrent Protection
  • Rack Height
    0U
  • Receptacle Type
    IEC 60320 C13 IEC 60320 C19
  • Remote Outlet Switching
    No
  • Serial Port
    Yes
  • USB
    Yes
  • Width
    2"
