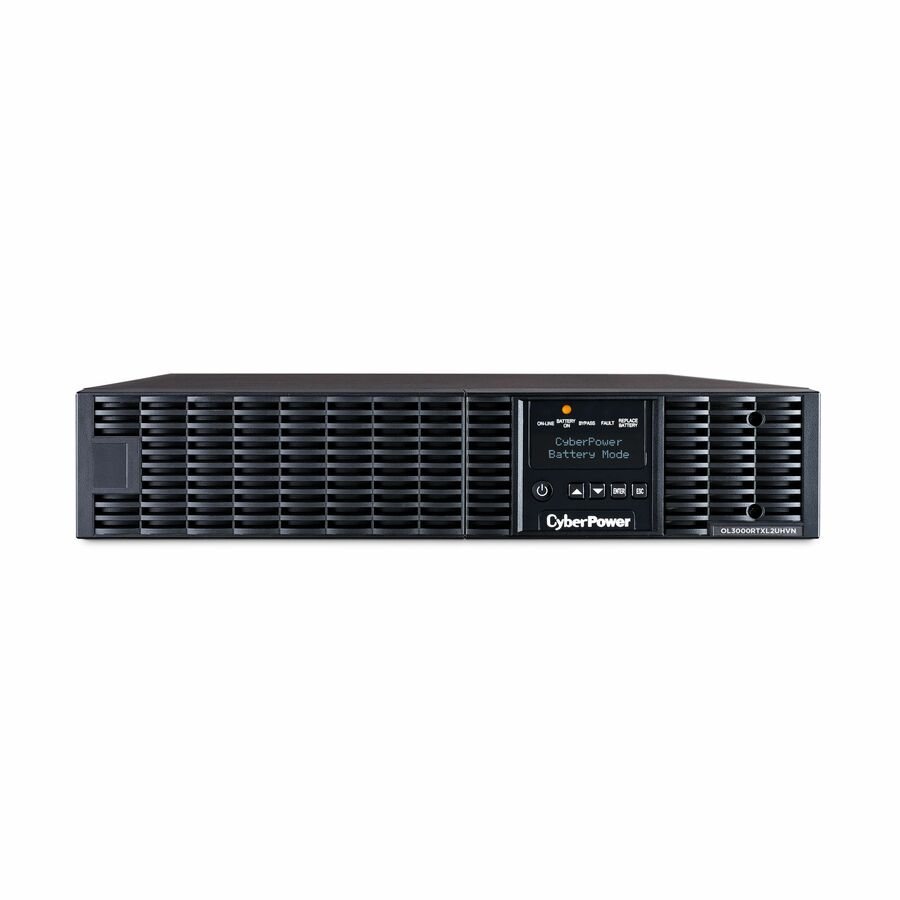

CyberPower OL3000RTXL2UHVN Smart App Online UPS Systems

3000VA/2700W, 200 - 240 VAC, NEMA L6-20P, 2U, Rack / Tower, Sine Wave, 3 Outlets, LCD, PowerPanel Business, $400000 CEG, 3YR Warranty
Product Number: ETLZ1054342944
  • Capacity: 3000 VA / 2700 W
  • Power Factor (PF): 0.9
  • Topology: Double-Conversion
  • Waveform: Sine Wave
More details
Sold Out

This product is sold out and we do not know when we will be getting another shipment. We apologize for any inconvenience this may cause.

Check similar items above to see if a replacement product is available.

Product Description

CyberPower OL3000RTXL2UHVN Smart App Online UPS Systems - Prevent business interruptions and safeguard mission-critical enterprise network equipment.
The CyberPower OL3000RTXL2UHVN is a rack/tower UPS with double conversion topology. It provides sine wave output to critical applications and equipment that require seamless power correction. The Extended Battery Module (EBM) expands runtime, and Fast Charge Technology restores full backup power faster. This model comes with an extendable LCD control panel, Smart Battery Management charging technology, and energy-saving GreenPower UPS ECO Mode.
The OL3000RTXL2UHVN offers generator compatibility and delivers clean AC power with zero transfer time. A factory installed RM card allows remote management and configuration of the UPS via a standard web browser, command line interface (CLI), or network management system (NMS). Its sine wave output keeps sensitive equipment working by preventing unnecessary shutdowns that can occur with simulated sine wave output.
With a $400,000 lifetime connected equipment guarantee and a three-year warranty, you can trust CyberPower's commitment to high quality.
More from the Manufacturer

  • Capacity: 3000 VA / 2700 W
  • Power Factor (PF): 0.9
  • Topology: Double-Conversion
  • Waveform: Sine Wave
  • Output: 200, 208, 220, 230, 240 V ±2% (configurable)
  • Plug type & cord: NEMA L6-20P, 10 ft. cord
  • Outlet types: 2 × NEMA L6-20R, 1 × NEMA L6-30R
  • Monitoring & Management: USB, Serial, RMCARD205, Relay, EPO
  • Data line surge protection: Telephone, Network
  • Management software: PowerPanel Business Edition
  • Offers power supply with zero transfer time taken to the battery and proves ideal for voltage sensitive equipments
  • Keep your sensitive devices powered with a backup of up to 3.50 minute at full load
CyberPower logo
Guides & Information
Related Articles
 Need more information? Ask a Question
Read More

Product Specifications

  • Additional Information
    Replacement Battery Cartridge Quantity: 1 Smart Battery Management (SBM) Mode: Yes Circuit Breaker: 20A Cold Start: Yes Input Power Factor: 0.99 Crest Factor: 3:1 ECO Mode Voltage Regulation: ±10%, ±15% (Configurable) Harmonic Distortion: < 3% at Linear Load Nominal Output Voltage: 200 - 240 VAC On Battery Frequency: 50/60 Hz ± 0.25Hz (auto-sensing or configurable) Output Power Factor: 0.9 Overload Protection: Line Mode: 105% ~ 125% Load - 1 min Short Circuit Protection: UPS Output Cut Off Immediately or Input Fuse / Circuit Breaker Protection Phone / Network Protection RJ11/RJ45: 1-In / 1-Out (Combo) Dry Contacts: Yes Expansion Slot: Yes - RMCARD205 pre-installed LCD: Multifunction LCD Management Cable: USB Cable Removable LCD Control Panel Option: Yes - Requires DB26 cable (not included) Rotatable LCD Control Panel Option: Yes Upgradeable firmware: Yes Material of Construction: Metal Mounting Hardware: Yes ECO Mode Thermal Dissipation: 207 BTU/hr
  • Alarm
    Battery Mode Low Battery Overload UPS Fault
  • Application/Usage
    Edge Computing Electronic Device High-end System Component Lab Equipment Network Device PBX System Server VoIP
  • Battery Capacity
    9000 mAh
  • Battery Chemistry
    Lead Acid
  • Battery Size
    12V
  • Brand Name
    CyberPower
  • Certifications & Standards
    UL 1778
  • Country of Origin
    Philippines
  • DC System Voltage
    12 V DC
  • Dataline Protection
    RJ-11 RJ-45
  • Depth
    23.6"
  • Directly Connected Equipment Guarantee
    $400000 Lifetime
  • EMI/RFI Noise Filter
    Yes
  • EPO Port
    Yes
  • Energy Saving
    ECO Mode Efficiency >97%
  • Environmentally Friendly
    Yes
  • Form Factor
    Rack/Tower
  • Height
    3.5"
  • Input Frequency
    70 Hz
  • Input Voltage
    120 V AC 230 V AC
  • Input Voltage Range
    120 V AC - 139 V AC 200 V AC - 240 V AC
  • Limited Warranty
    3 Year
  • Load Capacity (VA)
    3000 VA
  • Manufacturer Part Number
    OL3000RTXL2UHVN
  • Maximum Operating Elevation
    10000 ft
  • Maximum Operating Temperature
    104°F (40°C)
  • Maximum Storage Elevation
    50000 ft
  • Network Management
    SNMP/HTTP/CLI Remote Monitoring
  • Number of Batteries
    6
  • Operating Humidity
    0% - 90%
  • Output Frequency
    60 Hz
  • Output Voltage
    200 V AC 208 V AC 220 V AC 230 V AC 240 V AC
  • Overload Protection
    Yes
  • Package Contents
    Smart App Online OL3000RTXL2UHVN 3KVA Rack/Tower UPS User Manual Registration Card 2 x Rackmount Rails 2 x Rackmount Ears 2 x Hanging Brackets Phone Line USB Communication Cable Serial Interface Cable (RS-232) 8 x M5X7L Black Flat Head Screws 12 x M5X12L Black Pan Head Screws 6 x M5X6L Silver Pan Head Screws 8 x Plastic Washers 12 x Screw Hole Dust Covers 12 x Rubber Pads Software Download Card
  • Plug/Connector Type
    NEMA L6-20P
  • Product Color
    Black
  • Product Model
    OL3000RTXL2UHVN
  • Product Name
    Smart App Online OL3000RTXL2UHVN 3KVA Rack/Tower UPS
  • Product Series
    Smart App Online UPS
  • Product Type
    Double Conversion Online UPS
  • Rack Height
    2U
  • Receptacle Detail
    1 x NEMA L6-30R 2 x NEMA L6-20R
  • Receptacle Type
    NEMA L6-20R NEMA L6-30R
  • Replaceable Battery
    Yes
  • Serial Port
    Yes
  • Software Included
    PowerPanel Business
  • Sound Emission (A-Weighted)
    38 dB(A)
  • Status Indicators
    Power On (white) Line Mode (green) Battery Mode (yellow) Bypass Mode (yellow) Fault (red) Replace Battery (red)
  • Storage Relative Humidity
    0% - 95%
  • Storage Temperature
    -4°F (-20°C) - 113°F (45°C)
  • Surge Energy Rating
    445 J
  • Thermal Dissipation
    231.53 W
  • Transfer Time
    0 ns
  • Typical Battery Recharge Time
    4 Hour
  • USB (HID Compliant) Port
    Yes
  • Waveform Type
    Sine Wave
  • Width
    17"
