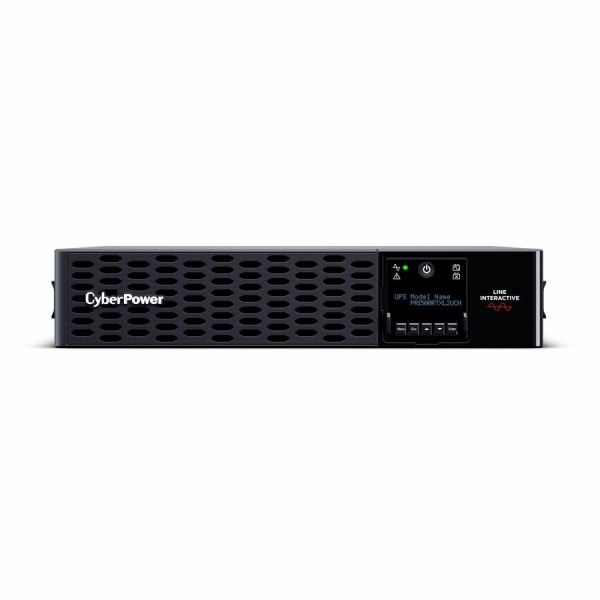

CyberPower PR1500RTXL2UCN Smart App Sinewave UPS Systems

Product #: ETLZ1078919774
$1,447.31
Ships Free - This items ships free with your order
Delivered by Mon 12/15 Tue 12/16 - This is an estimated delivery timeline
Non-returnable - This is a non-returnable item

Product Description

CyberPower PR1500RTXL2UCN Smart App Sinewave UPS Systems
1500VA/1500W, 100 - 125 VAC, NEMA 5-15P, 2U, Rack / Tower, Sine Wave, 8 Outlets, LCD, PowerPanel Business, $400000 CEG, 3YR Warranty
The PR1500RTXL2UCN is a Smart App Sinewave rack/tower convertible UPS with line-interactive topology, surge protection, and battery backup. CyberPower's Smart App Sinewave series has sine wave output to eliminate power gaps that can be detected by sensitive equipment and cause unexpected shutdowns.
The Smart App Sinewave PR1500RTXL2UCN improves battery life through battery equalization technology and Automatic Voltage Regulation (AVR), which corrects minor power fluctuations without switching to battery power. The enhanced chassis design with an easy-to-access toolless front panel, captive screws for battery panel access, and color-coded rear panel make battery changes and installations simple and fast. The PR1500RTXL2UCN also has an innovative LCD panel that rotates 90°, tilts for a better viewing angle, and provides information on 47 different settings including UPS stats, UPS setup and control management, and testing options.
This model accepts the BP48VP2U02 Extended Battery Module (EBM) for expanded runtime during power outages and includes pre-installed RMCARD205 network management card for remote management and control via a standard web browser or network management system. Includes built in cloud monitoring.
With a $400,000 connected equipment guarantee and a three-year warranty, you can trust CyberPower's commitment to the quality of the PR1500RTXL2UCN.
  • Capacity:
  • 1500 VA / 1500 W
  • Topology:
  • Line Interactive
  • Waveform:
  • Sine Wave
  • Output:
  • 100-125 VAC ± 5%
  • Runtime (half/full):
  • 17.9 minutes / 6.5 minutes
  • Plug type & cord:
  • NEMA 5-15P, 10 ft. cord
  • Outlets:
  • 8 surge + battery backup
  • Outlet types:
  • 8 × NEMA 5-15R
  • Communication:
  • USB, Serial, SNMP, Relay, Cloud, EPO
  • Management software:
  • PowerPanel Business Edition
  • Remote management:
  • Yes, pre-installed RMCARD205. Includes Built in Cloud Monitoring
  • Warranty:
  • 3 year
  • Connected Equipment Guarantee:
  • $400,000
  • ENERGY STAR certified:
  • Yes
  • Works adequately in situations where the supply is prone to sags and surges
  • Up to 6.50 minute runtime on full load to preserve critical data from power shortage interruptions
  • Prevent critical data loss by staying powered during a blackout with up to 1500 W load capacity
  • 1500 VA load capacity provides sufficient backup during power failures
  • Overload protection feature effectively prevents motor damage by monitoring the current in the motor circuit and breaking the circuit when an electrical overload is detected
  • 4 batteries for maximum feasibility and added productivity
  • 12V battery size for better reliance and dependable usability
  • 9000 mAh battery capacity for dependable, faster charging to ensure maximum convenience and usability
  • 3 Hour typical battery recharge time to allow optimal performance for longer hours with added efficiency
  • Replaceable battery for maximum feasibility and better usability
CyberPower logo
Guides & Information
Related Articles
Need more information? Ask a Question

Product Specifications

  • Additional Information
    Active PFC Compatible : Yes Energy Saving : GreenPower UPS Bypass Technology Energy Star Certified : Yes UPS Topology : Line Interactive Battery Quantity : 4 Battery Size : 12 V / 9 Ah Battery Type : Sealed Lead-Acid Battery Extended Battery Module : BP48VP2U02 Hot Swappable : Yes Replacement Battery Cartridge : RB1290X4J Replacement Battery Cartridge Quantity : 1 Runtime at Full Load : 6.5 min Runtime at Half Load : 17.9 min Typical Recharge Time : 3 Hours (0% to 90% charged) User Replaceable Battery : Yes Physical Dimensions - (WxHxD) (cm) : 43.43 x 8.64 x 50.04 (cm) Physical Dimensions - (WxHxD) (in) : 17.1 x 3.4 x 19.7 (in) Physical Dimensions - (WxHxD) (mm) : 434 x 86 x 500 (mm) Weight (kg) : 30.71 Weight (lb) : 67.7 Shipping Dimensions - (WxHxD) (cm) : 55.88 x 26.67 x 61.21 (cm) Shipping - Dimensions (WxHxD, in) : 22 x 10.5 x 24.1 (in) Shipping - Dimensions (WxHxD, mm) : 558.8 x 266.7 x 612.14 (mm) Shipping - Weight (kg) : 37.19 Shipping - Weight (lb) : 82 Adjustable Voltage Range : 70 - 155 VAC Circuit Breaker : 15 A Cord Length : 10 ft (3.0 m) Input Frequency Range : 47 Hz - 63 Hz Input Plug Type : NEMA 5-15P Input Voltage : 100 - 125 VAC Input Voltage Range : 75 VAC - 149 VAC Nominal Input Voltage : 100 - 125 VAC Plug Style : Right Angle - 45° Offset Automatic Voltage Regulation : Double Boost On AC WaveForm : Sine Wave On Battery Frequency : 50/60 Hz ± 1% On Battery Voltage : 100/110/120/125 VAC ± 5% On Battery Waveform : Sine Wave Outlets - Battery & Surge Protected : 8 Outlets - Critical Load : 4 Outlets - Total : 8 Outlet Type COMPUTED : 8 - NEMA 5-15R Output Power Factor : 1 Overload Protection : Internal Circuitry Limiting Typical Transfer Time : 6ms; Max 11ms at normal sensitivity USB Charge Port : No VA : 1500 VA Watts : 1500 W EMI/RFI Filtration COMPUTED : Yes Surge Suppression (Joules) : 2430 J Audible Alarms : Battery Mode Emergency Power Off (EPO) Port : Yes HID Compliant USB Port : Yes LCD : Multifunction LCD LED Indicators : Power On Management Cable : USB Cable Serial Port : 1 Serial SNMP / HTTP Remote Monitoring : Yes - RMCARD205 pre-installed Software (Free Download) : PowerPanel Business Color : Black Form Factor : Rack / Tower Material of Construction : Metal Rack Height : 2U Audible noise at 1m from surface of unit : 55.5 dBA Online Thermal Dissipation : 96.7 BTU/hr Operating Elevation : 0 - 9843 ft (0 - 3000 m) Operating Relative Humidity : 0 - 95 % (non-condensing) Operating Temperature : 32 - 104 °F (0 - 40 °C) Storage Elevation : 0 - 49213 ft (0 - 14999 m) Storage Relative Humidity : 0 - 95% (non-condensing) Storage Temperature : 5 - 113 °F (-15 - 45 °C) Environmental : RoHS Compliant Safety : UL1778 CEG Amount : $400000 Connected Equipment Guarantee : Lifetime Extended Warranty Option : WEXT5YR-U4A Product Warranty : 3 Year Limited Warranty
  • Additional Warranty Information
    Connected Equipment Guarantee: Lifetime Connected Equipment Guarantee: $400,000
  • Alarm
    Battery Mode
  • Backup/Run Time (Full Load)
    6.50 Minute
  • Backup/Run Time (Half Load)
    17.90 Minute
  • Battery Capacity
    9000 mAh
  • Battery Characteristics
    Sealed
  • Battery Chemistry
    Lead Acid
  • Battery Size
    12V
  • Brand Name
    CyberPower
  • Certifications & Standards
    UL1778
  • Circuit Breaker
    Yes
  • Cord Length
    10 ft
  • Depth
    19.7"
  • Directly Connected Equipment Guarantee
    $400000 Lifetime
  • Display
    LCD
  • Energy Star
    Yes
  • Environmental Compliance
    Restriction of Hazardous Substances (RoHS)
  • Environmentally Friendly
    Yes
  • Form Factor
    Tower/Rack Convertible
  • Height
    3.4"
  • Hot Swappable
    Yes
  • Input Frequency
    63 Hz 47 Hz
  • Input Voltage
    120 V AC
  • Input Voltage Range
    75 V AC - 149 V AC 100 V AC - 125 V AC
  • Length
    24.1"
  • Limited Warranty
    3 Year
  • Load Capacity (VA)
    1500 VA
  • Load Capacity (Watt)
    1500 W
  • Manufacturer Part Number
    PR1500RTXL2UCN
  • Maximum Operating Temperature
    104°F (40°C)
  • Minimum Operating Temperature
    32°F (0°C)
  • Network Management
    SNMP/HTTP Remote Monitoring Relay-MS Card Network Card
  • Number of Batteries
    4
  • Output Frequency
    60 Hz 50 Hz
  • Output Voltage
    100 V AC 110 V AC 120 V AC 125 V AC
  • Overload Protection
    Yes
  • Plug/Connector Type
    NEMA 5-15P
  • Product Line
    Smart App Sinewave
  • Product Model
    PR1500RTXL2UCN
  • Product Name
    PR1500RTXL2UCN Smart App Sinewave UPS Systems
  • Product Type
    Line-interactive UPS
  • Rack Height
    2U
  • Receptacle Type
    NEMA 5-15R
  • Serial Port
    Yes
  • Status Indicators
    LED Indicators: Power On
  • Surge Energy Rating
    2430 J
  • Surge Suppression
    Yes
  • Thermal Dissipation
    28.34 W
  • USB
    Yes
  • Waveform Type
    Sine Wave
  • Width
    17.1"
