CyberPower PR3000RTXL2U New Smart App Sinewave UPS Systems

Product #: SYNX5564480
Sold Out

This product is sold out and we do not know when we will be getting another shipment. We apologize for any inconvenience this may cause.

Check similar items above to see if a replacement product is available.

Product Description

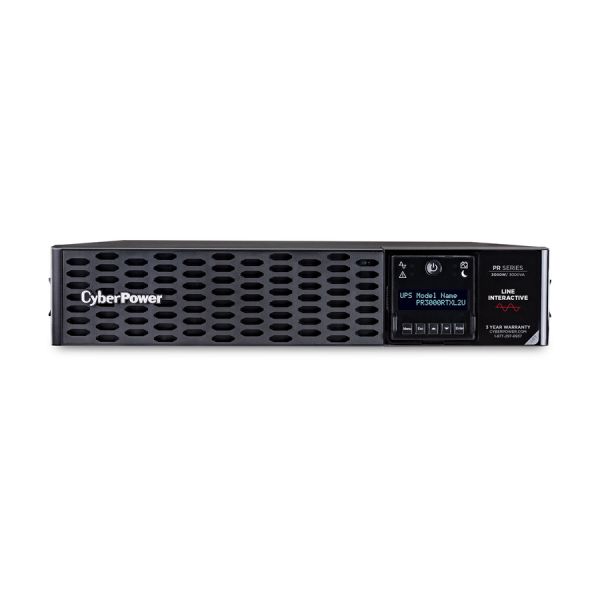

CyberPower PR3000RTXL2U New Smart App Sinewave UPS Systems
3000VA/3000W, 120 VAC, NEMA L5-30P, 2U, Rack / Tower, Sine Wave, 9 Outlets, LCD, PowerPanel Business, $400000 CEG, 3YR Warranty
The PR3000RTXL2U is a Smart App Sinewave rack/tower convertible UPS with line-interactive topology, surge protection, and battery backup. CyberPower's Smart App Sinewave series creates a sine wave output devoid of power gaps which could cause unexpected shutdowns of sensitive equipment.
The Smart App Sinewave PR3000RTXL2U improves battery life through battery equalization technology and Automatic Voltage Regulation (AVR), which corrects minor power fluctuations without switching to battery power. The enhanced chassis design with an easy-to-access toolless front panel, captive screws for battery panel access, and color-coded rear panel make battery changes and installations simple and fast. The PR3000RTXL2U also has an innovative LCD panel that rotates 90°, tilts for a better viewing angle, and provides information on 47 different settings including UPS stats, UPS setup and control management, and testing options.
This model accepts the BP48VP2U02 Extended Battery Module (EBM) for expanded runtime during power outages and the RMCARD205 network management card for remote management and control via a standard web browser or network management system.
With a $400,000 connected equipment guarantee and a three-year warranty, you can trust CyberPower's commitment to the quality of the PR3000RTXL2U.
More from the Manufacturer
  • Capacity: 3000 VA / 3000 W
  • Topology: Line Interactive
  • Waveform: Sine Wave
  • Output: 100-120 VAC ± 5%
  • Plug type & cord: NEMA L5-30P, 10 ft. cord
  • Outlet types: 8 × NEMA 5-20R; 1 x NEMA L5-30R
  • Communication: USB, Serial, SNMP, Relay, EPO
  • Management software: PowerPanel Business
  • Remote management: Yes, with optional RMCARD205
  • Warranty: 3 year
  • Experience higher efficiency with lower energy cost
  • Keep your sensitive devices powered with a backup of up to 1.70 minute at full load
CyberPower logo
Guides & Information
Related Articles
Need more information? Ask a Question

Product Specifications

  • AVR
    Yes
  • Additional Information
    Replacement Battery Cartridge Quantity: 1 Active PFC Compatible: Yes Adjustable Voltage Range: 70 - 155 VAC Circuit Breaker: 30A Input Frequency Range: 47 Hz - 63 Hz Plug Style: Straight (Twist Lock) Automatic Voltage Regulation: Double Boost On Battery Frequency: 50/60 Hz ± 1% Output Power Factor: 1 Overload Protection: Internal Circuitry Limiting Network Protection RJ45: 1 in / 1 out LCD: Multifunction LCD Management Cable: USB Cable SNMP / HTTP Remote Monitoring: Yes - with optional RMCARD205 Material of Construction: Metal Operating Relative Humidity: 0 - 95 % (non-condensing) Operating Temperature: 32 - 104 °F (0 - 40 °C)
  • Alarm
    Battery Mode Low Battery Overheat Overload Over Charge
  • Application/Usage
    Network Device Server Telecommunication VoIP Workstation
  • Battery Capacity
    9000 mAh
  • Battery Chemistry
    Lead Acid
  • Battery Size
    12V
  • Brand Name
    CyberPower
  • Certifications & Standards
    UL1778 VCCI FCC Class A
  • Country of Origin
    Philippines
  • DC System Voltage
    12 V DC
  • Dataline Protection
    RJ-45
  • Depth
    19.7"
  • Directly Connected Equipment Guarantee
    $400000 Lifetime
  • EMI/RFI Noise Filter
    Yes
  • EPO Port
    Yes
  • Energy Saving
    GreenPower UPS Bypass Technology
  • Environmentally Friendly
    Yes
  • Form Factor
    Rack/Tower
  • Height
    3.4"
  • Input Frequency
    63 Hz
  • Input Voltage
    120 V AC
  • Input Voltage Range
    75 V AC - 155 V AC
  • Limited Warranty
    3 Year
  • Load Capacity
    3000 VA
  • Manufacturer Part Number
    PR3000RTXL2U
  • Maximum Operating Elevation
    10000 ft
  • Maximum Operating Temperature
    104°F (40°C)
  • Maximum Storage Elevation
    50000 ft
  • Network (RJ-45)
    Yes
  • Network Management
    SNMP/HTTP Remote Monitoring
  • Number of Batteries
    4
  • Number of Battery & Surge Outlets
    9
  • Number of Critical Load Outlets
    4
  • Output Frequency
    60 Hz
  • Output Voltage
    100 V AC 110 V AC 120 V AC
  • Overload Protection
    Yes
  • Plug/Connector Type
    NEMA L5-30P
  • Product Color
    Black
  • Product Name
    Smart App Sinewave 3KVA Tower/Rack Convertible UPS
  • Product Series
    New Smart App Sinewave UPS
  • Product Type
    Line-interactive UPS
  • Rack Height
    2U
  • Receptacle Detail
    1 x NEMA L5-30R 8 x NEMA 5-20R
  • Receptacle Type
    NEMA 5-20R NEMA L5-30R
  • Replaceable Battery
    Yes
  • Serial Port
    Yes
  • Software Included
    PowerPanel Business
  • Sound Emission (A-Weighted)
    57.5 dB(A)
  • Status Indicators
    LCD Display LED Indicators: Power on Line mode Battery mode Fault Night mode Wiring Fault
  • Storage Relative Humidity
    0% - 95%
  • Storage Temperature
    5°F (-15°C) - 113°F (45°C)
  • Surge Energy Rating
    2430 J
  • Thermal Dissipation
    35.40 W
  • Transfer Time
    4 ms
  • Typical Battery Recharge Time
    3 Hour
  • USB (HID Compliant) Port
    Yes
  • Waveform Type
    Sine Wave
  • Width
    17.1"
