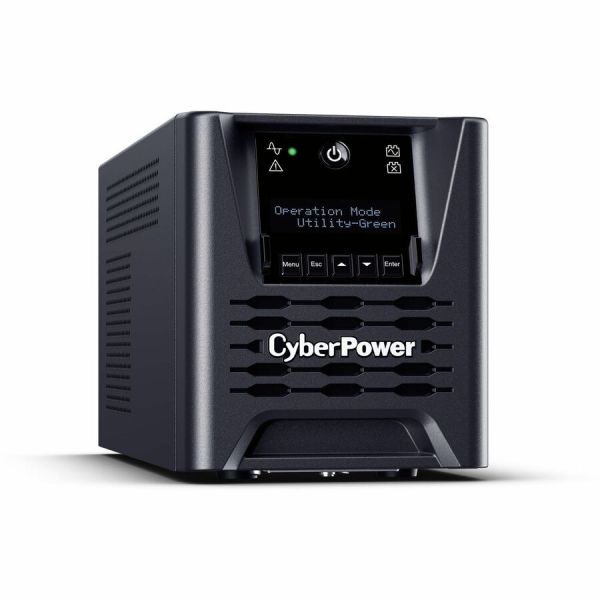

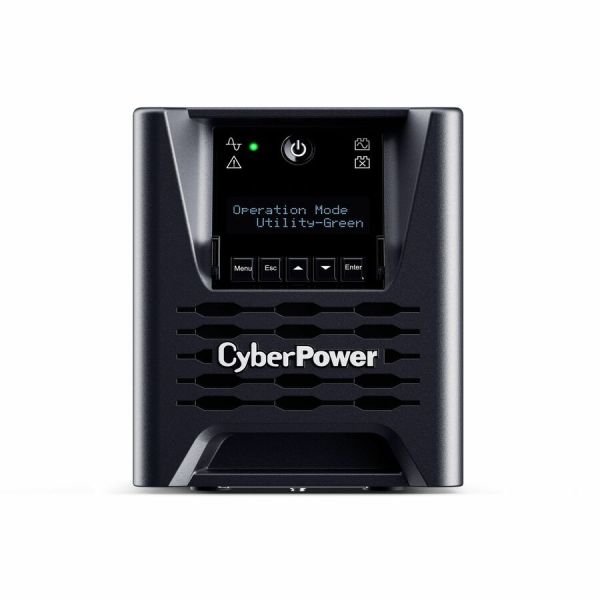

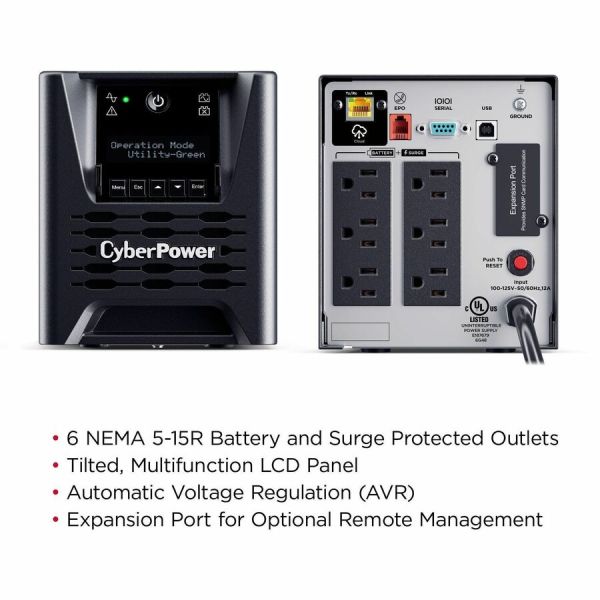

CyberPower PR750LCD3C Smart App Sinewave UPS Systems

Product #: ETLZ1076954772
Sold Out

This product is sold out and we do not know when we will be getting another shipment. We apologize for any inconvenience this may cause.

Check similar items above to see if a replacement product is available.

Product Description

CyberPower PR750LCD3C Smart App Sinewave UPS Systems
750VA/750W, 100 - 125 VAC, NEMA 5-15P, Tower, Sine Wave, 6 Outlets, LCD, PowerPanel Business, $375000 CEG, 3YR Warranty
A mini-tower UPS with line interactive topology, the CyberPower Smart App Sinewave PR750LCD3C provides battery backup, power protection (using sine wave output), and surge protection for corporate servers, department servers, storage appliances, network devices, and telecom installations requiring Active PFC power source compatibility. The PR750LCD3C uses Automatic Voltage Regulation (AVR) to correct minor power fluctuations without switching to battery power, which extends battery life. AVR is essential in areas where power fluctuations occur frequently. The PR750LCD3C comes with a three-year warranty (including coverage of batteries) and a $375,000 Connected Equipment Guarantee.
  • Capacity: 750 VA / 750 W
  • Topology: Line Interactive
  • Waveform: Sine Wave
  • Output: 120 VAC ± 5%
  • Runtime (half/full): 10.7 minutes / 3.3 minutes
  • Plug type & cord: NEMA 5-15P, 5 ft. cord

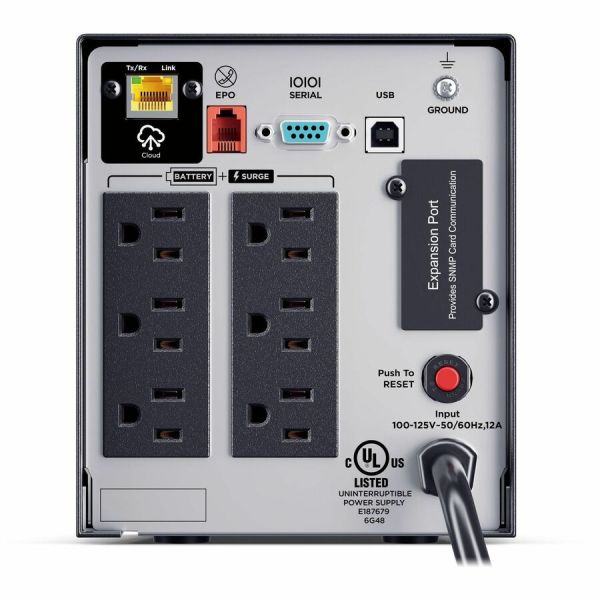

  • Outlets: 6 surge + battery backup
  • Outlet types: 6 × NEMA 5-15R
  • Communication: USB, Serial, SNMP, Relay, EPO, Cloud
  • Management software: PowerPanel Business Edition
  • Cisco compatible: Yes
  • Remote management: Yes
  • Environmental sensor: Yes, with optional RMCARD205
  • ENERGY STAR qualified: Yes
  • Warranty: 3 year
  • Connected Equipment Guarantee: $375,000
  • Experience higher efficiency with lower energy cost
  • 750 W load capacity - backup power for your valuable electronics
  • Keep your sensitive devices powered with a backup of up to 3.30 minute at full load
  • 750 VA load capacity - work without any interruption during power outages
  • Overload protection feature effectively prevents motor damage by monitoring the current in the motor circuit and breaking the circuit when an electrical overload is detected
  • 2 batteries for maximum feasibility and added productivity
  • 12V battery size for better reliance and dependable usability
  • 7000 mAh battery capacity allows longer, charged usage in a dependable manner with maximum feasibility
  • 8 Hour typical battery recharge time to allow optimal performance for longer hours with added efficiency
  • Replaceable battery for maximum feasibility and better usability
CyberPower logo
Guides & Information
Related Articles
Need more information? Ask a Question

Product Specifications

  • AVR
    Yes
  • Additional Information
    Active PFC Compatible : Yes Energy Saving : GreenPower UPS Bypass Technology Energy Star Certified : Yes UPS Topology : Line Interactive Battery Quantity : 2 Battery Size : 12 V / 7 Ah Battery Type : Sealed Lead-Acid Battery Hot Swappable : Yes Replacement Battery Cartridge : RB1270X2F Replacement Battery Cartridge Quantity : 1 Runtime at Full Load : 3.3 min Runtime at Half Load : 10.7 min Typical Recharge Time : 8 Hours User Replaceable Battery : Yes Physical Dimensions - (WxHxD) (cm) : 13.79 x 16.18 x 35.99 (cm) Physical Dimensions - (WxHxD) (in) : 5.43 x 6.37 x 14.17 (in) Physical Dimensions - (WxHxD) (mm) : 138 x 162 x 360 (mm) Weight (kg) : 11.8 Weight (lb) : 26.01 Shipping Dimensions - (WxHxD) (cm) : 26.42 x 28.45 x 48.26 (cm) Shipping - Dimensions (WxHxD, in) : 10.4 x 11.2 x 19 (in) Shipping - Dimensions (WxHxD, mm) : 264.16 x 284.48 x 482.6 (mm) Shipping - Weight (kg) : 12.97 Shipping - Weight (lb) : 28.6 Circuit Breaker : 15 A Cord Length : 5 ft (1.5 m) Input Frequency Range : 57 Hz - 63 Hz Input Plug Type : NEMA 5-15P Input Voltage Range : 74 VDC - 154 VAC Nominal Input Voltage : 100 - 125 VAC Plug Style : Straight Automatic Voltage Regulation : Double Boost On AC WaveForm : Sine Wave On Battery Frequency : 50/60 Hz ± 1% On Battery Voltage : 120 VAC ± 5% On Battery Waveform : Sine Wave Outlets - Battery & Surge Protected : 6 Outlets - Total : 6 Outlet Type COMPUTED : 6 - NEMA 5-15R Output Power Factor : 1 Overload Protection : Internal Circuitry Limiting Typical Transfer Time : 4 ms USB Charge Port : No VA : 750 VA Watts : 750 W EMI/RFI Filtration COMPUTED : Yes Surge Suppression (Joules) : 1350 J Audible Alarms : Battery Mode Emergency Power Off (EPO) Port : Yes HID Compliant USB Port : Yes LCD : Multifunction LCD LED Indicators : Power On Management Cable : USB Cable Removable LCD Control Panel Option : No Serial Port : 1 Serial SNMP / HTTP Remote Monitoring : Yes - with optional RMCARD205 Software (Free Download) : PowerPanel Business Color : Black Form Factor : Tower Material of Construction : Metal Operating Elevation : 0 - 10000 ft (0 - 3048 m) Operating Relative Humidity : 0 - 95 % (non-condensing) Operating Temperature : 32 - 104 °F (0 - 40 °C) Storage Temperature : 5 - 113 °F (-15 - 45 °C) Environmental : RoHS Compliant Safety : UL1778 CEG Amount : $375000 Connected Equipment Guarantee : Lifetime Extended Warranty Option : WEXT5YR-U2A Product Warranty : 3 Year Limited Warranty
  • Additional Warranty Information
    Three-year warranty (including coverage of batteries)
  • Alarm
    Battery Mode Fault Low Battery Overload Replace Battery
  • Application/Usage
    Corporate Network Device Server Storage Device Telecommunication VoIP
  • Battery Capacity
    7000 mAh
  • Battery Chemistry
    Lead Acid
  • Battery Size
    12V
  • Brand Name
    CyberPower
  • Certifications & Standards
    UL1778 cUL 107.3 FCC DOC Class B
  • Circuit Breaker
    Yes
  • Cord Length
    5 ft
  • Depth
    14.2"
  • Directly Connected Equipment Guarantee
    $375000 Lifetime
  • Display
    LCD
  • EMI/RFI Noise Filter
    Yes
  • EPO Port
    Yes
  • Energy Saving
    GreenPower UPS Bypass Technology
  • Environmental Compliance
    Restriction of Hazardous Substances (RoHS)
  • Features
    Audible Alarm
  • Form Factor
    Mini-tower
  • Height
    6.4"
  • Hot Swappable
    Yes
  • Input Frequency
    63 Hz 47 Hz
  • Input Voltage
    120 V AC
  • Input Voltage Range
    74 V AC - 154 V AC 100 V AC - 125 V AC
  • Limited Warranty
    3 Year
  • Load Capacity (VA)
    750 VA
  • Load Capacity (Watt)
    750 W
  • Manufacturer Part Number
    PR750LCD3C
  • Maximum Operating Elevation
    10000 ft
  • Maximum Operating Temperature
    104°F (40°C)
  • Minimum Operating Temperature
    32°F (0°C)
  • Network Management
    SNMP/HTTP Remote Monitoring Relay-MS Card
  • Number of Batteries
    2
  • Number of Battery & Surge Outlets
    6
  • Operating Humidity
    0% - 95%
  • Output Frequency
    60 Hz 50 Hz
  • Output Power Factor
    1
  • Output Voltage
    120 V AC
  • Overload Protection
    Yes
  • Plug/Connector Type
    NEMA 5-15P
  • Product Color
    Black
  • Product Line
    Smart App Sinewave
  • Product Model
    PR750LCD3C
  • Product Name
    PR750LCD3C Smart App Sinewave UPS Systems
  • Product Type
    Line-interactive UPS
  • Receptacle Detail
    6 x NEMA 5-15R
  • Receptacle Type
    NEMA 5-15R
  • Replaceable Battery
    Yes
  • Serial Port
    Yes
  • Status Indicators
    LED Indicators: Power On On-Line Battery Mode Fault
  • Storage Temperature
    5°F (-15°C) - 113°F (45°C)
  • Surge Energy Rating
    1350 J
  • Surge Suppression
    Yes
  • Transfer Time
    4 ms
  • Typical Battery Recharge Time
    8 Hour
  • USB
    Yes
  • USB (HID Compliant) Port
    Yes
  • Waveform Type
    Sine Wave
  • Width
    5.4"
