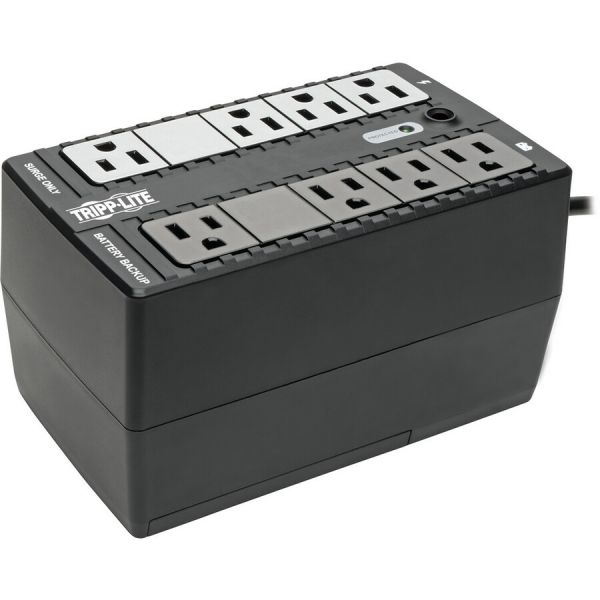

Eaton Tripp Lite Series 120V 500VA 260W Standby UPS, 8 Outlets (NEMA 5-15R), 5-15P Plug, 5 ft. (1.52 m) Cord, Desktop/Wall Mount
Product #:
SYNX5536546
Sold Out
This product is sold out and we do not know when we will be getting another shipment. We apologize for any inconvenience this may cause.
Check similar items above to see if a replacement product is available.
Product Description
Eaton Tripp Lite Series 120V 500VA 260W Standby UPS, 8 Outlets (NEMA 5-15R), 5-15P Plug, 5 ft. (1.52 m) Cord, Desktop/Wall Mount
Desktop/Wall Mountable - 6.50 Hour Recharge - 1.50 Minute Stand-by - 120 V AC Input - 110 V AC, 115 V AC, 120 V AC Output - 8 x NEMA 5-15R
Not for sale in California until further notice.
Compact Desktop 500VA/260W Battery Backup for PCs, Home Theater and Digital Signage
This 120V UPS system provides reliable battery backup and AC power protection against blackouts, brownouts, overvoltages, surges and line noise that can damage valuable electronics or destroy data. The eight-outlet 120V battery backup is ideal protection for your home office, media center or professional kiosk, security and small-business phone applications, including computers, routers, printers, HDTVs, Blu-ray players, game consoles, ATMs, security systems and digital signage equipment.
Allows Time to Back Up Critical Files During a Blackout
Backup support allows you to work through short power failures, and gives you enough time to safely save files and shut down your system in case of a prolonged blackout. Backup time varies according to load, but the BC500 should keep an energy-efficient desktop computer with small LCD monitor powered as long as 18 minutes. During normal operation, incoming utility power keeps the replaceable internal battery fully charged, so backup power will always be available.
Connects Your Equipment to 8 Protected NEMA 5-15R Outlets
Four 5-15R outlets provide both battery backup and surge protection to your computer, monitor and other crucial components. The other four are surge-protected only for printers, scanners and other non-essential equipment. A 316-joule surge suppression rating protects connected components from the harmful effects of power surges. Two outlets are spaced apart from the others to accommodate bulky transformers.
Combats Electromagnetic Interference That Can Harm Equipment
Various electromagnetic and radio sources found in virtually every home and business can cause disruptive interference on the AC line. Known as EMI (electromagnetic interference) and RFI (radio frequency interference), this line noise is a common cause of performance problems and can lead to incremental hardware damage, data corruption and audio/video transmission problems. The BC500 incorporates technology that filters out disruptive line noise so that it won't affect your equipment.
Diagnostic LED and Audible Alarm Keep You Informed
Front-panel green LED indicates line/battery mode status, overloads and low/replace battery alert. A home-friendly alarm stays silent in AC and battery modes, except to warn you of a low battery or fault condition.
High Line-Mode Efficiency Saves Energy and Cuts Costs
A high 98% line mode efficiency rating reduces BTU emissions, energy consumption and, ultimately, your energy costs.
Compact Housing for Convenient Installation Almost Anywhere
The space-saving housing fits easily on a desktop, shelf or anywhere else convenient to your workstation. Keyhole mounting tabs allows easy wall installation. The five-foot power cord with NEMA 5-15P plug connects to a standard AC outlet.
Compact Desktop 500VA/260W Battery Backup for PCs, Home Theater and Digital Signage
This 120V UPS system provides reliable battery backup and AC power protection against blackouts, brownouts, overvoltages, surges and line noise that can damage valuable electronics or destroy data. The eight-outlet 120V battery backup is ideal protection for your home office, media center or professional kiosk, security and small-business phone applications, including computers, routers, printers, HDTVs, Blu-ray players, game consoles, ATMs, security systems and digital signage equipment.
Allows Time to Back Up Critical Files During a Blackout
Backup support allows you to work through short power failures, and gives you enough time to safely save files and shut down your system in case of a prolonged blackout. Backup time varies according to load, but the BC500 should keep an energy-efficient desktop computer with small LCD monitor powered as long as 18 minutes. During normal operation, incoming utility power keeps the replaceable internal battery fully charged, so backup power will always be available.
Connects Your Equipment to 8 Protected NEMA 5-15R Outlets
Four 5-15R outlets provide both battery backup and surge protection to your computer, monitor and other crucial components. The other four are surge-protected only for printers, scanners and other non-essential equipment. A 316-joule surge suppression rating protects connected components from the harmful effects of power surges. Two outlets are spaced apart from the others to accommodate bulky transformers.
Combats Electromagnetic Interference That Can Harm Equipment
Various electromagnetic and radio sources found in virtually every home and business can cause disruptive interference on the AC line. Known as EMI (electromagnetic interference) and RFI (radio frequency interference), this line noise is a common cause of performance problems and can lead to incremental hardware damage, data corruption and audio/video transmission problems. The BC500 incorporates technology that filters out disruptive line noise so that it won't affect your equipment.
Diagnostic LED and Audible Alarm Keep You Informed
Front-panel green LED indicates line/battery mode status, overloads and low/replace battery alert. A home-friendly alarm stays silent in AC and battery modes, except to warn you of a low battery or fault condition.
High Line-Mode Efficiency Saves Energy and Cuts Costs
A high 98% line mode efficiency rating reduces BTU emissions, energy consumption and, ultimately, your energy costs.
Compact Housing for Convenient Installation Almost Anywhere
The space-saving housing fits easily on a desktop, shelf or anywhere else convenient to your workstation. Keyhole mounting tabs allows easy wall installation. The five-foot power cord with NEMA 5-15P plug connects to a standard AC outlet.
- Not for sale in California until further notice.
- Protects equipment against blackouts, brownouts, overvoltages, surges and line noise
- Battery backup allows time to save files and safely shut down during blackouts
- 8 NEMA 5-15R outlets provide power to PC, home theater or networking equipment
- High >98% efficiency reduces BTU emissions, saves power and lowers energy costs
- Front-panel LED indicates line/battery mode and low-battery statuses at a glance
- Protects computers and other electronic devices from harm caused by short power outages
- Keep your sensitive devices powered with a backup of up to 1.50 minute at full load
- 260 W load capacity - backup power for your valuable electronics
- 500 VA load capacity - work without any interruption during power outages
- 6.50 Hour typical battery recharge time for better convenience and prolonged, productive usage
- Replaceable battery for optimal performance with maximum charged dependability
- NEMA 5-15P plug/connector type for maximum usability with added reliability
- NEMA 5-15R receptacle type offers ease of operation with maximum efficiency
- Single Phase phase for better reliability and ensure maximum productivity
- Standby UPS with computer application/usage to ensure maximum productivity with added feasibility
Product Specifications
-
AlarmFault Low Battery Overload Replace Battery
-
Application/UsageATM Blu-ray Player Computer Digital Signage DVR Gaming Console Home Home Theater Kiosk Media Center Network Equipment Office Printer Router Security System Telephone System TV
-
Brand NameTripp Lite series
-
Country of OriginVietnam
-
DC System Voltage12 V DC
-
Depth7.3"
-
EMI/RFI Noise FilterYes
-
Energy SavingGreen Energy-Saving
-
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
-
Environmentally FriendlyYes
-
Form FactorDesktop/Wall Mountable
-
Height4.1"
-
Input Frequency60 Hz
-
Input Voltage120 V AC
-
Limited Warranty3 Year
-
Load Capacity (VA)500 VA
-
Load Capacity (Watt)260 W
-
Manufacturer Part NumberBC500
-
Maximum Operating Elevation9842.52 ft
-
Maximum Operating Temperature104°F (40°C)
-
Number of Battery & Surge Outlets4
-
Number of Surge-only Outlets4
-
Output Frequency60 Hz
-
Output Voltage110 V AC 115 V AC 120 V AC
-
Package ContentsBC500 500VA Desktop/Wall Mountable UPS Owner's Manual
-
PhaseSingle Phase
-
Plug/Connector TypeNEMA 5-15P
-
Product ModelBC500
-
Product NameBC500 500VA Desktop/Wall Mountable UPS
-
Product TypeStandby UPS
-
Receptacle Detail8 x NEMA 5-15R
-
Receptacle TypeNEMA 5-15R
-
Replaceable BatteryYes
-
Status IndicatorsLED Indicators: Off / on power status Battery mode operation
-
Storage Relative Humidity0% - 90%
-
Storage Temperature5°F (-15°C) - 113°F (45°C)
-
Surge Energy Rating316 J
-
Thermal Dissipation3.83 W
-
Transfer Time10 ms
-
Typical Battery Recharge Time6.50 Hour
-
Waveform TypePulse-width Modulated Sine Wave
-
Width4.3"
