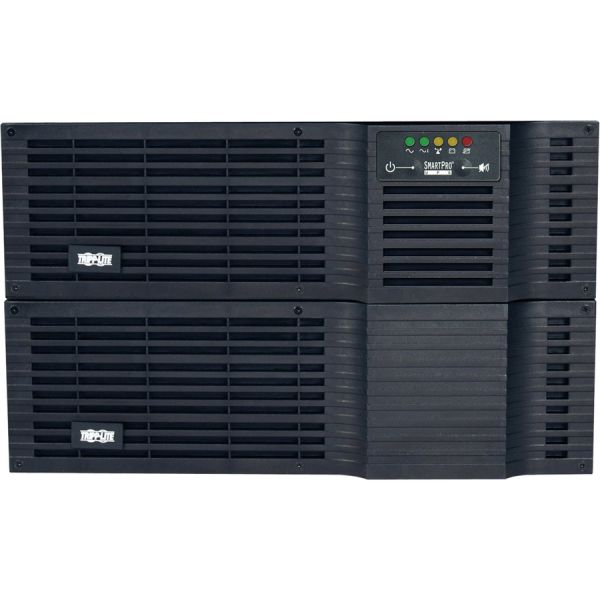

Eaton Tripp Lite Series SmartPro 208/120V 5kVA 4kW Line-Interactive Sine Wave UPS, 6U, Extended Run, Network Card Option, USB, DB9, EPO, TAA

Product #: SYNX979227
Sold Out

This product is sold out and we do not know when we will be getting another shipment. We apologize for any inconvenience this may cause.

Check similar items above to see if a replacement product is available.

Product Description

Eaton Tripp Lite Series SmartPro 208/120V 5kVA 4kW Line-Interactive Sine Wave UPS, 6U, Extended Run, Network Card Option, USB, DB9, EPO, TAA
5000VA/4000W - 16 Minute Full Load - 10 x NEMA 5-15R, 2 x NEMA 5-20R, 1 x NEMA L6-30R, 1 x NEMA L14-30R
Tripp Lite's line-interactive SMART5000RT3U UPS System protects server, networking or telecommunications equipment from blackouts, voltage fluctuations and surges in a compact tower/rackmount housing. Large capacity 5000VA/4000W power module converts raw 208V AC input to fully regulated dual output 208/120 voltage for simultaneous protection of both high- and low-voltage equipment loads. True sine wave output at all times offers guaranteed compatibility with all equipment types. Includes 14 outlets, 8 of which can be individually reset via software interface to selectively reboot remote equipment or shed less critical loads to extend battery runtime for more critical equipment. Includes slot for internal SNMP/web card, plus two DB9 and two USB enhanced monitoring ports for unattended shutdown, remote control and monitoring of UPS system and power data. 2 Year Warranty standard. 3 Year Warranty with product registration.
More from the Manufacturer
  • 5kVA / 5000VA / 4000W line interactive 6U rack/tower UPS; Sine wave output
  • 208 & 120V output during brownouts to 151V and overvoltages to 260V
  • USB, Serial, EPO & optional SNMP/Web card monitoring options
  • Expandable runtime; 8 single-outlet switched output load banks
  • NEMA L6-30P input; 10 5-15R, 2 5-15/20R, 1 L6-30R & 1 L14-30R outlets
  • Works adequately in situations where the supply is prone to sags and surges
  • Keep your sensitive devices powered with a backup of up to 16 minute at full load
  • 4000 W load capacity - backup power for your valuable electronics
  • 5000 VA load capacity - work without any interruption during power outages
  • 4 Hour typical battery recharge time to allow uninterrupted usage without requiring power outlet
  • Lead Acid battery chemistry to better suit your requirements with maximum productivity
  • NEMA L6-30P plug/connector type for convenient usage with added dependability
  • NEMA 5-20R receptacle type provides secure, reliable connection with added productivity
  • 220 V AC input voltage for better reliance and maximum dependability
  • 208 V AC output voltage for maximum dependability and added productivity
Guides & Information
Related Articles
Need more information? Ask a Question

Product Specifications

  • Additional Information
    Large 5000VA / 4000 watt output capacity with full time sine wave output offers guaranteed compatibility with all equipment types High power density 5kVA power module and battery pack occupy only 3 rack spaces (3U) each (UPS and battery pack use 6U when installed) 38 minutes half load runtime, expandable runtime with multiple external battery packs (part# BP48V60RT3U) Line interactive voltage regulation corrects severe brownouts and overvoltages without using battery power Dual voltage output is simultaneously compatible with both 208 and 120V equipment 14 total outlets (120V: 10 5-15R, 2 5-20R / 208v: 1 L6-30R, 1 L14-30R) Diagnostic LEDs provide visual indication of 17 separate performance conditions Included PowerAlert Software provides e-mail or pager notification of power problems and the simultaneous automatic unattended shutdown of multiple servers 4 built-in communications ports (2-DB9, 2-USB) for remote monitoring and unattended shutdown Slot for SNMP/web card SNMPWEBCARD and environmental sensor ENVIROSENSE for remote communications in large IP environments 8 customized load management receptacles can be individually powered off and back on again via software interface to reboot remote equipment or automatic "load shedding" of less critical loads to extend battery runtime for the most critical equipment Emergency Power Off (EPO) interface for emergency shutoff in large facilities Hot-swappable / user replaceable batteries allow on-site battery replacement through the front panel without powering off connected equipment or removing the UPS from the rack UPS battery set ships fully assembled and ready for connection to the power module, no time consuming, connection of individual internal batteries by user is necessary 2 year manufacturers product warranty $250,000 Ultimate Lifetime Insurance (USA & Canada Only). No warranty cards required for coverage!
  • Alarm
    Low Battery On Battery Overload
  • Battery Chemistry
    Lead Acid
  • Battery Life
    6 Year
  • Brand Name
    Tripp Lite series
  • Certifications & Standards
    UL1778 (USA), cUL (Canada), FCC Class A (emissions), NOM (Mexico), Conforms to IEEE 587 / ANSI C62.41 specifications
  • Cord Length
    10 ft
  • Country of Origin
    China
  • Depth
    16.8"
  • Emergency Power OFF
    Yes
  • Height
    3.5"
  • Hot Swappable
    Yes
  • Input Voltage
    220 V AC
  • Limited Warranty
    3 Year
  • Load Capacity (VA)
    5000 VA
  • Load Capacity (Watt)
    4000 W
  • Manufacturer Part Number
    SMART5000RT3U
  • Maximum Operating Temperature
    104°F (40°C)
  • Network Management
    SNMP Manageable
  • Output Voltage
    208 V AC
  • Package Contents
    SMART5000RT3U UPS SMART5000RT3U UPS System BP48V60RT3U battery pack PowerAlert Software and cabling Mounting hardware Instruction manual with warranty information
  • Plug/Connector Type
    NEMA L6-30P
  • Product Line
    SmartPro
  • Product Model
    SMART5000RT3U
  • Product Name
    SMART5000RT3U 5000 VA Rack/Tower Line Interactive UPS
  • Product Type
    Line-interactive UPS
  • Rack Height
    6U
  • Receptacle Detail
    1 x NEMA L14-30R 1 x NEMA L6-30R 10 x NEMA 5-15R 2 x NEMA 5-20R
  • Receptacle Type
    NEMA 5-15R NEMA 5-20R NEMA L14-30R NEMA L6-30R
  • Status Indicators
    5 front panel LEDs - Green 5 front panel LEDs - Green POWER LED, Green VOLTAGE CORRECTION LED, 3 color BATTERY CHARGE LED, 3 color OUTPUT LOAD LED, red BATTERY WARNING LED
  • Transfer Time
    4 ms
  • Typical Battery Recharge Time
    4 Hour
  • USB
    Yes
  • Waveform Type
    Sine Wave
  • Width
    17.3"
