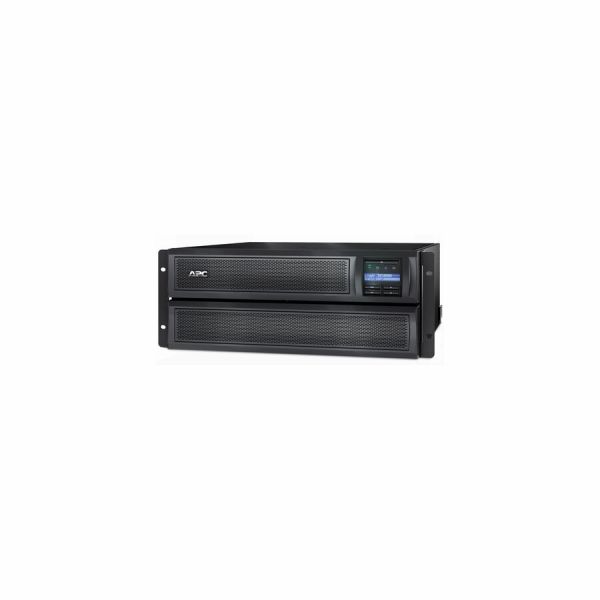

APC Smart-UPS X, Line Interactive, 3kVA, Rack/tower convertible 4U, 100V-127V, 6x 5-15R+3x 5-20R+1x L5-30R NEMA, NMC, Extended runtime,Short depth [TAA]

Product #: SYNX5316476
$3,510.88
Ships Free - This items ships free with your order
Delivered by Tue 12/23 Tue 12/23 - This is an estimated delivery timeline
Non-returnable - This is a non-returnable item

Product Description

APC Smart-UPS X, Line Interactive, 3kVA, Rack/tower convertible 4U, 100V-127V, 6x 5-15R+3x 5-20R+1x L5-30R NEMA, NMC, Extended runtime,Short depth [TAA]
4U Rack-mountable - 3 Hour Recharge - 6.30 Minute Stand-by - 120 V AC Input - 120 V AC Output - Single Phase - Sine Wave - 1 x NEMA L5-30R, 3 x NEMA 5-20R, 6 x NEMA 5-15R Receptacle(s) - 10 x Battery/Surge Outlet - TAA Compliant
This APC Smart-UPS is designed for IT managers or network administrators to maintain business uptime, data transfer and continuity during prolonged power outages. The 2880VA line interactive 4U rack/tower UPS provides pure sine wave power to support critical electronics during power disruptions. The SMX comes with NEMA L5-30P input, 6x NEMA 5-15R, 3x NEMA 5-20R and 1x NEMA L5-30R outlets. The UPS has a preinstalled Network Management Card for UPS network-based monitoring and management. The Smart-UPS comes with PowerChute Network Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. Use the intuitive LCD interface and PowerChute software to configure settings and monitor usage. This uninterrupted power supply can connect to EcoStruxure IT or third-party centralized management platforms. The SMX3000LVNCUS converts from a tower or stand-alone UPS to a rack mount UPS, offering flexibility in various installations. The SMX UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. This is compatible with dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performance to the original specifications. The Smart-UPS comes with a pair of tower-mounting stabilizing feet and rack-mounting brackets. It comes with APC temperature sensor AP9335T for monitoring temperature. The 3 switchable outlet groups allow more granular management of the power supplied to your devices. The Emergency Power Off feature enables the UPS to remotely shutdown during emergencies. The UPS is TAA Complaint.
More from the Manufacturer
  • 2880VA/2700W line interactive pure sine wave 4U rack/tower UPS (rail kit AP9625 sold separately)
  • User-selectable low voltage setting of 100V-127V
  • Add up to 10 external battery packs (SMX120BP)
  • Short depth UPS provides extra space for cable management
  • 1-Year Secure Network Management Card subscription included
  • Graceful shutdown of physical servers, virtual machines and HCI clusters
  • Automatic Voltage Regulation keeps output voltage within acceptable user selectable levels
  • Ideal for servers, storage, networking & commercial applications
  • Preinstalled NMC for network-based UPS monitoring & management
  • Experience higher efficiency with lower energy cost
  • Up to 6.30 minute runtime on full load to preserve critical data from power shortage interruptions
  • Prevent critical data loss by staying powered during a blackout with up to 2700 W load capacity
  • 2880 VA load capacity - work without any interruption during power outages
  • 3 Hour typical battery recharge time to allow uninterrupted usage without requiring power outlet
  • Lead Acid battery chemistry to better suit your requirements with maximum productivity
  • NEMA L5-30P plug/connector type for maximum usability with added reliability
  • NEMA L5-30P receptacle type offers maximum safety, convenience, and increased usability
  • Single Phase phase for your convenience and optimal usage
  • Line-interactive UPS with server application/usage to ensure maximum dependability and optimal performance
Guides & Information
Related Articles
Need more information? Ask a Question

Product Specifications

  • Additional Warranty Information
    Battery: 24 month(s)|UPS: 36 month(s)
  • Application/Usage
    Network Device Network Hub POS Terminal Router Security System Server Storage Device Switch
  • Battery Chemistry
    Lead Acid
  • Brand Name
    APC by Schneider Electric
  • Certifications & Standards
    BSMI|CSA|NOM|TAA compliance|TÜV|VCCI Class A
  • Cord Length
    8 ft
  • Country of Origin
    Mexico
  • Depth
    19"
  • Directly Connected Equipment Guarantee
    $150000 Lifetime
  • EU RoHS Declaration URL
    https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=490326965&lang=en-us
  • End of Life Manual Availability
    https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1612029_EN
  • Environmental Compliance
    Restriction of Hazardous Substances (RoHS)
  • Environmental Profile Availability
    https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1612029_EN
  • Environmentally Friendly
    Yes
  • For Country/Region
    United States
  • Form Factor
    Rack-mountable
  • Height
    17"
  • Input Current
    15 A
  • Input Voltage
    120 V AC
  • Input Voltage Range
    70 V AC - 153 V AC
  • Limited Warranty
    3 Year
  • Load Capacity (VA)
    2880 VA
  • Load Capacity (Watt)
    2700 W
  • Manufacturer Part Number
    SMX3000LVNCUS
  • Mounting Location
    Front
  • Mounting Preference
    Lower
  • Number of Battery & Surge Outlets
    10
  • Optimized Energy Efficiency
    Yes
  • Output Voltage
    120 V AC
  • Package Contents
    Smart-UPS SMX3000LVNCUS 2.88kVA Tower/Rack Convertible UPS CD with software Documentation CD Installation guide Rack mounting brackets Rack mounting hardware Rack mounting support rails Removable support feet Smart UPS signalling RS-232 cable USB cable Web/SNMP management card
  • Phase
    Single Phase
  • Plug/Connector Type
    NEMA L5-30P
  • Product Color
    Black
  • Product Line
    Smart-UPS
  • Product Model
    SMX3000LVNCUS
  • Product Name
    Smart-UPS SMX3000LVNCUS 2.88kVA Tower/Rack Convertible UPS
  • Product Take Back Program
    Yes
  • Product Type
    Line-interactive UPS
  • REACH Declaration URL
    https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=490326965&lang=en-us
  • REACH free of SVHC
    No
  • Rack Height
    4U
  • Receptacle Detail
    1 x NEMA L5-30R 3 x NEMA 5-20R 6 x NEMA 5-15R
  • Receptacle Type
    NEMA L5-30P
  • RoHS Exemption Information
    https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=SMX3000LVNCUS_ROHS_DECLARATION&p_FileName=SMX3000LVNCUSKIT_ROHS_DECLARATION_US.pdf
  • Surge Energy Rating
    540 J
  • Typical Battery Recharge Time
    3 Hour
  • WEEE Statement
    The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
  • Waveform Type
    Sine Wave
  • Width
    7"
