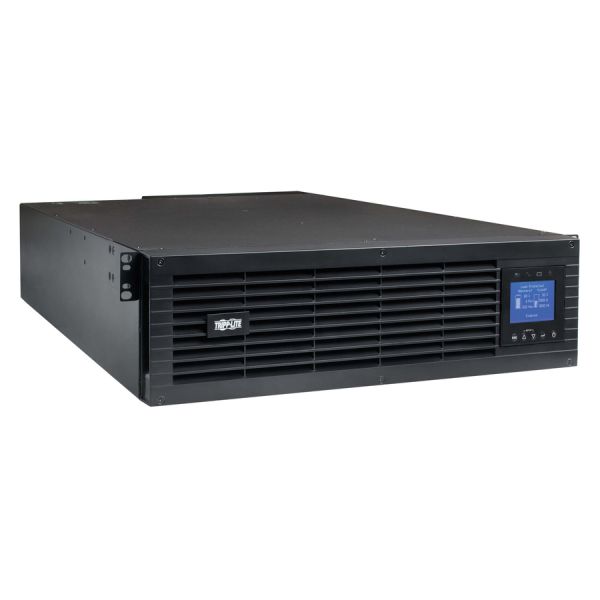

Tripp Lite by Eaton UPS 208/240V 5000VA 5000W On-Line Double-Conversion UPS Unity Power Factor Hardwire/L6-30P Input 3U

Product #: SYNX6071036
Sold Out

This product is sold out and we do not know when we will be getting another shipment. We apologize for any inconvenience this may cause.

Check similar items above to see if a replacement product is available.

Product Description

Tripp Lite by Eaton UPS 208/240V 5000VA 5000W On-Line Double-Conversion UPS Unity Power Factor Hardwire/L6-30P Input 3U
3U Rack/Tower - 3 Hour Recharge - 5 Minute Stand-by - 230 V AC Input - 200 V AC, 208 V AC, 220 V AC, 230 V AC, 240 V AC Output - 2 x NEMA L6-30R, 2 x NEMA L6-20R, Hardwired - TAA Compliant
Protects Mission-Critical Rack-Mounted Equipment against Damage, Downtime and Data Loss
Tripp Lite's SU5KRT3UHV Unity Power Factor UPS system protects connected equipment against damage, downtime and data loss due to power outages, voltage fluctuations and transient surges. Unity Power Factor design enables full 5000VA / 5000W output capacity when used with hardwire 208/240V input power (output de-rates to 4800W at 208V with included L6-30P cord option). In double-conversion mode, this UPS system maintains perfect output by continuously converting AC input to DC, then reconverting UPS output to fully regulated sine wave AC with ±1% voltage regulation and zero transfer time between online and battery modes. Featuring true on-line, double-conversion operation, Tripp Lite's SmartOnline SU5KRT3UHV provides the highest level of UPS power protection for critical server, network and telecom equipment.
Reliable, Expandable Battery Backup
UPS battery backup keeps connected equipment operational through short power failures, and provides time to save data and perform an orderly system shutdown in case of a prolonged blackout. The internal battery set provides 14 minutes of support at half load and 5 minutes at full load. During normal operation, incoming utility power keeps the battery fully charged so backup power will be available when needed. Advanced temperature-controlled battery charge management system provides efficient recharge and enhanced battery lifespan. For mission-critical applications demanding continuous uptime, the 5kVA UPS can provide expandable runtime with optional BP192V12RT3US external battery pack (sold separately). Battery-independent restart ensures automatic UPS power-up after lengthy power outages, even with expired batteries.
Economy Mode Helps the Environment and Your Cash Flow
Operates with >98% full-load efficiency in optional economy mode significantly reducing BTU heat output and operating energy costs.
Intuitive Front-Panel Interface offers Convenient Monitoring
Front-panel LEDs indicate line power, AC output, On-battery mode, and Fault conditions. The LCD readout with scroll controls supports visual monitoring of a variety of control options to support advanced UPS settings and configurations. The panel rotates for comfortable viewing in rack-mount or tower configuration.
Pre-installed WEBCARDLXMINI Network Interface Offers 24/7 Access
Pre-installed Java-free HTML5-based WEBCARDLXMINI interface enables full remote access for site power and UPS status monitoring, configuration, control and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Automated alerts help prevent accidental overloads, power loss and downtime. Advanced Communications Ports USB and DB9 ports with included cabling enable data-saving unattended shutdown of connected systems when used with Tripp Lite's free downloadable PowerAlert software. Capabilities include detailed monitoring of load levels, self-test data and utility power conditions. DB9 ports also support basic contact-closure monitoring to report On-battery and Low-battery status for legacy systems.
Versatile Installation Options
Hardware is included for mounting the complete 5kVA UPS system with internal batteries in 3U of space in an EIA-standard 19-inch 4-post rack. Use the optional 2POSTRMKITHD for 2-post rack mounting or the optional 2-9USTAND for mounting in an upright tower position.
  • Unity (1.0) power factor equalizes VA and wattage to safely support more equipment
  • Zero transfer time between on-line and battery modes for uninterrupted operation
  • Optional external battery packs provide additional runtime for applications requiring it
  • Pre-installed WEBCARDLXMINI network interface supports Auto Probe feature
  • ENERGY STAR-certified to save electricity, lower costs and protect the environment
  • 2-year limited warranty
  • $250,000 Ultimate Lifetime Insurance
  • Offers power supply with zero transfer time taken to the battery and proves ideal for voltage sensitive equipments
  • Keep your sensitive devices powered with a backup of up to 5 minute at full load
  • Prevent critical data loss by staying powered during a blackout with up to 5000 W load capacity
  • 5000 VA load capacity - work without any interruption during power outages
  • Overload protection feature protects a motor by sensing the current going to the motor to prevent malfunction
  • 3 Hour typical battery recharge time to allow uninterrupted usage without requiring power outlet
  • Replaceable battery for reliable output for prolonged usage with maximum efficiency
  • Lead Acid battery chemistry to better suit your requirements with maximum productivity
  • Hardwired plug/connector type for maximum usability with added reliability
  • NEMA L6-30R receptacle type offers ease of operation with maximum efficiency
Tripp Lite by Eaton logo
Guides & Information
Related Articles
Need more information? Ask a Question

Product Specifications

  • Alarm
    UPS Power Condition
  • Application/Usage
    Computer Room Data Center Mission Critical Equipment Network Equipment Server Telecommunication
  • Battery Chemistry
    Lead Acid
  • Brand Name
    Tripp Lite by Eaton
  • Country of Origin
    Taiwan
  • DC System Voltage
    192 V DC
  • Depth
    30"
  • EMI/RFI Noise Filter
    Yes
  • EPO Port
    Yes
  • Environmentally Friendly
    Yes
  • Form Factor
    Rack/Tower
  • Height
    5.2"
  • Hot Swappable
    Yes
  • Input Frequency
    60 Hz
  • Input Voltage
    230 V AC
  • Limited Warranty
    2 Year
  • Load Capacity (VA)
    5000 VA
  • Load Capacity (Watt)
    5000 W
  • Manufacturer Part Number
    SU5KRT3UHV
  • Maximum Operating Elevation
    6562 ft
  • Maximum Operating Temperature
    104°F (40°C)
  • Network Management
    SNMP/Telnet/SSH
  • Output Frequency
    60 Hz
  • Output Voltage
    200 V AC 208 V AC 220 V AC 230 V AC 240 V AC
  • Overload Protection
    Yes
  • Package Contents
    SmartOnline SU5KRT3UHV 5kVA Rack/Tower UPS Pre-installed WEBCARDLXMINI Network Management Card 2 x Hardwire Strain Reliefs USB Cable RS-232 Cable Rack-mounting Hardware Owner's Manual NEMA L6-30P Power Cable
  • Phase
    Single Phase
  • Plug/Connector Type
    Hardwired NEMA L6-30P
  • Product Line
    SmartOnline
  • Product Model
    SU5KRT3UHV
  • Product Name
    SmartOnline SU5KRT3UHV 5kVA Rack/Tower UPS
  • Product Type
    Double Conversion Online UPS
  • Rack Height
    3U
  • Receptacle Detail
    2 x NEMA L6-20R 2 x NEMA L6-30R
  • Receptacle Type
    Hardwired NEMA L6-20R NEMA L6-30R
  • Replaceable Battery
    Yes
  • Serial Port
    Yes
  • Software Included
    PowerAlert
  • Sound Emission
    67 dB
  • Status Indicators
    Front Panel LCD Display: Selectable LCD display With Escape Page Up Page Down Enter and Power buttons enable UPS control Detailed monitoring options; LED/LCD panel rotates for viewing in rack/tower formats (see manual) 4 front-panel LEDs: AC input AC output Battery mode Fault conditions
  • Storage Temperature
    5°F (-15°C) - 122°F (50°C)
  • Surge Energy Rating
    1680 J
  • Thermal Dissipation
    307.72 W
  • Transfer Time
    0 ns
  • Typical Battery Recharge Time
    3 Hour
  • USB (HID Compliant) Port
    Yes
  • Waveform Type
    Pure Sine Wave
  • Width
    17.5"
