Tripp Lite by Eaton UPS SmartOnline 208/240V 5kVA 4.5kW Double-Conversion UPS 4U Rack/Tower Extended Run Network Card Options USB DB9 Serial

Product #: SYNX2679844
Sold Out

This product is sold out and we do not know when we will be getting another shipment. We apologize for any inconvenience this may cause.

Check similar items above to see if a replacement product is available.

Product Description

Tripp Lite by Eaton UPS SmartOnline 208/240V 5kVA 4.5kW Double-Conversion UPS 4U Rack/Tower Extended Run Network Card Options USB DB9 Serial
4U Rack/Tower - 6 Hour Recharge - 3.50 Minute Stand-by - 220 V AC Input - 200 V AC, 208 V AC, 220 V AC, 230 V AC, 240 V AC Output - 2 x NEMA L6-20R, 2 x NEMA L6-30R - Serial Port - USB

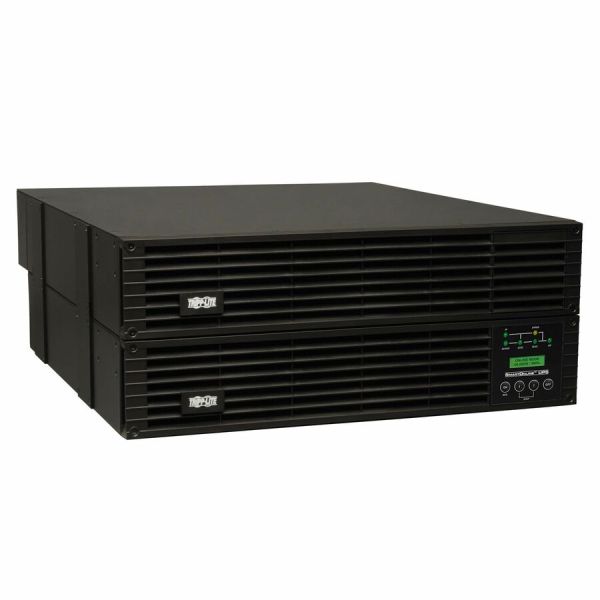

Tripp Lite SU5000RT4UHV 5000VA / 5kVA / 4500 watt on-line, double-conversion UPS system offers complete power protection for critical server, network and telecommunications equipment in a single 4U rack/tower compatible housing. Single all-in-one rack / tower housing installs in only 4 rack spaces (4U) with a maximum installed depth of only 20.7 in. / 52.6 cm. Maintains full-time sine wave output within 2% of selectable 200/208/220/230/240V nominal during brownouts as low 100V and overvoltages as high as 300V. Double-conversion operation converts raw input from AC to DC, then resynthesizes output power back to perfect sine wave AC. HID-compliant USB interface enables integration with built-in power management and auto shutdown features of Windows and Mac OS X. Front panel LEDs and LCD readout with scroll controls support front-panel visual monitoring. L6-30P input, plus two L6-30R and two L6-20R outlets.
  • 5kVA / 5000VA / 4500W on-line double-conversion UPS; 0.9 power factor
  • 200/208/220/230/240V 50/60Hz output; high efficiency economy mode option
  • 4U Rack/Tower compatible; Hot-swappable batteries
  • USB, RS232 & EPO ports; support for SNMP/WEB and contact-closure card options
Guides & Information
Related Articles
Need more information? Ask a Question

Product Specifications

  • Brand Name
    Tripp Lite by Eaton
  • Bypass Switch
    Automatic
  • Country of Origin
    China
  • Depth
    21"
  • Emergency Power OFF
    Yes
  • Environmentally Friendly
    Yes
  • Form Factor
    Rack/Tower
  • Height
    6.9"
  • Input Current
    24 A
  • Input Voltage
    220 V AC
  • Limited Warranty
    2 Year
  • Load Capacity
    5000 VA
  • Manufacturer Part Number
    SU5000RT4UHV
  • Network Management
    SNMP Manageable
  • Output Frequency
    50 Hz
  • Output Voltage
    200 V AC 208 V AC 220 V AC 230 V AC 240 V AC
  • Package Contents
    SmartOnline E SU5000RT4UHV 5kVA Tower/Rack-Mountable UPS PowerAlert Software CD-ROM USB Cable Serial Cable EPO Cable 4 Post 19" Rackmount Kit
  • Plug/Connector Type
    NEMA L6-30P
  • Product Line
    SmartOnline
  • Product Model
    SU5000RT4UHV
  • Product Name
    SmartOnline E SU5000RT4UHV 5kVA Tower/Rack-Mountable UPS
  • Product Series
    E
  • Product Type
    Double Conversion Online UPS
  • Rack Height
    4U
  • Receptacle Detail
    2 x NEMA L6-20R 2 x NEMA L6-30R
  • Receptacle Type
    NEMA L6-20R NEMA L6-30R
  • Serial Port
    Yes
  • Software Included
    PowerAlert Software
  • Typical Battery Recharge Time
    6 Hour
  • USB
    Yes
  • Width
    17.5"
