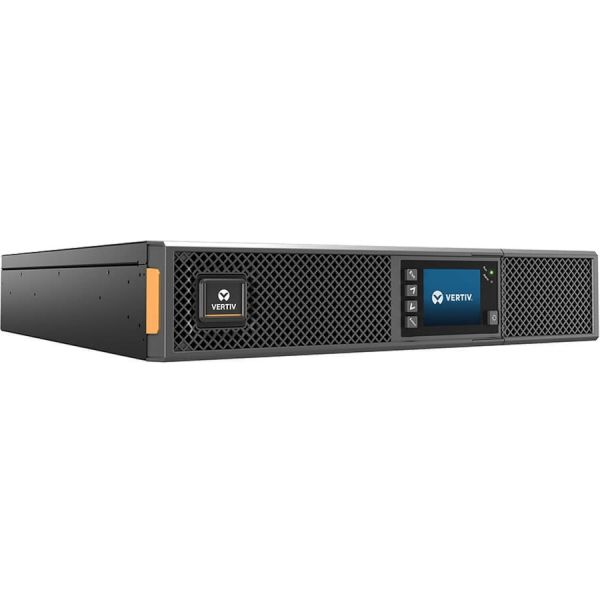

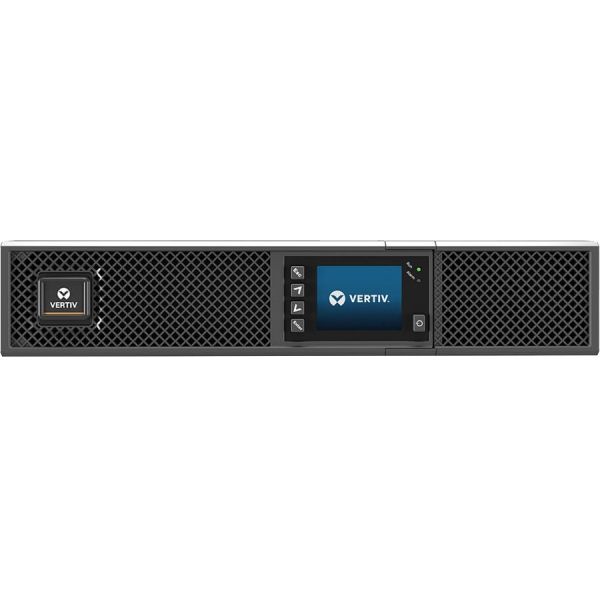

Vertiv Liebert GXT5 UPS - 3kVA/2700W 208V | Online Rack Tower Energy Star L6-20P
Product Number:
SYNX5631574
Sold Out
This product is sold out and we do not know when we will be getting another shipment. We apologize for any inconvenience this may cause.
Check similar items above to see if a replacement product is available.
Product Description
Vertiv Liebert GXT5 UPS - 3kVA/2700W 208V | Online Rack Tower Energy Star L6-20P
Double Conversion | 2U | Optional RDU101 Card| Color/Graphic LCD| 3-Year Warranty
The Vertiv Liebert GXT5 uninterruptible power supply (UPS) protects critical equipment against outages and every type of power disturbance. This 3kVA online double conversion UPS offers continuous power conditioning in centralized and edge locations. With high power factor (0.9-1.0), it allows more connected loads saving space and costs. This tower/rack mount UPS has an optional Vertiv RDU101 communications card for remote monitoring to help you make more informed decisions and faster event resolution. With the free Vertiv Power Insight software, you can consolidate your view of up to 100 distributed UPS units providing simple notification of status and events in a single pane of glass. This 208V in/ 208V out single phase UPS has scalable runtime options with matching external battery cabinets to give extra runtime during an outage to support critical equipment. This battery backup is ENERGY STAR 2.0 certified and comes with an intuitive gravity sensing full-color LCD display.
More from the Manufacturer
More from the Manufacturer
- HIGH POWER FACTOR (0.9-1.0): More usable power allows more connected loads saving space and costs.
- REMOTE MANAGEMENT: Optional Vertiv RDU101 network communications card with advanced features.
- 3-YEAR WARRANTY: 3-year comprehensive coverage including battery with options for 2-year extension.
- ENERGY EFFICIENT (up to 95%): Energy Star 2.0 certified with high normal operating efficiency.
- EASY-TO-USE INTERFACE: Tower/rack mount design with gravity sensing graphical color display.
- Offers power supply with zero transfer time taken to the battery and proves ideal for voltage sensitive equipments
- 2700 W load capacity - backup power for your valuable electronics
- Up to 3 minute runtime on full load to preserve critical data from power shortage interruptions
- 3000 VA load capacity - work without any interruption during power outages
- Lead Acid battery chemistry to better suit your requirements with maximum productivity
- NEMA L6-20P plug/connector type for a secure, feasible operation
- NEMA L6-20R receptacle type offers maximum safety, convenience, and increased usability
- Single Phase phase for better usability and increased efficiency
- Double Conversion Online UPS with mission critical equipment application/usage to ensure maximum productivity with added feasibility
- 230 V AC input voltage for better reliance and maximum dependability
Product Specifications
-
Additional InformationPackage Type: Natrual corrugated with single color silk screen Dataline Protection: No
-
Application/UsageMission Critical Equipment
-
Backup/Run Time With External Battery Cabinet (Full Load)17 Minute
-
Backup/Run Time With External Battery Cabinet (Half Load)43.50 Minute
-
Battery ChemistryLead Acid
-
Brand NameLiebert
-
Bypass SwitchAutomatic & Manual Internal
-
Cord Length10 ft
-
Country of OriginChina
-
Emergency Power OFFYes
-
Environmental ComplianceRegistration, Evaluation, Authorization and Restriction of Chemicals (REACH) Restriction of Hazardous Substances (RoHS)
-
Environmental SensorsHumidity Sensor Leak Detection Sensor Temperature Sensor
-
Environmentally FriendlyYes
-
Form FactorRack/Tower
-
Hot SwappableYes
-
Input Frequency50 Hz
-
Input Voltage230 V AC
-
Limited Warranty3 Year
-
Load Capacity (VA)3000 VA
-
Load Capacity (Watt)2700 W
-
Manufacturer Part NumberGXT5-3KL620RT2UXL
-
Modem (RJ-11)No
-
Network (RJ-45)Yes
-
Number of External Battery Cabinets1
-
Output Voltage208 V AC
-
Package ContentsGXT5 3kVA 208V UPS 4 Post Fixed Rail Kit Tower Stand USB Cable Quick Start Guide Safety Instruction Manual
-
PhaseSingle Phase
-
Plug/Connector TypeNEMA L6-20P
-
Product NameGXT5 3kVA 208V UPS
-
Product SeriesGXT
-
Product TypeDouble Conversion Online UPS
-
Rack Height2U
-

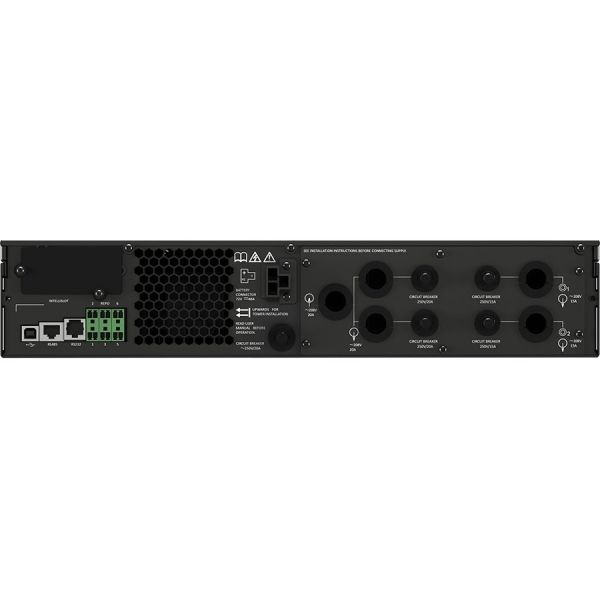

Receptacle Detail2 x NEMA L6-15R 2 x NEMA L6-20R
-
Receptacle TypeNEMA L6-15R NEMA L6-20R
-
Serial PortYes
-
Status IndicatorsLED/Full Color Graphic LCD
-
Transfer Time0 ns
-
USBYes
-
Utility (AC) Mode Overload>200% for 250ms 150-200% for 2 seconds 125-150% for 10 seconds 105-125% for 15 seconds
-
VGANo
-
Waveform TypePure Sine Wave
