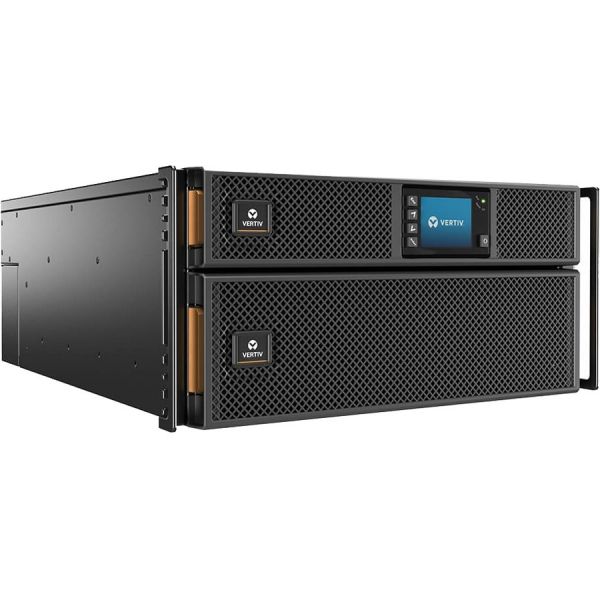

Vertiv Liebert GXT5 UPS - 5kVA/5kW/208 and 120V | Online Rack Tower Energy Star

Double Conversion| 4U | Built-in RDU101 Card | Color/Graphic LCD | 3-Year Warranty
Product Number: SYNX5631576
  • HIGH POWER FACTOR (0.9-1.0): More usable power allows more connected loads saving space and costs.
  • REMOTE MANAGEMENT: Optional Vertiv RDU101 network communications card with advanced features.
  • 3-YEAR WARRANTY: 3-year comprehensive coverage including battery with options for 2-year extension.
  • ENERGY EFFICIENT (up to 95%): Energy Star 2.0 certified with high normal operating efficiency.
More details
Sold Out

This product is sold out and we do not know when we will be getting another shipment. We apologize for any inconvenience this may cause.

Check similar items above to see if a replacement product is available.

Product Description

Vertiv Liebert GXT5 UPS - 5kVA/5kW/208 and 120V | Online Rack Tower Energy Star - The Vertiv Liebert GXT5 uninterruptible power supply (UPS) protects critical equipment against outages and every type of power disturbance. This 5kVA online double conversion UPS offers continuous power conditioning in centralized and edge locations. With high power factor (0.9-1.0), it allows more connected loads saving space and costs. This tower/rack mount UPS has a built-in Vertiv RDU101 communications card for remote monitoring to help you make more informed decisions and faster event resolution. With the free Vertiv Power Insight software, you can consolidate your view of up to 100 distributed UPS units providing simple notification of status and events in a single pane of glass. This 208V in/ 208 and 120V out single phase UPS has scalable runtime options with matching external battery cabinets to give extra runtime during an outage to support critical equipment. This battery backup is ENERGY STAR 2.0 certified and comes with an intuitive gravity sensing full-color LCD display.
More from the Manufacturer

  • HIGH POWER FACTOR (0.9-1.0): More usable power allows more connected loads saving space and costs.
  • REMOTE MANAGEMENT: Optional Vertiv RDU101 network communications card with advanced features.
  • 3-YEAR WARRANTY: 3-year comprehensive coverage including battery with options for 2-year extension.
  • ENERGY EFFICIENT (up to 95%): Energy Star 2.0 certified with high normal operating efficiency.
  • EASY-TO-USE INTERFACE: Tower/rack mount design with gravity sensing graphical color display.
  • Double Conversion Online UPS provides optimal and uninterrupted power supply for maximum usability
  • 5000 W load capacity - backup power for your valuable electronics
  • Keep your sensitive devices powered with a backup of up to 4.50 minute at full load
  • 5000 VA load capacity - work without any interruption during power outages
  • Replaceable battery for maximum feasibility and better usability
  • Lead Acid battery chemistry delivers energy to the it system through an easily controlled reaction
  • Terminal Block plug/connector type for convenient usage with added dependability
  • Hardwired receptacle type offers ease of operation with maximum efficiency
  • Single Phase phase for your convenience and optimal usage
  • Double Conversion Online UPS with it system application/usage to ensure maximum dependability and optimal performance
Guides & Information
Related Articles
 Need more information? Ask a Question
Read More

Product Specifications

  • Additional Information
    Package Type: Natrual corrugated with single color silk screen Dataline Protection: No
  • Application/Usage
    Data Center IT System Mission Critical Equipment
  • Backup/Run Time With External Battery Cabinet (Full Load)
    12.50 Minute
  • Backup/Run Time With External Battery Cabinet (Half Load)
    33 Minute
  • Battery Chemistry
    Lead Acid
  • Brand Name
    Liebert
  • Bypass Switch
    Automatic & Manual Internal Maintenance
  • Certifications & Standards
    Transportation: ISTA Procedure 1E Safety: UL1778, c-UL listed Emissions: FCC Part 15 (Class A) Surge Immunity: IEEE/ANSI C62.41 Category A & B
  • Country of Origin
    China
  • Depth
    25.6"
  • Emergency Power OFF
    Yes
  • Environmental Sensors
    Humidity Sensor Leak Detection Sensor Temperature Sensor
  • Environmentally Friendly
    Yes
  • Form Factor
    Rack/Tower
  • Height
    6.8"
  • Hot Swappable
    Yes
  • Input Frequency
    60 Hz
  • Input Voltage
    208 V AC
  • Limited Warranty
    3 Year
  • Load Capacity (VA)
    5000 VA
  • Load Capacity (Watt)
    5000 W
  • Manufacturer Part Number
    GXT5-5000MVRT4UXLN
  • Maximum Operating Elevation
    9842.52 ft
  • Maximum Operating Temperature
    104°F (40°C)
  • Modem (RJ-11)
    No
  • Network (RJ-45)
    Yes
  • Number of External Battery Cabinets
    1
  • Output Voltage
    120 V AC 208 V AC
  • Package Contents
    GXT5 5000VA 208/120V UPS 4 Post Fixed Rail Kit Tower Stand USB Cable Quick Start Guide Safety Instruction Manual
  • Phase
    Single Phase
  • Plug/Connector Type
    Terminal Block
  • Product Name
    GXT5 5000VA 208/120V UPS
  • Product Series
    GXT
  • Product Type
    Double Conversion Online UPS
  • Rack Height
    4U
  • Receptacle Type
    Hardwired
  • Replaceable Battery
    Yes
  • Serial Port
    Yes
  • Status Indicators
    LED/Full Color Graphic LCD
  • Storage Temperature
    5°F (-15°C) - 104°F (40°C)
  • Transfer Time
    0 ns
  • USB
    Yes
  • User Selectable Output
    208/120VAC
  • Utility (AC) Mode Overload
    105% to 125% for 5 minutes 125% to 150% for 60 seconds >150% (impact load) minimum 200 ms
  • VGA
    No
  • Waveform Type
    Pure Sine Wave
  • Width
    16.9"
