CyberPower BP144VL2U01 Extended Battery Modules

Product #: SYNX5588012
Sold Out

This product is sold out and we do not know when we will be getting another shipment. We apologize for any inconvenience this may cause.

Check similar items above to see if a replacement product is available.

Product Description

CyberPower BP144VL2U01 Extended Battery Modules
144 VDC / 55 A - 12 V / 9 Ah Sealed Lead-Acid Battery, 3YR Warranty

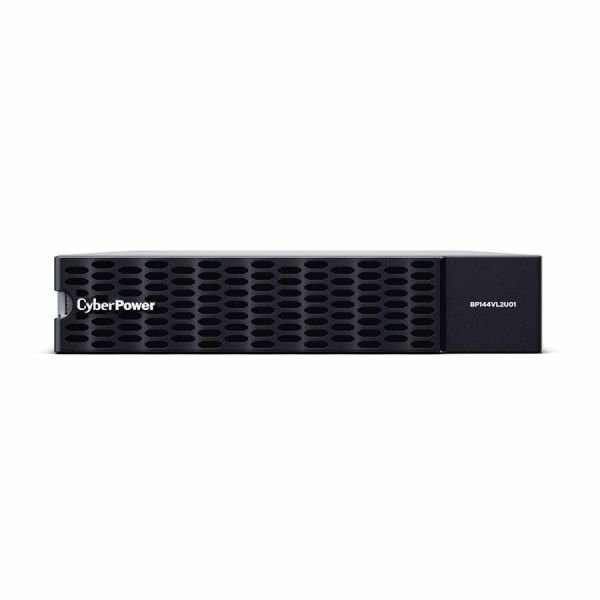

The CyberPower BP144VL2U01 rack/tower convertible Extended Battery Module (EBM) extends battery runtimes during power outages and is designed for CyberPower UPS systems OL5KRTHD and OL6KRTHD.
The BP144VL2U01 takes 2U of rack space and can be installed in a rack or tower configuration to match the UPS form factor. Battery equalization technology improves battery life, and toolless front panel removal makes battery replacement easier. This unit comes with a three-year warranty.
More from the Manufacturer
  • Typical recharge time (0-90%):
  • 4 hours
  • Battery type & quantity:
  • 12V/9AH (12)
  • Form factor:
  • Rack/Tower
  • Hot swappable:
  • Yes
  • Battery Equalization Technology:
  • Smart Battery Management:
  • Fast Charge Technology:
  • Warranty:
  • 3 year
  • It can be chained with multiple battery packs for extended run operation
  • Operates in any position without the need to add water
  • In terms of cost per watt hours, it is an inexpensive choice providing efficient power
  • Delivers constant 144 V DC to ensure that your UPS is ready to use when needed
CyberPower logo
Guides & Information
Related Articles
Need more information? Ask a Question

Product Specifications

  • Additional Information
    Amperage : 55 A DC Voltage : 144 VDC Battery Quantity : 12 Battery Size : 12 V / 9 Ah Battery Type : Sealed Lead-Acid Battery Built-in Charger : Yes Expansion Ready (Daisy-Chain) : Yes Field-serviceable Battery : Replaceable by qualified technician Hot Swappable : Yes Replacement Battery Cartridge : RB1290X6D Replacement Battery Cartridge Quantity : 2 Typical Recharge Time : 4 Hours (0% to 90% charged) User Replaceable Battery : No Physical Dimensions - (WxHxD) (cm) : 43.18 x 8.64 x 71.88 (cm) Physical Dimensions - (WxHxD) (in) : 17 x 3.4 x 28.3 (in) Physical Dimensions - (WxHxD) (mm) : 432 x 86 x 719 (mm) Weight (kg) : 43.91 Weight (lb) : 96.8 Shipping Dimensions - (WxHxD) (cm) : 59.06 x 20.32 x 109.86 (cm) Shipping - Dimensions (WxHxD, in) : 23.25 x 8.0 x 43.25 (in) Shipping - Dimensions (WxHxD, mm) : 590.55 x 203.2 x 1098.55 (mm) Shipping - Weight (kg) : 54.11 Shipping - Weight (lb) : 119.3 USB Charge Port : No Chassis Color : Unpainted Form Factor : Rack / Tower Front Panel Color : Black Material of Construction : Metal Mounting Hardware : Yes Operating Elevation : 0 - 10000 ft (0 - 3048 m) Operating Relative Humidity : 0 - 90 % (non-condensing) Operating Temperature : 32 - 104 °F (0 - 40 °C) Storage Elevation : 0 - 50000 ft (0 - 15239 m) Storage Relative Humidity : 0 - 95% (non-condensing) Storage Temperature : -4 - 113 °F (-20 - 45 °C) Models : OL5KRTHD, OL6KRTHD UPS Models : OL5KRTHD Environmental : RoHS Compliant Safety : UL1778 Extended Warranty Option : WEXT5YR-BP5 Product Warranty : 3 Year Limited Warranty
  • Battery Capacity
    9000 mAh
  • Battery Chemistry
    Lead Acid
  • Battery Size
    12V
  • Brand Name
    CyberPower
  • Certifications & Standards
    UL1778 5th Ed.
  • Compatibility
    CyberPower UPS Systems: OL5KRTHD OL6KRTHD
  • Country of Origin
    Taiwan
  • Depth
    28.3"
  • Environmental Compliance
    Restriction of Hazardous Substances (RoHS)
  • Environmentally Friendly
    Yes
  • Form Factor
    Tower/Rack Mountable
  • Height
    3.4"
  • Hot Swappable
    Yes
  • Limited Warranty
    3 Year
  • Manufacturer Part Number
    BP144VL2U01
  • Maximum Battery Recharge Time
    4 Hour
  • Maximum Operating Temperature
    104°F (40°C)
  • Output Voltage
    144 V DC
  • Package Contents
    BP144VL2U01 UPS Battery Pack Mounting Hardware
  • Product Color
    Black
  • Product Condition
    New
  • Product Model
    BP144VL2U01
  • Product Name
    BP144VL2U01 Extended Battery Modules
  • Product Series
    Extended Battery Modules
  • Product Type
    UPS Battery Pack
  • Width
    17"
