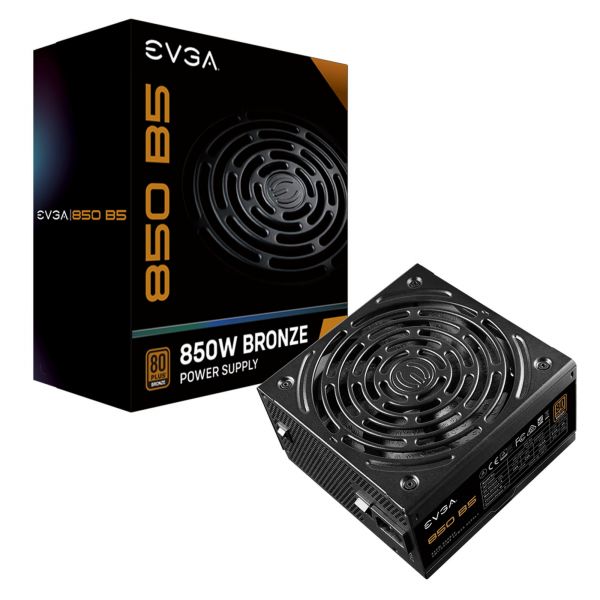

EVGA 850 B5 Power Supply

Internal - 120 V AC, 230 V AC Input - 850 W / 3.3 V DC, 5 V DC, 12 V DC, 12 V DC, 5 V DC - 1 Fan(s) - 85% Efficiency
Product Number: IGRM7HQ474
  • 80 PLUS Bronze certified, with 85% efficiency or higher under typical loads
  • Fully Modular to reduce clutter and improve airflow
  • EVGA ECO Intelligent Thermal Control System eliminates fan noise at low to medium loads
  • 5 Year Warranty and unparalleled EVGA Customer Support
More details
Sold Out

This product is sold out and we do not know when we will be getting another shipment. We apologize for any inconvenience this may cause.

Check similar items below to see if a replacement product is available.

Product Description

EVGA 850 B5 Power Supply - Introducing the EVGA B5 power supplies, the latest 80PLUS Certified Bronze power supplies to carry on the EVGA tradition of reliability, performance, and affordability. The B5 power supplies start with the most important standard for reliability - 100% Japanese Capacitors. Next, the B5 power supplies provide maximum flexibility by using a small chassis and a fully modular design. The ultra-quiet 135mm Fluid-Dynamic Bearing fan becomes silent when coupled with EVGA ECO mode to turn off the fan in medium to low loads. Last, but not least, the B5 power supplies have a full suite of protections and a 5-year limited warranty that you've come to know and expect from EVGA.

  • 80 PLUS Bronze certified, with 85% efficiency or higher under typical loads
  • Fully Modular to reduce clutter and improve airflow
  • EVGA ECO Intelligent Thermal Control System eliminates fan noise at low to medium loads
  • 5 Year Warranty and unparalleled EVGA Customer Support
  • Heavy-duty protections, including OVP (Over Voltage Protection), UVP (Under Voltage Protection), OCP (Over Current Protection), OPP (Over Power Protection), SCP (Short Circuit Protection), and OTP (Over Temperature Protection)
Related Articles
 Need more information? Ask a Question

Product Specifications

  • Brand Name
    EVGA
  • Country of Origin
    China
  • Depth
    5.9"
  • Efficiency
    85%
  • Environmental Certification
    80 Plus Bronze ErP Lot 3 RoHS WEEE
  • Environmentally Friendly
    Yes
  • Form Factor
    Internal
  • Height
    3.4"
  • Input Voltage
    120 V AC 230 V AC
  • Limited Warranty
    5 Year
  • Manufacturer Part Number
    220-B5-0850-V1
  • Modular
    Yes
  • Number of Fans
    1
  • Output Power
    850 W
  • Output Voltage
    - 12 V DC @ 500 mA 12 V DC @ 70.80 A 3.3 V DC @ 24 A 5 V DC @ 24 A 5 V DC @ 3 A
  • Product Model
    850 B5
  • Product Name
    850 B5 Power Supply
  • Product Series
    B5
  • Product Type
    Power Supply
  • Width
    5.9"
