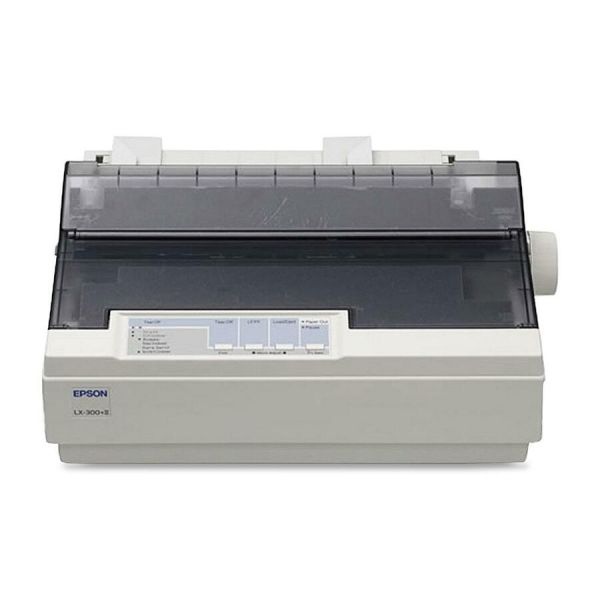

Epson LX-300+ 9-pin Dot Matrix Printer

Product Specifications

• Assembly Required
  No
• Brand Name
  Epson
• Carriage
  Narrow
• Certifications & Standards
  ECP IEEE 1284-compliant port
• Connector/Port/Interface
  Parallel Serial USB
• Country of Origin
  China
• Depth
  10.8"
• Emulations
  Epson ESC/P2 IBM 2380 Plus Epson ESC/P2 IBM 2380 Plus
• Frequency
  60 Hz
• Global Product Type
  Printers-Dot Matrix
• Height
  6.3"
• High Speed Draft Printing
  300 cps
• Input Buffer
  64 kB
• Input Voltage
  110 V AC
• LCD Display
  No
• Language Emulation
  Epson ESC/P2 IBM 2380 Plus
• Limited Warranty
  2 Year
• MTBF
  6000 Hour
• Manufacturer
  Epson Corporation
• Manufacturer Part Number
  C294001
• Manufacturer Website Address
  www.epson.com
• Marketing Information
  9-pin technology Dot Matrix printer prints up to 337 characters per second in 12 character-per-inch, high-speed draft mode. Features greater flexibility with serial, parallel and USB ports. Delivers an MTBF rating of 6,000 POH. Produces up to 400 million strokes per wire. Handles five-part forms with ease. Includes eight built-in bar code fonts so you can customize documents as needed. Works effectively in space-constrained environments using little counter space. Lightweight printer generates spreadsheets, mailing labels, and correspondence with clear, sharp text. At 49 dB, the LX-300+II is quieter than most impact printers. Printer has an 8K input buffer; USB, Parallel, Serial interfaces; and continuous feed of 88 milliseconds per 16" and 3" per second. Paper size ranges from 3.9" to 10.1".
• Maximum Form Parts
  5
• Maximum Mono Print Speed (cps)
  300
• Maximum Print Resolution (dpi)
  240 x 216
• Maximum Print Speed (Black)
  300.0 cps
• Media Handling
  Push Tractor Pull Tractor 1 x Cut Sheet Feeder - 3 Sheet Capacity
• Media Size
  Letter Legal Executive B5 A4
• Media Type
  Plain Paper Label Envelope Roll Paper Cut Sheet Continuous Form
• Model Name/Number
  LX-300+II
• Monthly Duty Cycle (Pages)
  6000
• Near Letter-Quality Printing Speed
  56 cps
• Network Capable
  No
• Network Ready
  No
• Number of Columns
  80
• Number of Pins
  9-pin 9
• Operating Power Consumption
  23 W
• Operating System Compatibility
  Windows® NT 4.0, 98, 2000, Me, XP
• PC Free Printing
  No
• Paper Feeder Type
  2 Feeder Trays
• Parallel Port
  Yes
• Platform Supported
  PC
• Post-Consumer Recycled Content Percent
  0%
• Post-consumer-waste%
  0%
• Power Source
  AC Supply
• Pre-Consumer Recycled Content Percent
  0%
• Printer Type
  Dot Matrix Dot Matrix Dot Matrix
• Printhead Life (Characters)
  4.0E+8
• Product Color
  White
• Product Model
  LX-300+
• Product Name
  LX-300+ Dot Matrix Printer
• Product Series
  LX
• Product Type
  Dot Matrix Printer
• Recycled
  No
• Serial Port
  Yes
• Shipping Dimensions
  8.50" Height x 14.25" Width x 17.50" Depth
• Standard Memory
  8 KB 64 kB
• System Requirements
  Microsoft DOS, Microsoft Windows 3.x/95/98, Microsoft Windows NT 3.51 or later
• Temperature
  41?F (5?C) to 95?F (35?C) Operating
• Total Recycled Content Percent
  0%
• Utility Printing Speed
  225 cps
• Weight (Approximate)
  9.70 lb
• Width
  14.4"
